ALX-HD16-30DS 30mm LED Indicator Light | Panel Mount

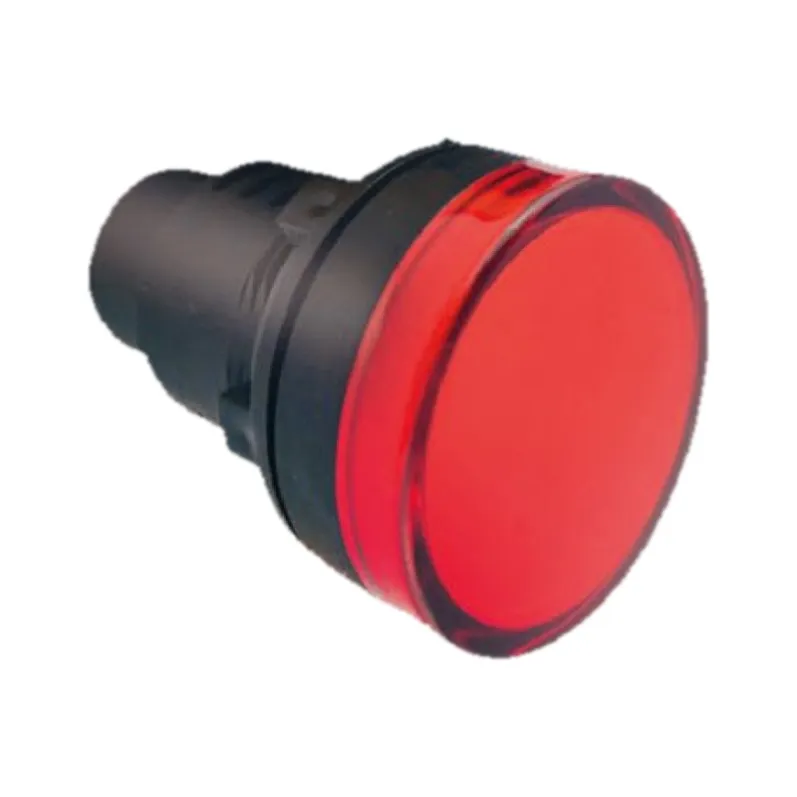

30 mm LED indicator light, 36 mm bezel, 21.6 mm body, 40 mm overall length. Red, green, yellow, blue or white lens, AC 110-380 V or AC/DC 6-220 V, screw terminals.
The HD16-30DS is the large-format lamp of the range: a 30 mm mounting hole and a 36 mm bezel, so the colour is legible from several metres away. It is the lamp used where the indication has to be read across a shop floor or from the far side of a machine, not just by the person at the panel.
Technical Specifications
Item | Specification |
Mounting hole | 30 mm |
Bezel diameter | 36 mm |
Body diameter | 21.6 mm |
Total length | 40 mm |
Bezel height | 15 mm |
Housing material | Plastic, black |
Lens | Translucent polycarbonate |
Light source | Integrated LED |
Rated voltage | AC 110-380 V, or AC/DC 6-220 V (two versions) |
Lens colours | Red, green, yellow, blue, white |
Max. panel thickness | 8 mm |
Termination | Screw terminals |
Mounting | Single round hole, nut and washer supplied |
The 30 mm hole is larger than the 22 mm standard, so this lamp is normally specified at the design stage rather than retrofitted. If you are replacing an existing 30 mm lamp, send us the panel drawing and we will confirm the bezel clears the surrounding hardware.
Design Features
- 36 mm bezel and a large lens area make the colour readable from a distance.
- Shortest body in the range at 40 mm, which keeps it usable in a shallow enclosure.
- One-piece sealed lens - no bulb to change, the lamp itself is the spare part.
- Screw terminals on the rear body for ring or fork lugs.
- Five lens colours so a single lamp type can carry the whole status scheme.
Model Options
Model | Type | Mounting hole | Bezel dia. | Body dia. | Total length | Bezel height |
HD16-16BS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-16DS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-22DS | LED indicator lamp | 22 mm | 30 mm | 20 mm | 45 mm | 15 mm |
HD16-22DH | LED indicator lamp | 22 mm | 30 mm | 20 mm | 46 mm | 15 mm |
HD16-30DS | LED indicator lamp | 30 mm | 36 mm | 21.6 mm | 40 mm | 15 mm |
HD16-22D/T | Test indicator lamp (push-to-test) | 22 mm | 29 mm | 20 mm | 49.5 mm | 13.5 mm |
HD16-22/RG | Double colour indicator lamp | 22 mm | 29 mm | 20 mm | 51.5 mm | 13.5 mm |
Order by model code, lens colour and voltage, for example "HD16-22DS, red, AC/DC 24 V". Colours can be mixed in one shipment - tell us the quantity per colour and we will quote against it. The same panel cut-out fits every lamp of the same mounting size, so a 16 mm lamp can be swapped for another 16 mm lamp without reworking the panel.
Applications
Shop-floor machine status towers and panels, large motor starters, overhead conveyor control, warehouse and loading-bay equipment, and any panel that is read from several metres away.
