ALX-HD16-22DS 22mm LED Indicator Light | 30mm Bezel

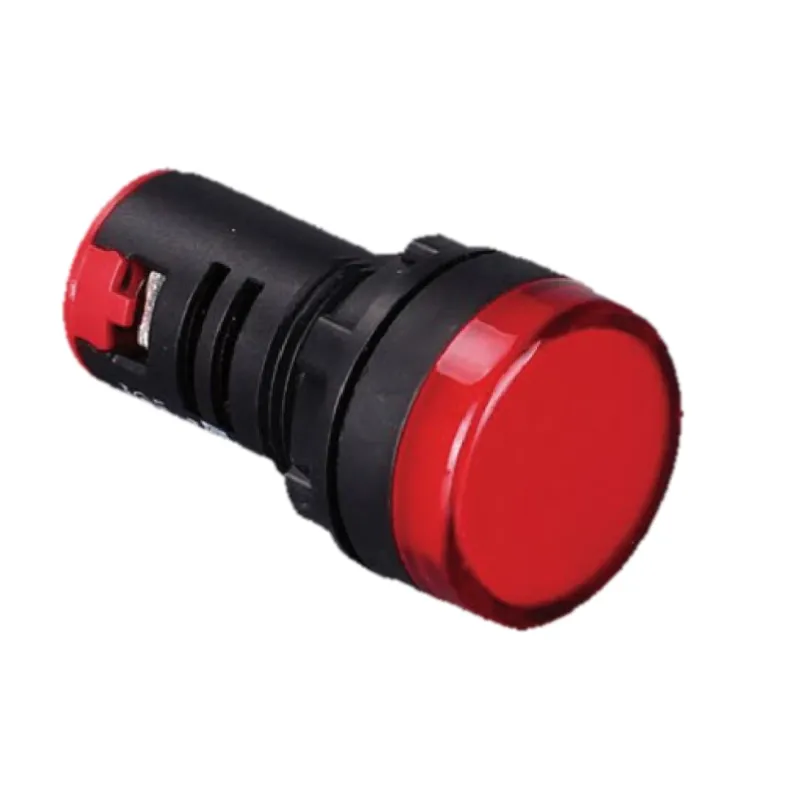

22 mm LED indicator light, 30 mm bezel, 20 mm body, 45 mm overall length. Red, green, yellow, blue or white lens, AC 110-380 V or AC/DC 6-220 V, screw terminals, 8 mm maximum panel thickness.
The HD16-22DS is the workhorse 22 mm indicator: it fits the same 22 mm hole as a standard push button, so a panel can carry buttons and lamps on one grid and one drill size. The 30 mm bezel gives a clear ring of colour at a distance, which is what you want on a cabinet door that is read from a walkway rather than from arm's length.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm |
Bezel diameter | 30 mm |
Body diameter | 20 mm |
Total length | 45 mm |
Bezel height | 15 mm |
Housing material | Plastic, black |
Lens | Translucent polycarbonate |
Light source | Integrated LED |
Rated voltage | AC 110-380 V, or AC/DC 6-220 V (two versions) |
Lens colours | Red, green, yellow, blue, white |
Max. panel thickness | 8 mm |
Termination | Screw terminals |
Mounting | Single round hole, nut and washer supplied |
The 22 mm hole is the same cut-out used by the HB4 push button range, so a lamp and a button can be laid out on one hole pattern. The lens is a single sealed moulding - there is no bulb to replace, the whole lamp is the service part.
Design Features
- 22 mm cut-out shared with standard push buttons, so one drill size covers the whole panel.
- 30 mm bezel reads clearly from a distance and gives a visible colour ring even in poor light.
- 45 mm overall length leaves room behind the plate for the nut and for wiring in a shallow enclosure.
- Screw terminals accept a fork lug, which speeds up panel wiring and makes re-termination easy.
- Five colours from one part family: red, green, yellow, blue and white.
Model Options
Model | Type | Mounting hole | Bezel dia. | Body dia. | Total length | Bezel height |
HD16-16BS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-16DS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-22DS | LED indicator lamp | 22 mm | 30 mm | 20 mm | 45 mm | 15 mm |
HD16-22DH | LED indicator lamp | 22 mm | 30 mm | 20 mm | 46 mm | 15 mm |
HD16-30DS | LED indicator lamp | 30 mm | 36 mm | 21.6 mm | 40 mm | 15 mm |
HD16-22D/T | Test indicator lamp (push-to-test) | 22 mm | 29 mm | 20 mm | 49.5 mm | 13.5 mm |
HD16-22/RG | Double colour indicator lamp | 22 mm | 29 mm | 20 mm | 51.5 mm | 13.5 mm |
Order by model code, lens colour and voltage, for example "HD16-22DS, red, AC/DC 24 V". Colours can be mixed in one shipment - tell us the quantity per colour and we will quote against it. The same panel cut-out fits every lamp of the same mounting size, so a 16 mm lamp can be swapped for another 16 mm lamp without reworking the panel.
Applications
Machine control cabinets, pump and compressor starters, HVAC panels, conveyor and packaging lines, switchgear doors and generator control panels - anywhere a 22 mm button grid already exists and a status lamp has to join it.
