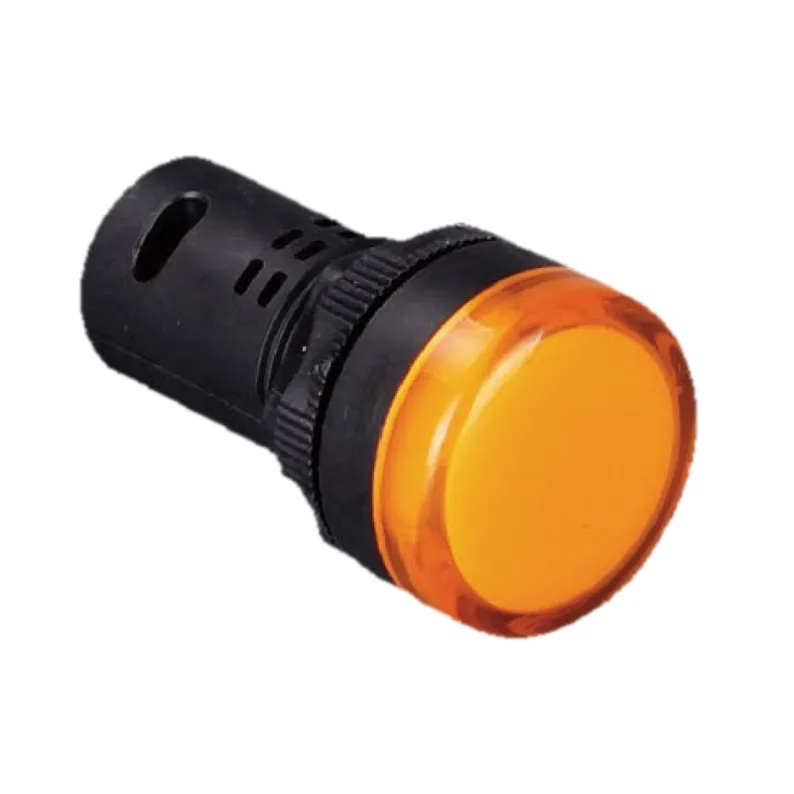

ALX-HD16-22DH 22mm High Profile Indicator Lamp | 46mm Long
22 mm high profile indicator lamp, 30 mm bezel, 20 mm body, 46 mm overall length, 15 mm bezel height. Amber, red, green, blue or white lens, AC 110-380 V or AC/DC 6-220 V.
The HD16-22DH is the taller of the two 22 mm lamps: the same 22 mm hole and 30 mm bezel as the 22DS, but with a lens that stands further proud of the panel. That extra height is what you want when the lamp sits on a sloped or recessed door, or when the operator looks along the face of the cabinet instead of straight at it.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm |
Bezel diameter | 30 mm |
Body diameter | 20 mm |
Total length | 46 mm |
Bezel height | 15 mm |
Housing material | Plastic, black |
Lens | Translucent polycarbonate |
Light source | Integrated LED |
Rated voltage | AC 110-380 V, or AC/DC 6-220 V (two versions) |
Lens colours | Red, green, yellow, blue, white |
Max. panel thickness | 8 mm |
Termination | Screw terminals |
Mounting | Single round hole, nut and washer supplied |
Fits the same 22 mm cut-out as the 22DS, so the two can be interchanged on an existing panel without redrilling. Choose the DH where the lens has to clear a recess or be seen from a shallow angle.
Design Features
- Lens stands further out than the flat 22DS, so it stays visible on recessed or angled doors.
- Same 22 mm cut-out as the 22DS and the HB4 button range - one hole pattern for the whole panel.
- Ribbed bezel gives a grip for hand tightening and a defined edge against the panel.
- Sealed one-piece lens and body: no bulb, no socket, no separate lens to lose.
- Five lens colours, with the amber version the usual choice for warning and "attention" states.
Model Options
Model | Type | Mounting hole | Bezel dia. | Body dia. | Total length | Bezel height |
HD16-16BS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-16DS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-22DS | LED indicator lamp | 22 mm | 30 mm | 20 mm | 45 mm | 15 mm |
HD16-22DH | LED indicator lamp | 22 mm | 30 mm | 20 mm | 46 mm | 15 mm |
HD16-30DS | LED indicator lamp | 30 mm | 36 mm | 21.6 mm | 40 mm | 15 mm |
HD16-22D/T | Test indicator lamp (push-to-test) | 22 mm | 29 mm | 20 mm | 49.5 mm | 13.5 mm |
HD16-22/RG | Double colour indicator lamp | 22 mm | 29 mm | 20 mm | 51.5 mm | 13.5 mm |
Order by model code, lens colour and voltage, for example "HD16-22DS, red, AC/DC 24 V". Colours can be mixed in one shipment - tell us the quantity per colour and we will quote against it. The same panel cut-out fits every lamp of the same mounting size, so a 16 mm lamp can be swapped for another 16 mm lamp without reworking the panel.
Applications
Recessed cabinet doors, sloped operator consoles, machines read from a walkway, outdoor enclosure fronts where the lamp has to clear a drip lip, and retrofit work where a flat lens is hard to see.
