ALX-HD16-16DS 16mm Panel Mount Indicator Lamp | 18mm Bezel

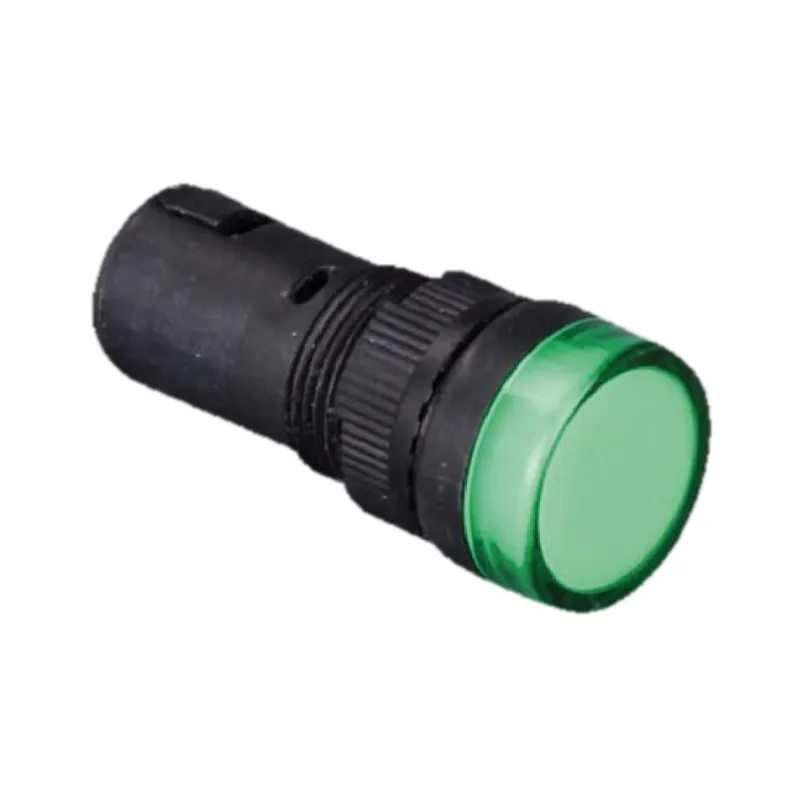

16 mm panel mount indicator lamp, 18 mm bezel, 14.1 mm body, 32.5 mm overall length. LED light source, five lens colours, AC 110-380 V or AC/DC 6-220 V, screw terminals.
The HD16-16DS uses the same 16 mm cut-out and the same 18 mm bezel as the rest of the 16 mm family, which makes it the drop-in replacement when a panel built around a 16 mm lamp has to be re-lamped without drilling. Fit it from the front, tighten the nut from behind, wire the two screw terminals and the indicator is done.
Technical Specifications
Item | Specification |
Mounting hole | 16 mm |
Bezel diameter | 18 mm |
Body diameter | 14.1 mm |
Total length | 32.5 mm |
Bezel height | 9.5 mm |
Housing material | Plastic, black |
Lens | Translucent polycarbonate |
Light source | Integrated LED |
Rated voltage | AC 110-380 V, or AC/DC 6-220 V (two versions) |
Lens colours | Red, green, yellow, blue, white |
Max. panel thickness | 8 mm |
Termination | Screw terminals |
Mounting | Single round hole, nut and washer supplied |
Because the body is only 14.1 mm across, the lamp clears a 16 mm hole with room for the nut and washer on plates down to thin sheet. If your panel is deeper than 8 mm at the hole, tell us before ordering so we can check the thread length.
Design Features
- Standard 16 mm cut-out: a straight swap for an existing 16 mm lamp, no panel rework.
- Rear nut clamps against the panel, so the lamp stays put under vibration instead of relying on a push fit.
- LED element draws a fraction of the current of a filament lamp, which matters on 24 V control circuits fed from a small supply.
- Sealed lens and body are one part - there is no separate bulb to change or lose.
- Lens colours can be mixed on one order to build a colour-coded panel from a single part number family.
Model Options
Model | Type | Mounting hole | Bezel dia. | Body dia. | Total length | Bezel height |
HD16-16BS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-16DS | LED indicator lamp | 16 mm | 18 mm | 14.1 mm | 32.5 mm | 9.5 mm |
HD16-22DS | LED indicator lamp | 22 mm | 30 mm | 20 mm | 45 mm | 15 mm |
HD16-22DH | LED indicator lamp | 22 mm | 30 mm | 20 mm | 46 mm | 15 mm |
HD16-30DS | LED indicator lamp | 30 mm | 36 mm | 21.6 mm | 40 mm | 15 mm |
HD16-22D/T | Test indicator lamp (push-to-test) | 22 mm | 29 mm | 20 mm | 49.5 mm | 13.5 mm |
HD16-22/RG | Double colour indicator lamp | 22 mm | 29 mm | 20 mm | 51.5 mm | 13.5 mm |
Order by model code, lens colour and voltage, for example "HD16-22DS, red, AC/DC 24 V". Colours can be mixed in one shipment - tell us the quantity per colour and we will quote against it. The same panel cut-out fits every lamp of the same mounting size, so a 16 mm lamp can be swapped for another 16 mm lamp without reworking the panel.
Applications
Re-lamping existing 16 mm panels, small machine tools, laboratory and test equipment, gate and door control boxes, and low-voltage control panels built to a compact layout.
