16A 230V IEC 60309 Extension Cord IP44
16 A 230 V IEC 60309 extension cord, 2P+E, IP44 for site power and machinery. Custom lengths, jacket colours and private-label printing.
The 16A IEC 60309 extension cord is a configurable industrial power connection solution for electrical distributors, contractors, generator dealers, MRO suppliers and engineering projects. It is intended for 230V-class temporary and industrial power applications using a blue 2P+E IEC 60309 plug and connector configuration. Cable construction, length and final compliance documentation are confirmed for each project before production.
Key Features
- 16A, 230V-class industrial extension cord configuration

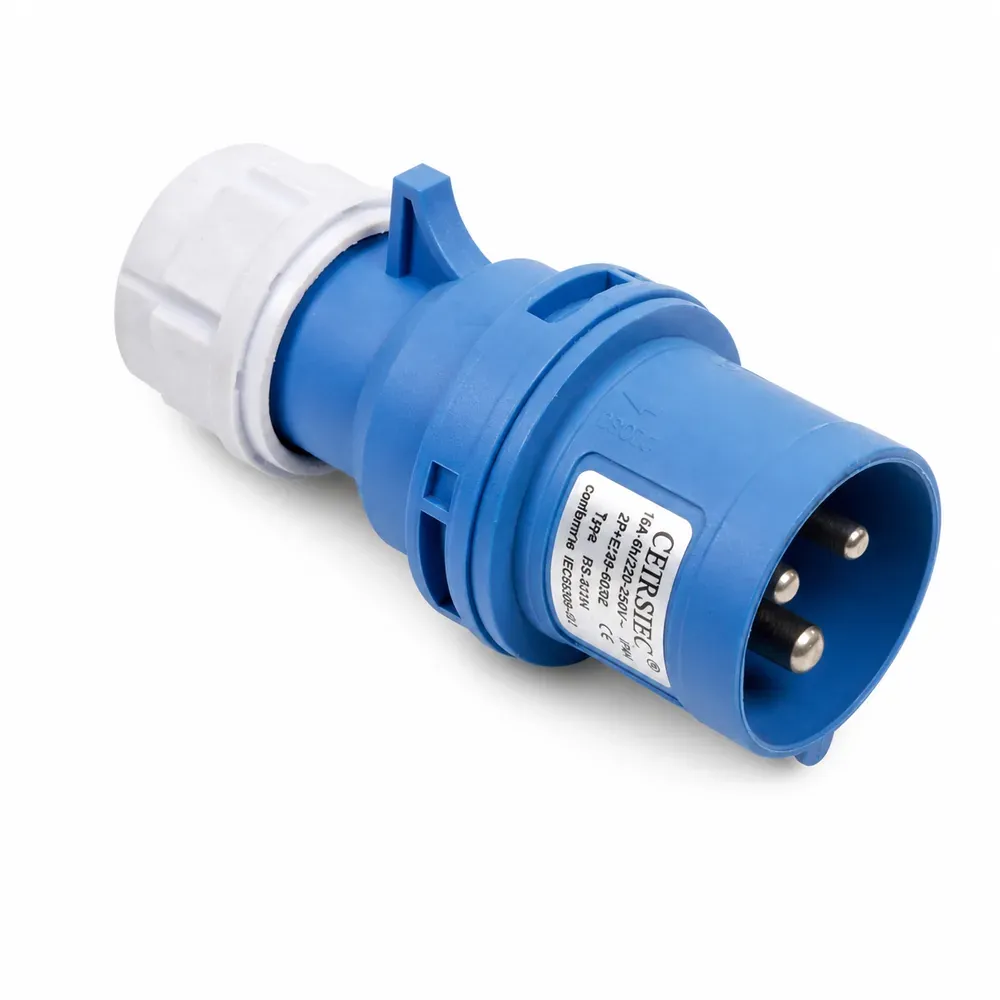

- Blue IEC 60309 plug and connector arrangement with 2P+E contacts
- IP44 component option for protected industrial and outdoor connection points
- Configurable cable construction and cable length
- OEM/ODM support for cable color, labeling and packaging
- Suitable for trial evaluation, distribution programs and project-based sourcing
Applications
This industrial extension cable can be evaluated for construction sites, workshops, warehouses, generators, industrial maintenance, temporary power distribution, campsites, marinas and solar installation projects. The selected configuration must match the equipment inlet, supply voltage, installation environment and destination-market requirements.
Technical Specifications
Item | Proposed Configuration |
|---|---|
Product type | IEC 60309 industrial extension cord |
Nominal current | 16A |
Nominal system voltage | 230V class |
Poles | 2P+E |
Connector color | Blue industrial configuration |
Component series rating | AC 250V-rated plug and connector series |
Ingress protection | IP44 component option; complete assembly performance to be confirmed |
Cable construction | Available according to the confirmed project configuration |
Cable length | Available according to the confirmed project configuration |
Available Configurations
The plug, connector, cable and finished cord set must be specified as one matched assembly. Buyers should confirm the equipment connection, 16A current requirement, 230V-class supply, 2P+E arrangement, environmental exposure and destination market before ordering.
Cable and Length Options
H05VV-F, H05RR-F and H07RN-F are candidate cable families for project evaluation. Final cable type, conductor size and jacket requirements depend on the intended environment, cord length and applicable market requirements. Lengths such as 5 m, 10 m, 20 m, 30 m and custom lengths can be evaluated according to the confirmed project configuration.
OEM and ODM Support
- Custom cable length and cable color evaluation
- Private-label product marking and packaging
- Regional plug, connector and equipment-side configuration review
- Small-batch evaluation subject to confirmed production requirements
- Consolidated sourcing with related industrial power products
Quality Inspection
Inspection requirements can be defined according to the final product configuration. The agreed inspection plan may cover appearance, cable length, wiring continuity, polarity, insulation and electrical function. Required test items and acceptance criteria should be confirmed before production.
Compliance
Compliance documentation can be evaluated according to the selected product configuration and destination market.
FAQ
What equipment can this extension cord connect?
It is intended for equipment using a compatible blue 16A, 2P+E IEC 60309 connection. The equipment inlet and power source should be checked before quotation.
How should I choose the cable type?
Selection depends on indoor or outdoor use, flexibility, mechanical exposure and local requirements. Share the installation environment so ALUX can evaluate the cable family with you.
Are 05VV-F, 05RR-F and 07RN-F all available?
They are candidate cable families. Availability and the correct conductor size are confirmed for the selected project configuration.
Can I order a custom cable length?
Standard and custom lengths can be evaluated. Please provide the required length, quantity and application.
Does IP44 apply to the complete cord set?
IP44 is currently referenced as a component option. Complete assembly performance and any required testing must be confirmed for the ordered configuration.
Is the complete cord set certified?
Certification cannot be assumed from an IEC 60309 component description. Compliance documentation is evaluated for the selected cord set and destination market.
What information is required for a quotation?
Please send the current, voltage, pole arrangement, required ingress protection, cable type, conductor size if specified, length, quantity, destination market, labeling and packaging requirements.
Related Industrial Power Products
- IEC 60309 industrial plugs and connectors
- IP67 industrial extension cords
- Industrial cable reels
- Generator and temporary power adapter cords
Request a Quote
Send ALUX Electric your required voltage, current, 2P+E connection, IP requirement, cable type, cable length, order quantity and destination market. We will review the configuration and prepare a project-based quotation.
Typical Applications
Where 16A 230V IEC 60309 Industrial Extension Cord, 2P+E, IP44 is commonly specified:
- Industrial machinery and plant power connection
- Generator sets and temporary power distribution
- Stage, event and exhibition power systems
- Construction sites and mobile equipment
- Marinas, campsites and outdoor industrial sites
Sourcing Notes
- MOQ and lead time are confirmed per configuration and order quantity.
- Samples can be arranged for evaluation before volume orders.
- Technical datasheets and dimensional drawings are provided per configuration.
- Mixed models can be combined in one container; packing lists and carton marking are prepared per line item.
OEM / Private Label
- Private-label housing colour, moulding and marking for volume orders.
- Retail packaging, hang tags, labels and barcodes produced to your artwork.
- Cable length, connector configuration and jacket colour configurable per programme.
- Documentation and marking prepared for the destination market.
FAQ
Q: How do I select the correct pin configuration and current rating?
Selection is based on the required current rating, number of poles and the operating voltage/frequency, which determine the colour code and keyway position of IEC 60309 devices.
Q: Is the rated IP protection suitable for outdoor use?
The IP rating stated on this page applies when the plug and socket or inlet are fully mated. Separate protection is required for unmated connectors outdoors.
Q: Can housings and colour be customised for OEM orders?
Housing colour, cable length, gland type and branding are configurable for volume and private-label programmes.
Related reading: How to specify IEC 60309 plugs and extension leads · Why industrial plugs burn out.
Send target quantity, destination market, required ratings and packaging requirement to request a quotation.
