How to Specify IEC 60309 Plugs & Extension Leads for B2B Buyers

A practical B2B guide to specifying IEC 60309 plugs and extension leads by current, voltage, pole configuration, clock position, IP rating, cable type and length before requesting a quote.

How to Specify IEC 60309 Plugs and Extension Leads: A Sourcing Guide for Electrical Distributors

Choosing an IEC 60309 plug, socket, or extension lead requires more than selecting a 16A or 32A current rating. B2B buyers should also verify the rated voltage, pole configuration, clock position, IP rating, cable specification, cable length, and target application before submitting a Request for Quotation (RFQ).

For electrical distributors, industrial equipment suppliers, importers, and OEM buyers, defining these parameters correctly helps prevent component incompatibility, reduces sample revision cycles, and speeds up sourcing.

This guide explains how to specify IEC 60309 industrial power connections, including 16A vs 32A, pole configurations, IP44 vs IP67, cable selection, and RFQ requirements.

Quick Summary for Procurement Managers: A complete IEC 60309 RFQ should include: Rated Current + Voltage + Pole Configuration + Clock Position + IP Rating + Connector Type. For extension leads, also specify the cable type, conductor size, and cable length.

Key Takeaways for IEC 60309 Buyers

Do not rely on connector color alone. Voltage, pole count, clock position, and connector configuration determine compatibility.

Choose IP44 or IP67 according to the actual operating environment, not simply whether the product is used indoors or outdoors.

For complete extension leads, specify both the connector configuration and cable construction.

For OEM projects, confirm the exact product specification before sample approval and bulk production.

What Information Should Buyers Provide Before Requesting an RFQ?

Requesting only a generic "32A IEC 60309 plug" usually leads to additional clarification.

Products with the same current rating may differ in voltage, pole arrangement, earthing position, IP rating, and physical configuration.

RFQ Specification	What to Provide	Example
Rated Current	Required current	16A / 32A
Rated Voltage	Operating voltage	230V / 400V
Pole Configuration	Pole and earth arrangement	2P+E / 3P+E / 3P+N+E
Clock Position	Keying / earth position	6h
IP Rating	Required ingress protection	IP44 / IP67
Product Format	Plug, socket, connector, extension lead	Extension Lead
Cable Type	Required cable construction	H07RN-F where applicable
Conductor Size	Cross-sectional area	According to application
Cable Length	Required length	5 m / 10 m / 25 m
Target Market	Country or region	Europe / Middle East
OEM Requirements	Logo, label, packaging	Private Label

Providing these details allows suppliers to match the correct configuration and makes quotations easier to compare.

For a representative 32A configuration, view the 32A 230V IEC 60309 Industrial Plug.

Step 1: Select the Correct Current Rating — 16A vs 32A

16A and 32A IEC 60309 connectors are two common product groups for industrial and commercial distribution.

16A IEC 60309

16A configurations are commonly used for industrial equipment, workshops, portable power applications, and temporary power systems.

Typical product formats include:

16A industrial plugs

16A sockets and connectors

16A extension leads

For buyers sourcing a complete cable assembly, see the 16A 230V IEC 60309 Extension Cord.

32A IEC 60309

32A configurations are used where the electrical system requires a higher current rating.

Typical formats include:

32A industrial plugs

32A industrial sockets

32A extension leads

Wall- or panel-mounted products

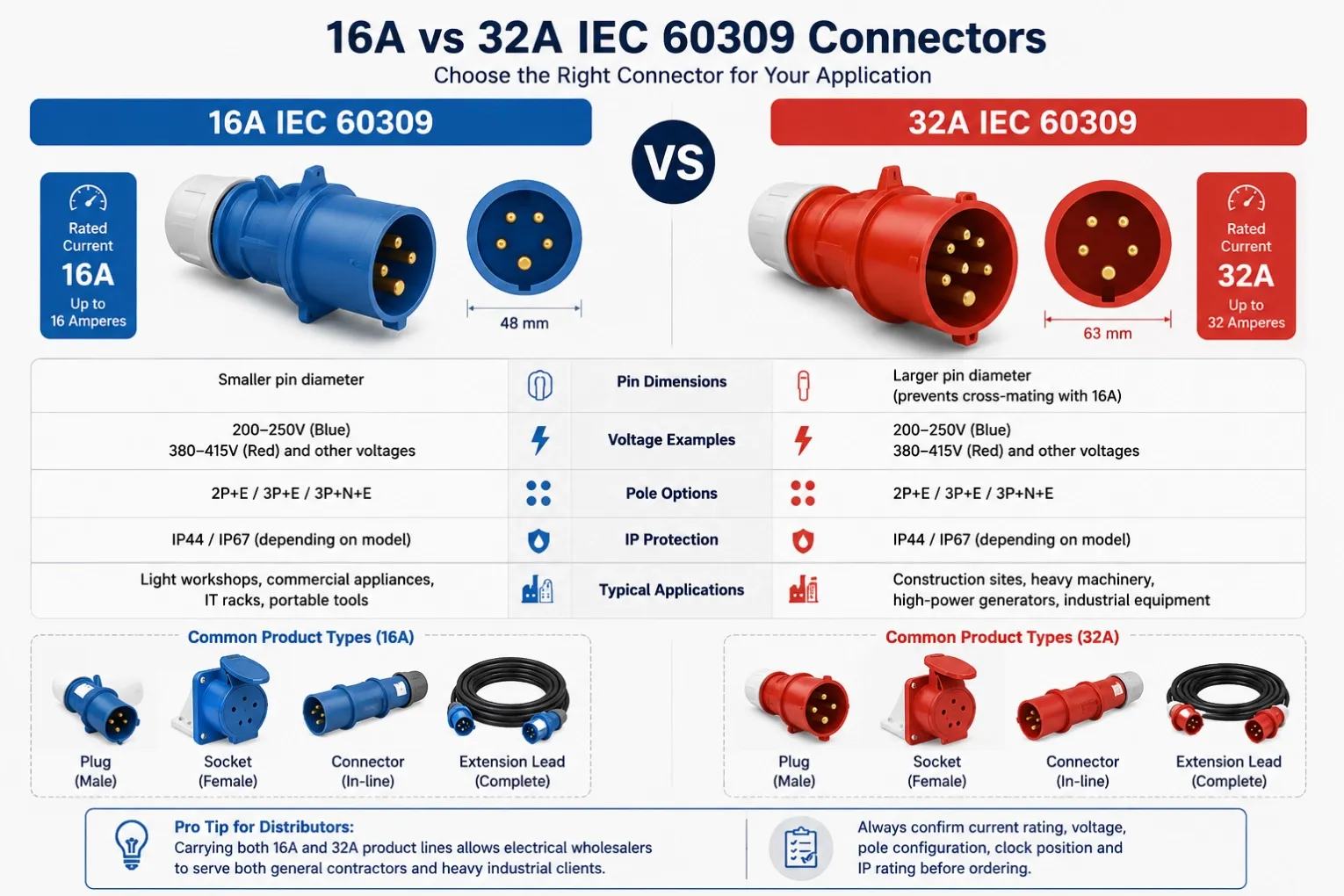

16A vs 32A Comparison

Feature	16A IEC 60309	32A IEC 60309
Rated Current	16A	32A
Plug / Socket Options	Available	Available
Extension Leads	Available	Available
Pole Configurations	Depends on system	Depends on system
IP Options	Depends on configuration	Depends on configuration
Cable Size	Selected according to application	Selected according to application

Distributor Tip: Carrying both 16A and 32A product families can help wholesalers serve a wider range of industrial customers.

Step 2: Confirm Rated Voltage and Clock Position

Current and voltage must be specified together.

A request for a "32A plug" is incomplete without defining the voltage, pole configuration, and clock position.

A better specification would be:

32A 230V 2P+E 6h IP44

IEC 60309 uses mechanical keying and clock positions, such as 6h, to help prevent incompatible connections.

Housing color can help identify the product family, but color alone should not be used as the purchasing specification.

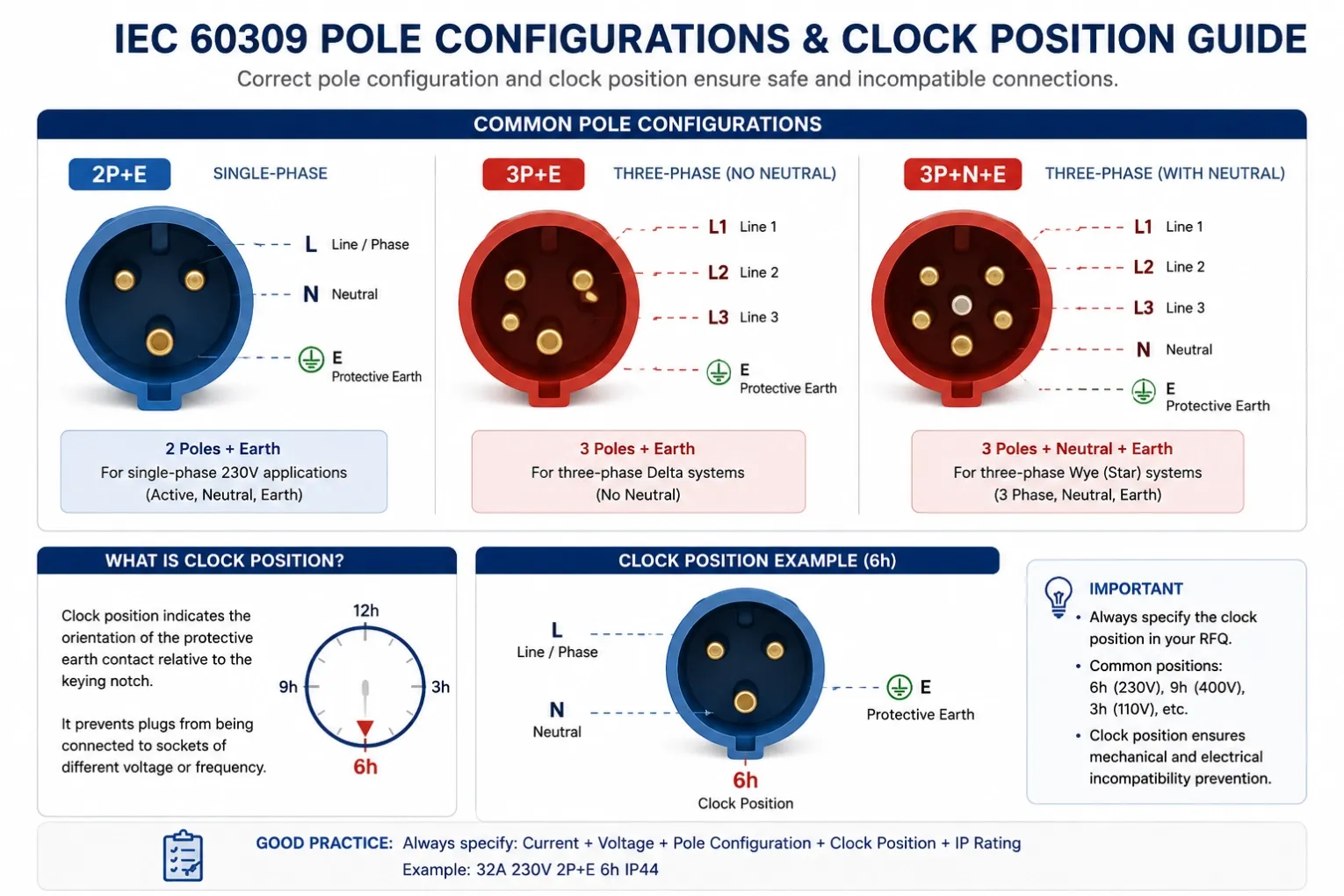

Step 3: Define the Pole Configuration

Common IEC 60309 pole configurations include:

2P+E

Two current-carrying poles plus protective earth.

3P+E

Three current-carrying poles plus protective earth.

For a real product example, see the 16A 400V 3P+E IEC 60309 Industrial Plug, IP44.

3P+N+E

Three current-carrying poles, neutral, and protective earth.

The required configuration depends on the electrical system and connected equipment.

Insert Image:

Step 4: Choose IP44 or IP67

The required IP rating depends on the operating environment.

IP44

IP44 configurations may be suitable where protection against splashing water and solid objects is required.

IP67

IP67 configurations provide a higher level of ingress protection and may be selected for more demanding wet, dusty, or industrial environments.

The correct question is not:

"Is IP67 better than IP44?"

Instead ask:

What level of environmental protection does the actual application require?

Step 5: Plug, Socket, or Complete Extension Lead?

IEC 60309 products can be purchased as individual components or complete cable assemblies.

A complete extension lead consists of:

Plug + Cable + Connector

For a complete extension-lead RFQ, specify:

Plug configuration

Connector configuration

Cable type

Conductor size

Cable length

Target market

For a complete cable example, view the 16A 230V IEC 60309 Extension Cord.

Buyers comparing related components can also browse the Industrial Plugs & Sockets range.

OEM and Private-Label Options

For distributors and OEM brands, customization may include:

Cable length

Cable specification

Connector combination

Product color

Logo

Product labels

Barcode

Packaging

Carton markings

Electrical changes should be reviewed separately from branding changes.

For repeat-order programs, an approved sample and confirmed product specification provide a stable reference for future purchasing.

IEC 60309 RFQ Checklist

Before requesting a quotation, prepare:

Rated current

Rated voltage

Pole configuration

Clock position

IP rating

Plug type

Socket or connector type

Cable type

Conductor size

Cable length

Target market

Required documentation

Order quantity

OEM or packaging requirements

This information helps the supplier provide a more accurate quotation and reduces repeated technical clarification.

FAQ

What information is required to specify an IEC 60309 plug?

At minimum, provide the rated current, voltage, pole configuration, clock position, IP rating, and connector type.

What is the difference between 16A and 32A IEC 60309 products?

The main difference is current rating, but voltage, pole configuration, clock position, IP level, and electrical-system requirements must also match.

What does 2P+E mean?

2P+E means two current-carrying poles plus protective earth.

What is the difference between IP44 and IP67?

They provide different levels of ingress protection. The correct option depends on the actual operating environment.

What should be specified for an IEC 60309 extension lead?

Specify the plug, connector, cable type, conductor size, cable length, current, voltage, poles, clock position, and IP rating.
