150A–400A Single Pole Cam-Lock Power Connector | ALUX
Heavy-duty 150A–400A single pole power connector for temporary power distribution, generators, stage lighting and industrial equipment. Male and female connectors are available in multiple colors, with high-current copper alloy contacts and OEM options.
150A–400A Single Pole Cam-Lock Power Connector
The ALUX Single Pole Cam-Lock Power Connector is designed for high-current temporary and industrial power distribution applications.
Available in 150A, 200A and 400A configurations, the connector provides a quick and reliable connection for generators, power distribution equipment, stage and event power systems, industrial machinery and heavy-duty cable assemblies.
Male and female connectors, panel-mounted receptacles and multiple identification colors are available for different power distribution requirements.
Key Features
- High-current single pole power connection
- 150A, 200A and 400A options available
- Male and female connector configurations
- High-conductivity copper alloy contact
- Quick connect and disconnect design
- Secure cam-lock connection
- Durable insulated housing
- Flame-retardant insulation design
- Multiple housing colors available
- Clear cable size markings for installation
- Suitable for repeated connection and disconnection
- OEM logo, color and packaging available
400A Technical Specifications
Parameter | Specification |
|---|---|
Product Type | Single Pole Cam-Lock Power Connector |
Rated Current | Max. 400A |
Rated Voltage | Max. 600V AC / 250V DC |
Connector Type | Male / Female |
Applicable Cable Size | 50–95 mm² |
Contact Material | Copper Alloy |
Housing | High-Insulation Synthetic Material |
Operating Temperature | -40°C to +90°C |
Connection | Cam-Lock Quick Connection |
Wiring Method | Screw Fixation |
Mating Cycles | ≥5,000 |
Available Colors | Black / Red / Blue / Green / Yellow |
OEM / ODM | Available |

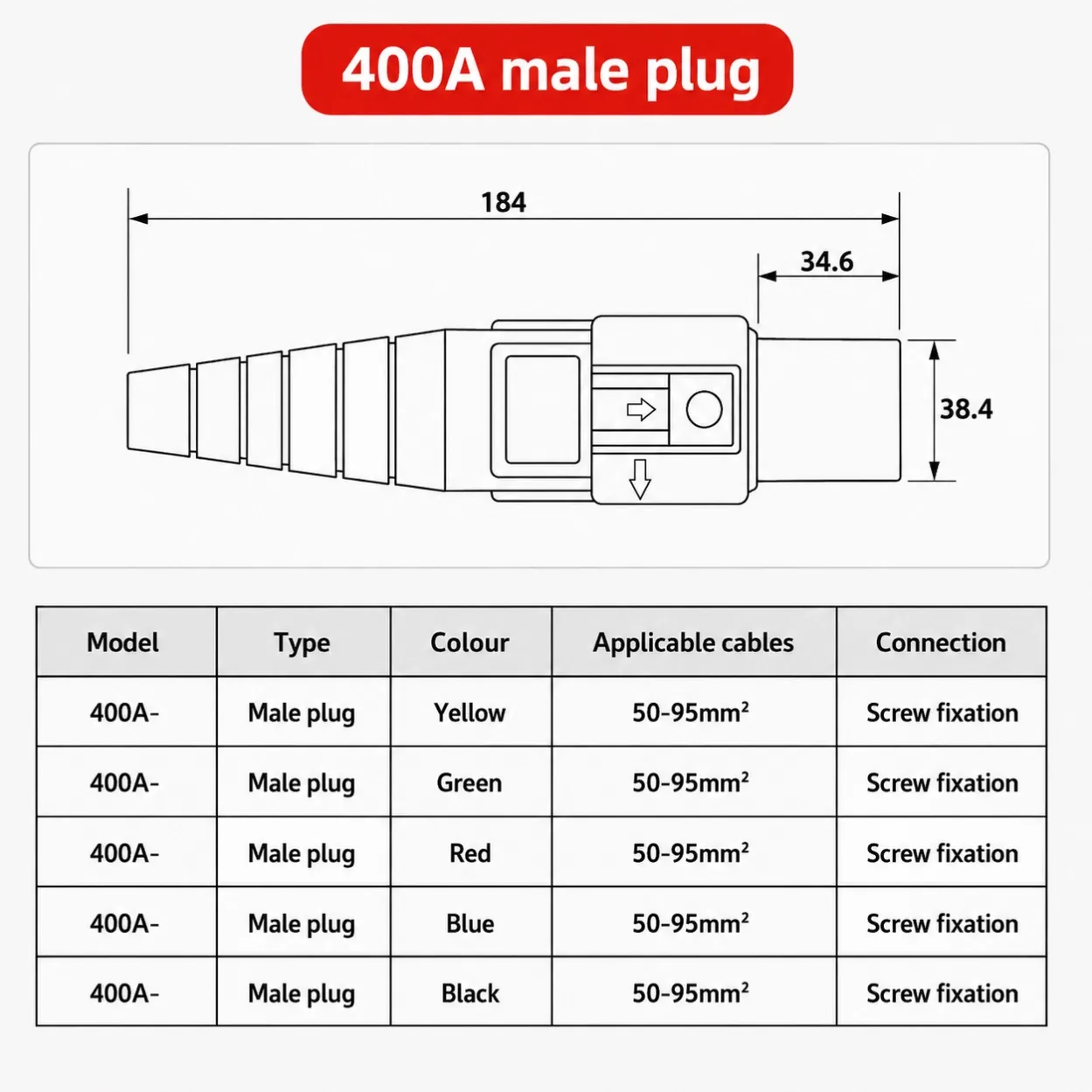

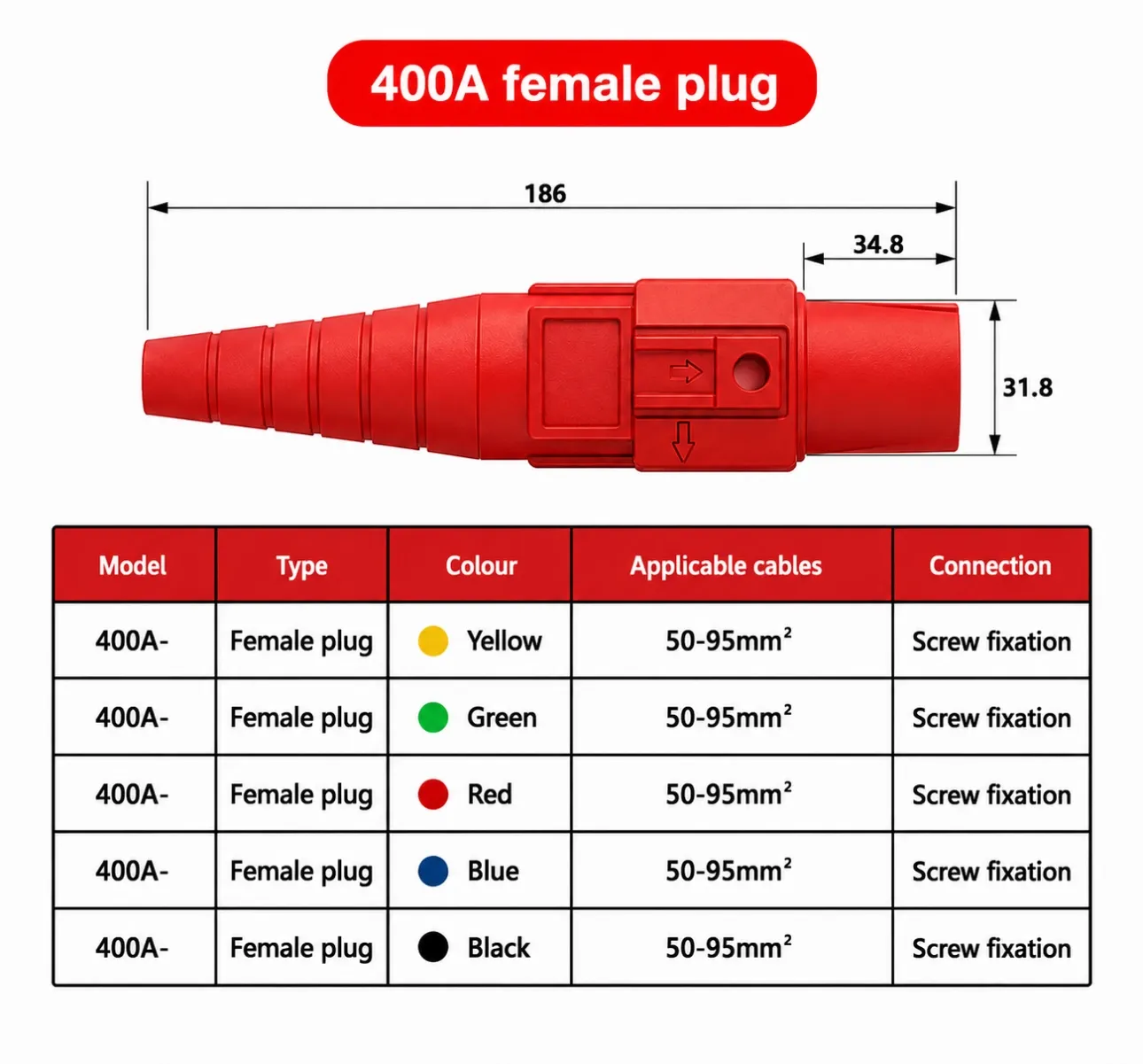

Available 400A Models
Model | Type | Color | Cable Cross-Section | Wiring Method |
|---|---|---|---|---|
ALX-400MT-Y | Male / Female Connector | Yellow | 50–95 mm² | Screw Fixation |
ALX-400MT-G | Male / Female Connector | Green | 50–95 mm² | Screw Fixation |
ALX-400MT-R | Male / Female Connector | Red | 50–95 mm² | Screw Fixation |
ALX-400MT-B | Male / Female Connector | Blue | 50–95 mm² | Screw Fixation |
ALX-400MT-BH | Male / Female Connector | Black | 50–95 mm² | Screw Fixation |

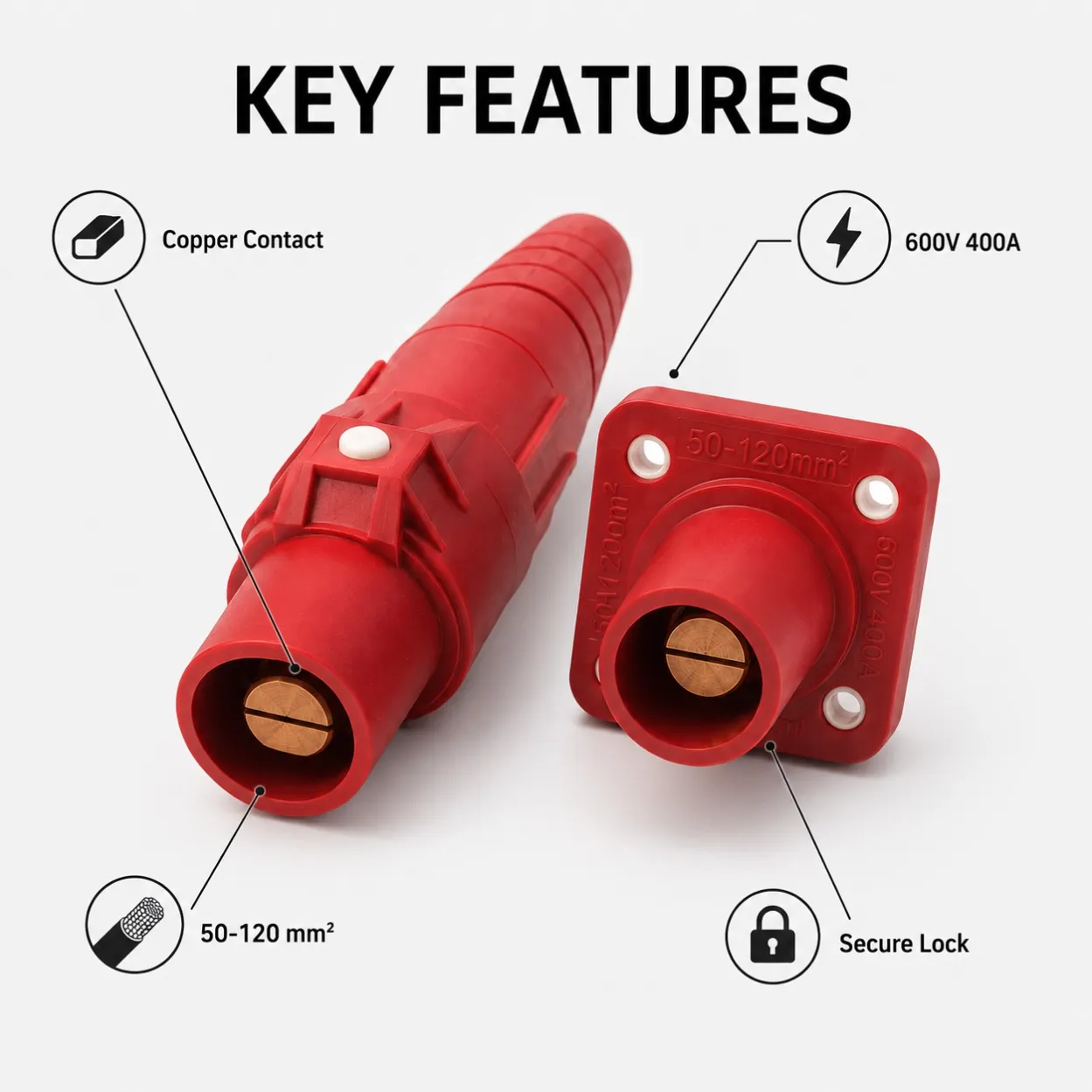

High-Current Copper Alloy Contact
The internal copper alloy contact is designed for high-current power transmission with low connection resistance.
The cam-lock structure provides secure mechanical engagement between mating connectors while allowing fast connection and disconnection in temporary and mobile power applications.
This makes the connector suitable for power systems that require frequent installation, relocation or maintenance.

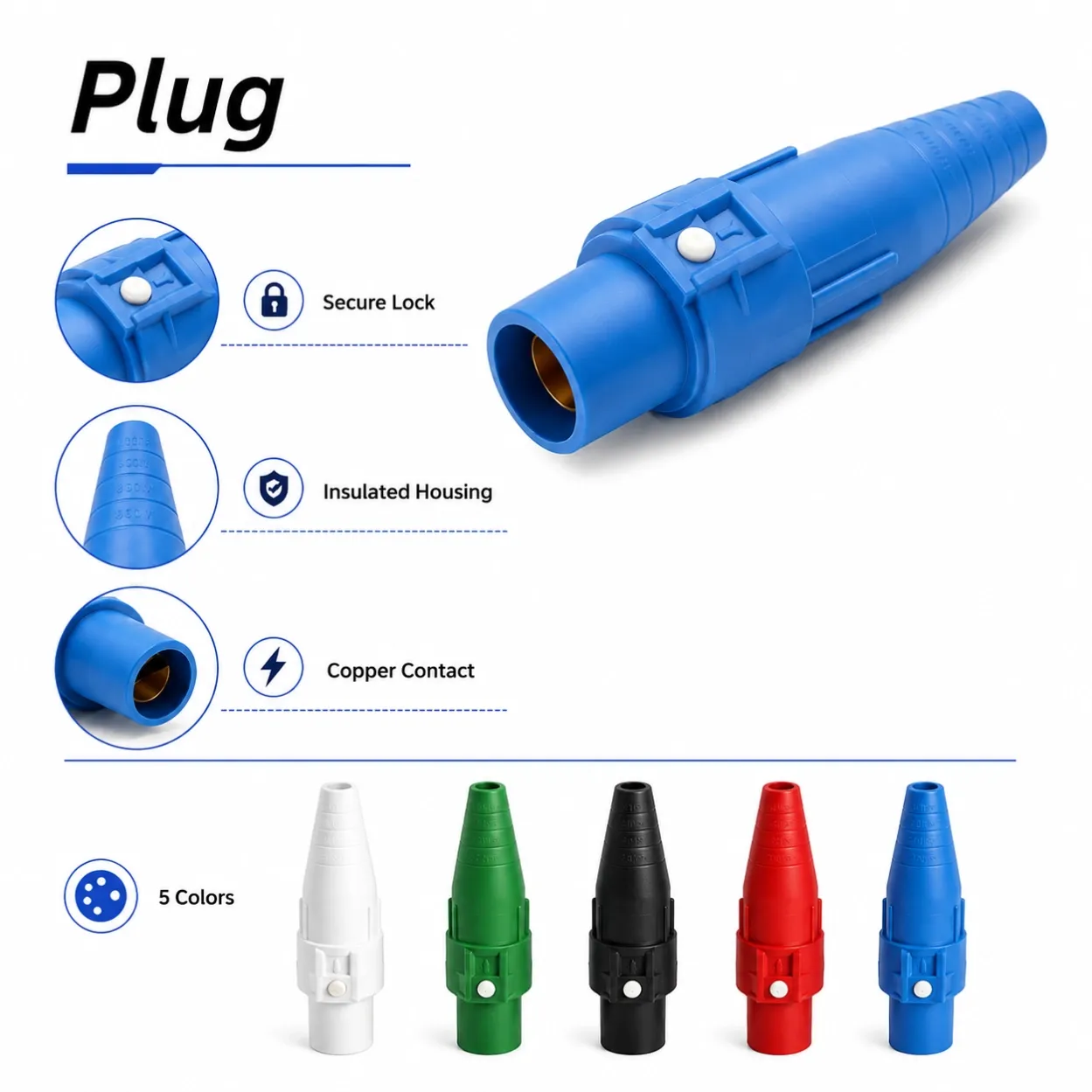

Durable Insulated Housing
The connector uses a high-insulation synthetic housing designed for demanding electrical environments.
The molded grip and raised rib structure provide better handling during installation and disconnection, especially when used with large power cables.
The cable entry also includes clearly marked diameter sections to help installers cut the strain-relief end according to the required cable size.

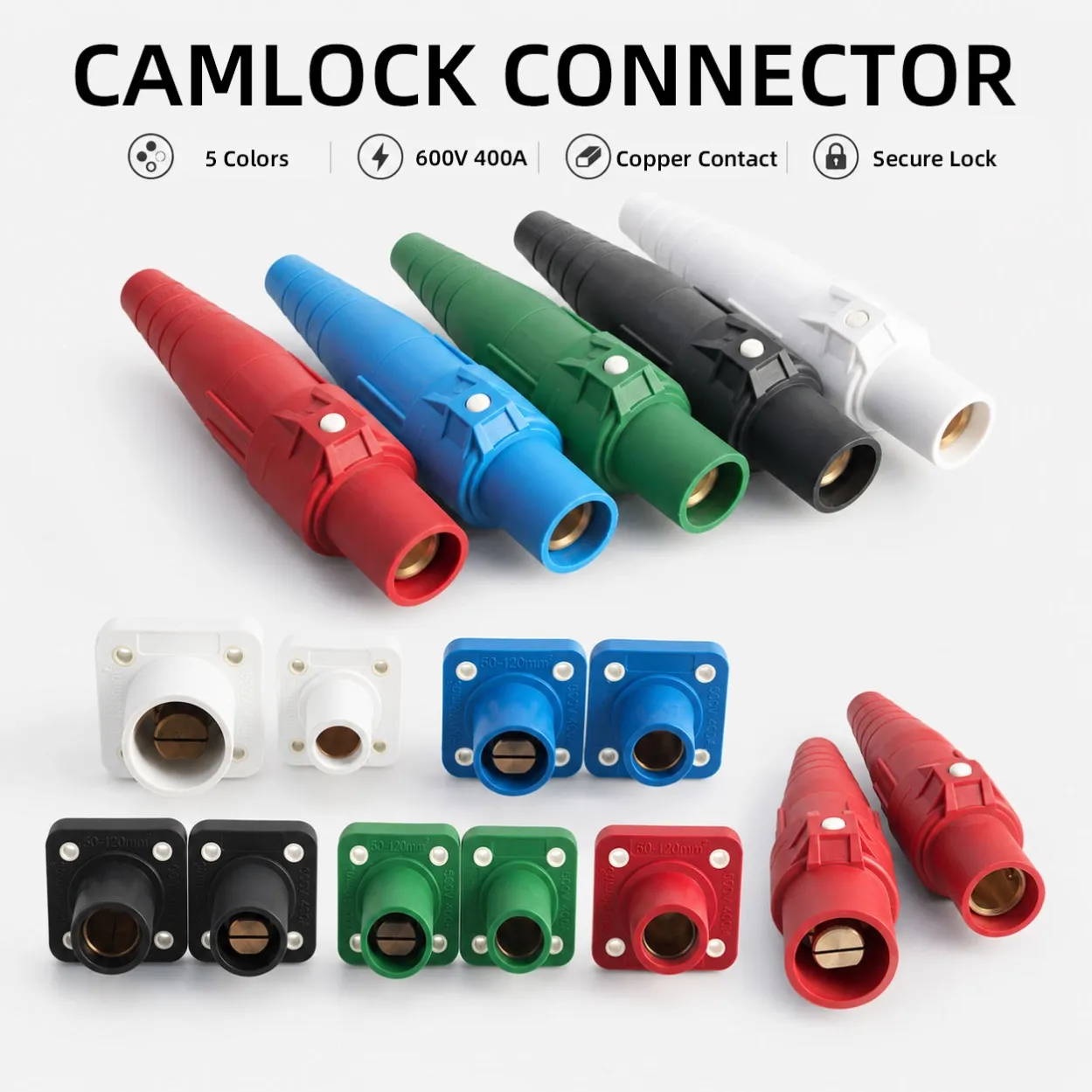

Color-Coded Power Distribution
Multiple connector colors are available to simplify circuit identification in multi-line power distribution systems.
Standard color options include:
- Black
- Red
- Blue
- Green
- Yellow
Color configurations can be selected according to the customer's electrical system, phase identification or project requirements.

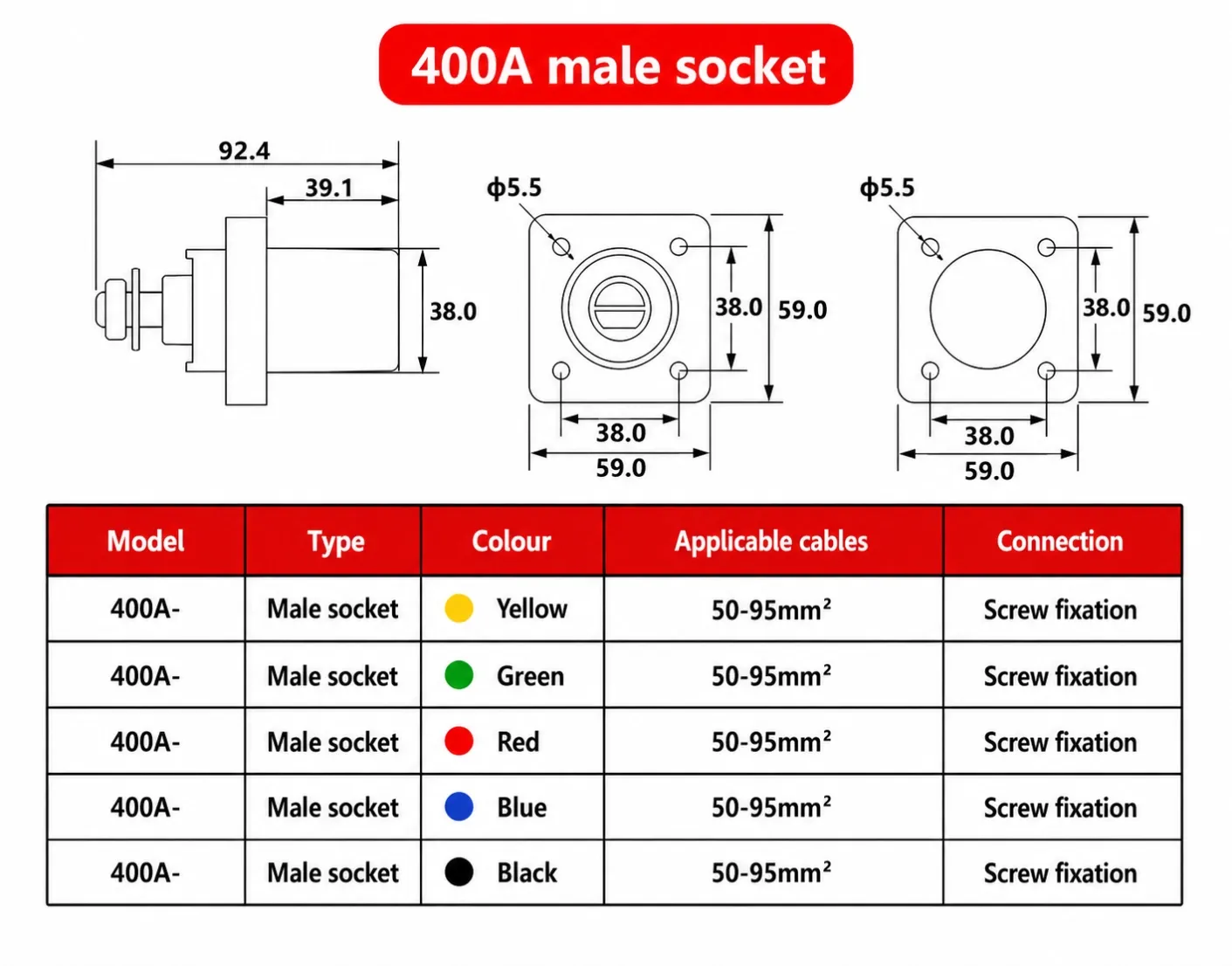

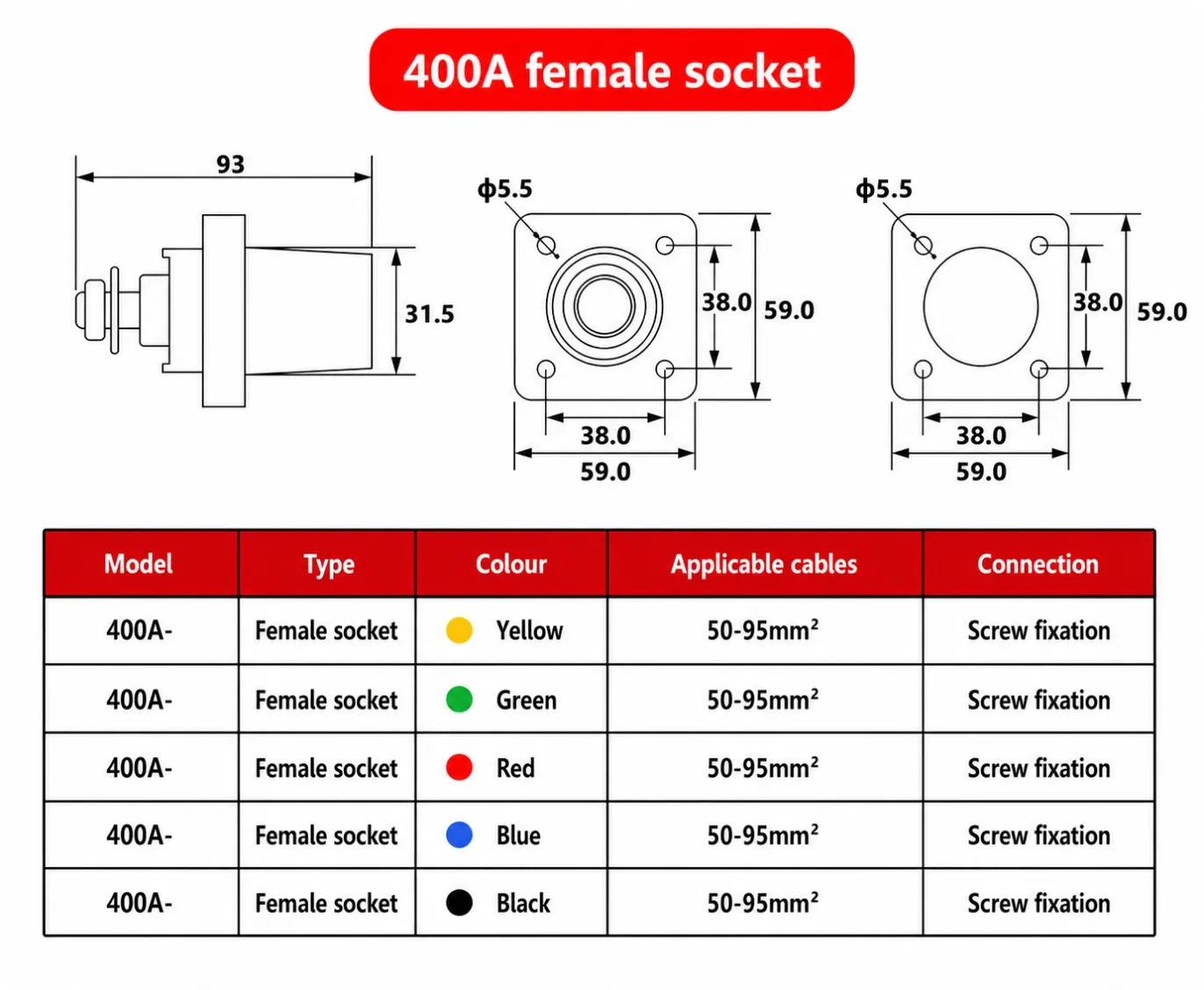

Male, Female and Panel-Mount Options
The ALUX Cam-Lock Connector Series can be supplied in different configurations for complete temporary power distribution systems.
Available options include:
- Male cable plug
- Female cable connector
- Male panel-mount receptacle
- Female panel-mount receptacle
- Protective cap
- Complete male and female connector sets
Contact us if you need help matching cable connectors with panel-mounted receptacles.

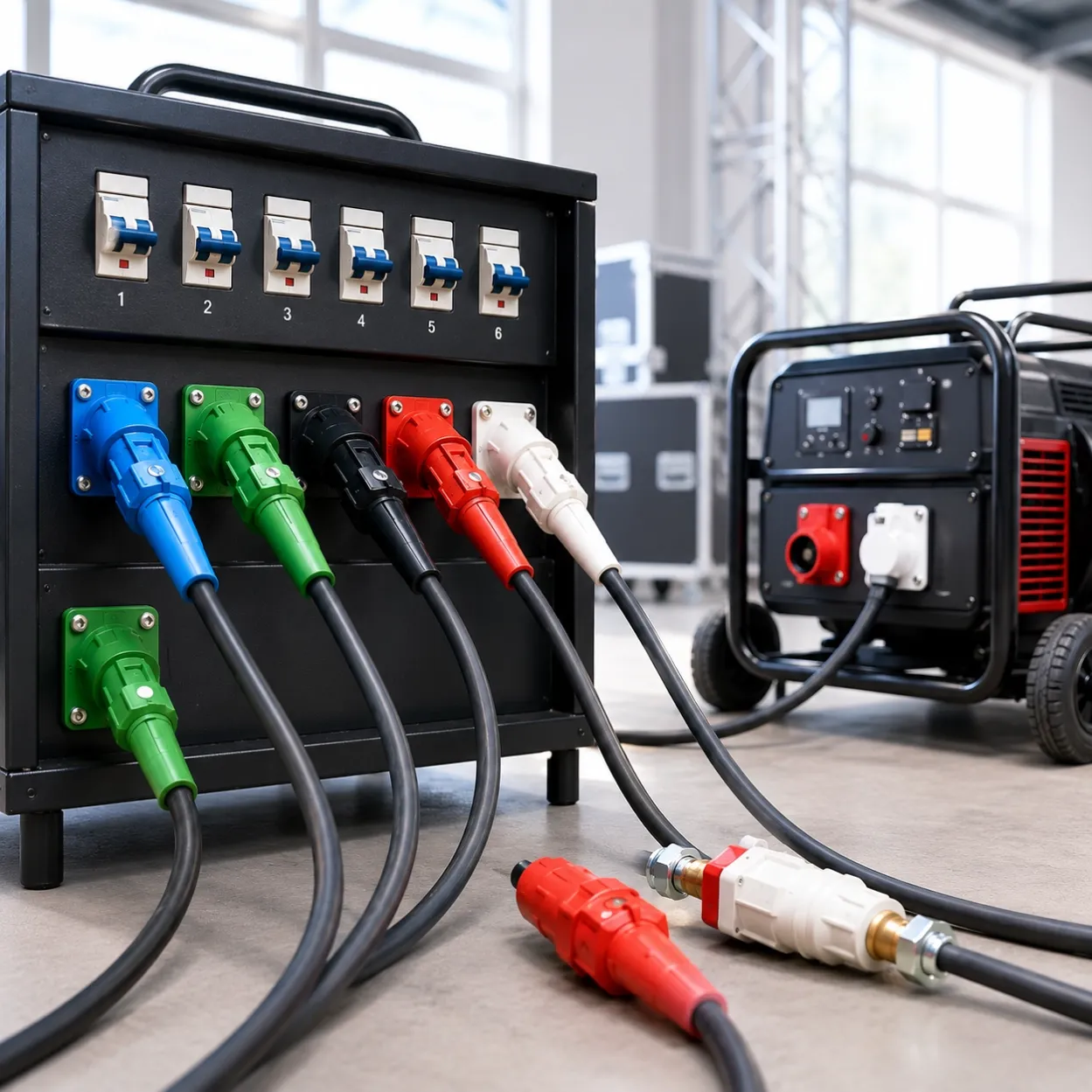

Typical Applications
ALUX single pole high-current connectors are suitable for:
- Temporary power distribution
- Generator power connections
- Stage lighting systems
- Concert and event power distribution
- Exhibition power systems
- Industrial machinery
- Mobile power equipment
- Power distribution boxes
- Generator connection panels
- Large cable assemblies
- Rental power equipment
- Construction site power distribution
Designed for Temporary Power Distribution
Single pole connectors are widely used where large power cables must be installed and removed quickly.
Compared with permanently wired connections, the quick-connect structure helps reduce installation time and makes equipment easier to transport, service and reconfigure.
For multi-phase power systems, different connector colors can also help installers identify individual lines during installation.
OEM & Private Label Service
ALUX supplies single pole power connectors for electrical distributors, cable assembly companies, generator suppliers, event power companies and industrial equipment manufacturers.
OEM options include:
- Custom housing color
- Customer logo
- Private label
- Model number customization
- Packaging customization
- Connector sets
- Cable assembly solutions
For distributors and OEM projects, contact us with your required current rating, cable size, connector type and estimated quantity.
How to Select the Right Connector
When requesting a quotation, please provide the following information:
- Rated current: 150A / 200A / 400A
- Male or female connector
- Cable cross-section
- Housing color
- Cable connector or panel-mount version
- Quantity
- OEM logo or packaging requirements
If you are unsure which connector is suitable for your cable or equipment, send us your cable specification or application information and our team can help confirm the appropriate model.
Request a Quote
Looking for single pole high-current power connectors for distribution, generator systems or OEM cable assemblies?
Contact ALUX for specifications, samples, OEM options and bulk pricing.
