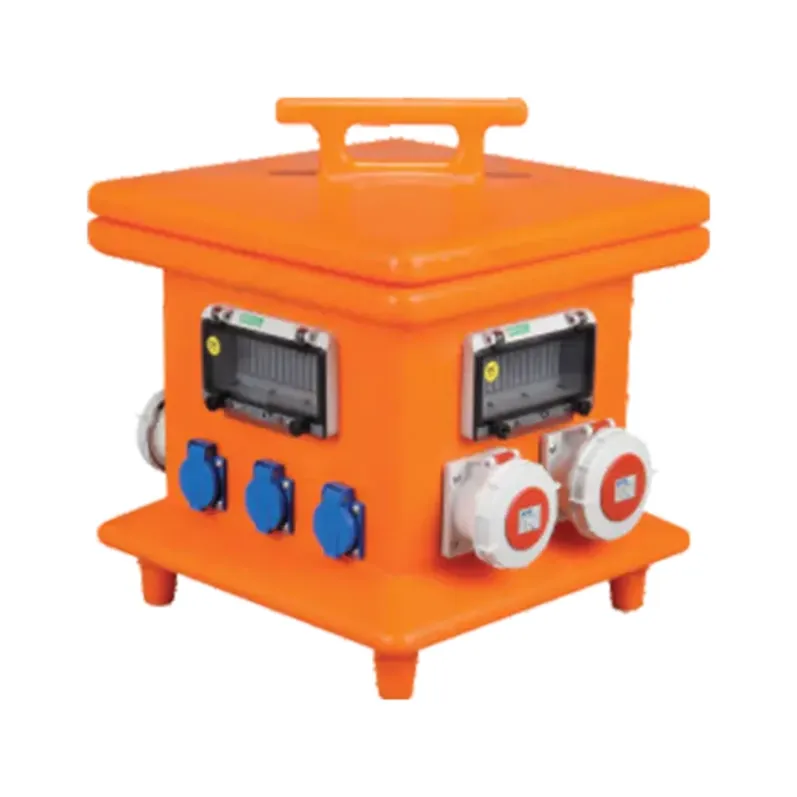

ALX-FN-312S Distribution Box 420x420x500mm
ALX-FN-312S Distribution Box 420x420x500mm, part of the ALX-FN industrial socket box family. Impact resistant housing, sealed outlets and glanded cable entry, ready for site and workshop power distribution.
The ALX-FN-312S is a portable power distribution box: one input feeds a bank of industrial sockets behind a gasketed lid, so a single site supply is split into ready-to-use outlets instead of a nest of adaptors. Carry it to where the work is, set it down, and the crew plugs in.
Technical Specifications
Item | Detail |
Product code | ALX-FN-312S |
Series | ALX-FN Industrial Socket Box |
Type | Portable power distribution box |
Outline dimensions | 420x420x500 mm |
Ingress protection | Weatherproof enclosure (rating as marked on the product label) |
Housing | Impact resistant plastic, light grey or colours as shown |
Mounting | Free standing, carry handle |
Supply entry | Glanded cable entry |
Outline dimensions and configuration are taken from the product drawing; confirm the exact socket arrangement and rated values on the nameplate before ordering. Ask us for the current dimension drawing if your panel layout depends on it.
Design Features
- One supply input distributes to multiple industrial sockets behind a sealed lid.
- Moulded carry position and stable base - it can be moved between work areas during a shift.
- Individual socket covers keep unused outlets sealed against dust and water.
- Cable entry is glanded, so the incoming supply is fixed, not hanging on a plug.
- Impact resistant housing survives being loaded in and out of site vehicles.
Model Options
Item | Detail |
This product | ALX-FN-312S |
Family | ALX-FN socket boxes - wall mounted, portable, mobile and handheld versions |
Ordering | State the product code and quantity; custom socket arrangements quoted on request |
Order by product code. Tell us the supply voltage and the socket arrangement you need and we will confirm the closest ALX-FN configuration, the lead time and the FOB price.
Applications
Construction sites, shipyards, event power, ship and yard refits, and temporary installations where one feed has to serve several tools or machines at once.
