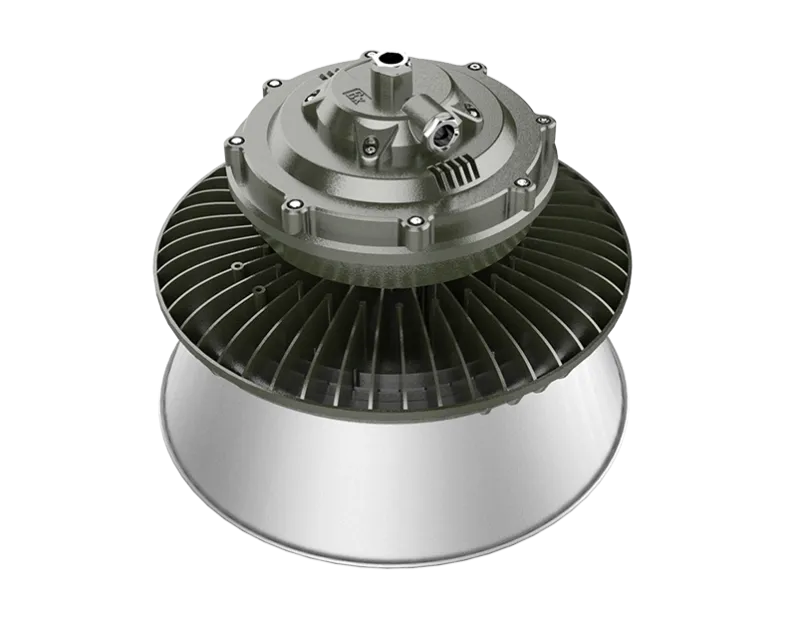

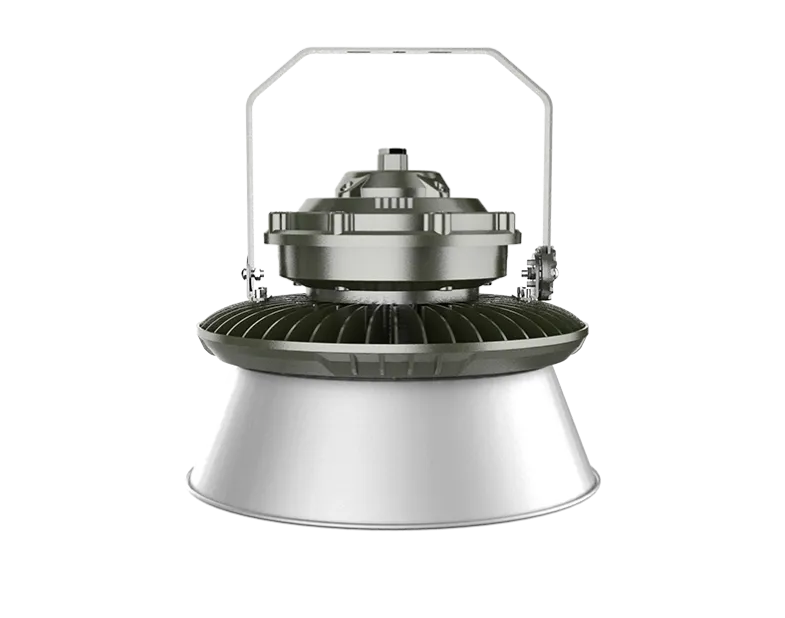

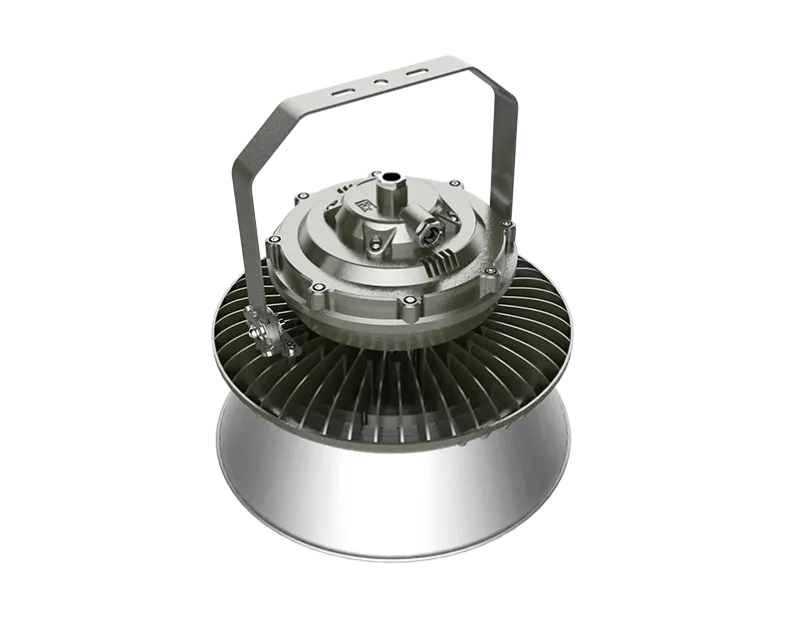

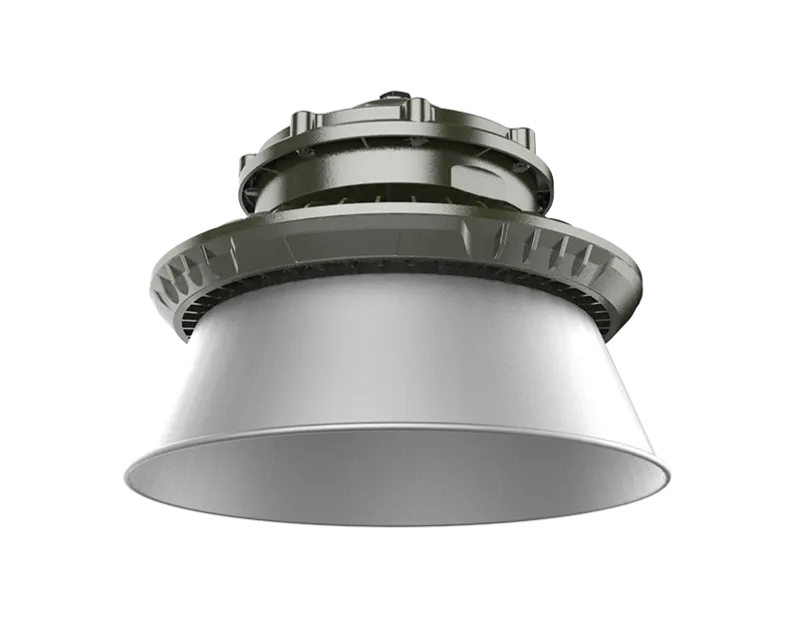

ALUX High-Power Explosion-Proof LED High Bay Light, 160-240W
High-power explosion-proof LED high bay light for large-scale hazardous area illumination. IP66-rated die-cast aluminum housing, 120 lm/W efficacy, 3030 LED array with 100,000-hour rated life. Designed for Zone 1/2 gas and Zone 21/22 dust explosive environments in high-ceiling petroleum, chemical, and mining facilities.
ALUX High-Power Explosion-Proof LED High Bay Light, 160-240W
Key Features:
- 3030 LED chips delivering 120 lm/W luminous efficacy with 100,000-hour rated service life

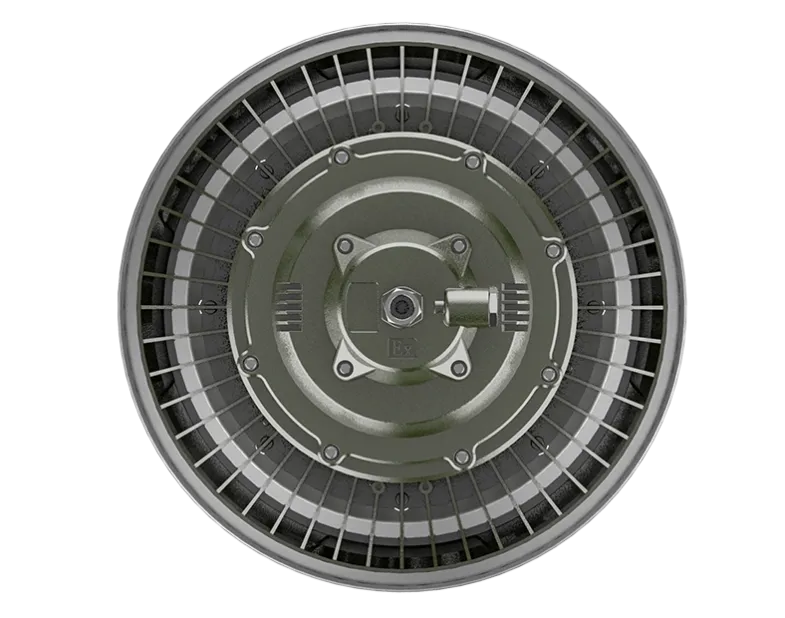

- Convective outer circular array radiator with independent upper and lower ventilation to prevent dust accumulation
- IP66-rated housing with WF2 anti-corrosion grade for harsh industrial environments
- Designed to Ex d e mb IIC T5 explosion-proof standard per GB3836.1 and GB3836.2 (certification status pending verification)

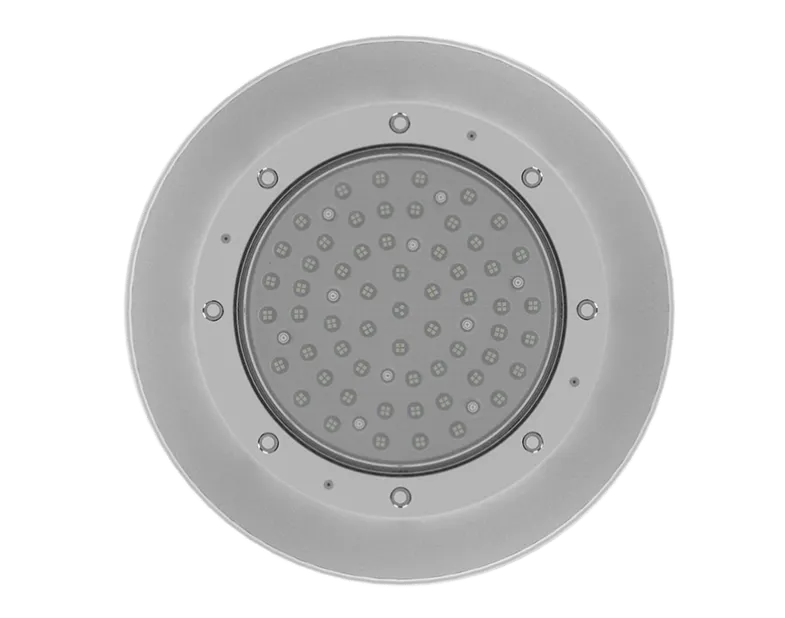

- Toughened glass cover with linear anti-dazzling crystal ring array design, 95-98% transmittance
- Aluminium reflector with annular array optical concave-convex wall to avoid glare and spots
- Wide voltage power supply (220V AC) with short-circuit and over-voltage protection

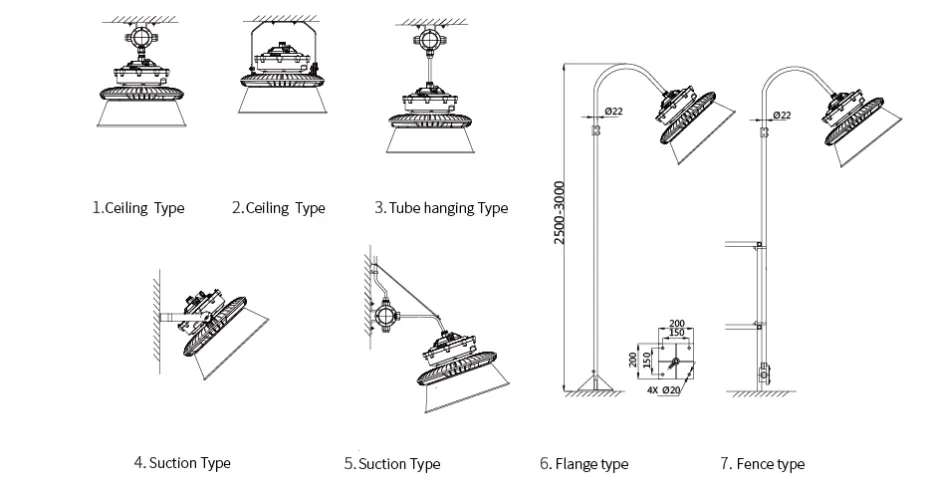

- Multiple installation options: ceiling mount, pendant, bent bar, vertical rod, or U-type shock-proof bracket
- Double inlet design enabling series/parallel lamp connection for flexible wiring
Technical Specifications:
- ALUX Model: ALX-EXH-02
- Power Range: 160-240 W
- Rated Voltage: 220 V AC (50/60 Hz)
- Power Factor: >0.95
- Luminous Efficacy: 120 lm/W
- LED Chip: 3030
- LED Quantity: 150 pcs
- Color Temperature: 3000-6500 K
- CRI (Color Rendering Index): >=70

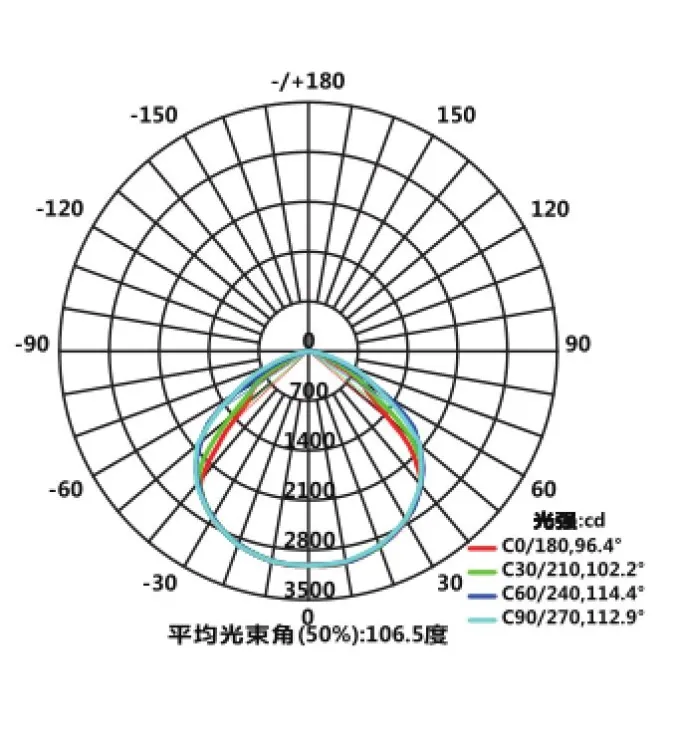

- Beam Angle: 110 degrees
- IP Rating: IP66
- Anti-corrosion Grade: WF2
- Explosion-proof Grade: Ex d e mb IIC T5 (design standard per GB3836.1/GB3836.2; certificate verification pending)
- Operating Temperature: -30C to +50C
- Storage Temperature: -30C to +50C

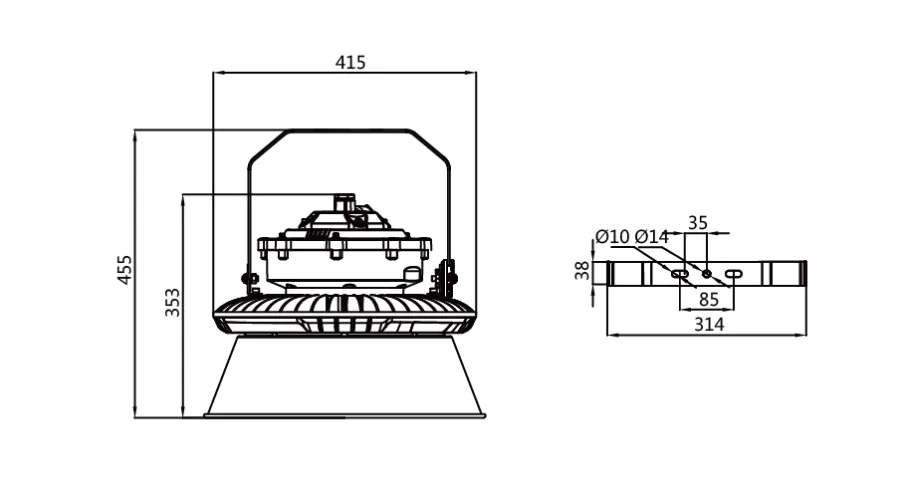

- Dimensions: Phi415 x 353 mm
- Weight: 6.6 kg
- LED Lifetime: 100,000 hours
- Start-up Time: <=0.2 s
- Executive Standard: GB3836.1, GB3836.2
- Glass Cover: Toughened glass (transparent or frosted optional)
- Installation: Ceiling mount, pendant, bent bar, vertical rod, or U-type shock-proof bracket
- Body Material: Die-cast aluminum alloy with anti-corrosion coating
-
Item | Symbol | Description | Unit |
Pictures |  | ||
Rated Voltage | VOLT | 220 | V |
Power | P | 160-240 | W |
Protection Level | IP | IP66 | IP |
Lighting Angle | θ | 110 | ° |
LED Qty | / | 150 | PCS |
Base Specifications | / | 3030 | |
Anti-corrosion Grade | / | WF2 | |
Explosion Proof Grade | / | Ex d e mb IIC T5 | |
Light Efficiency | η | 120 | Lm/W |
Frequency | f | 50/60 | Hz |
Power Factor | PF | ＞0.95 | PF |
Operating Temperature | TOPR | -30~50 | ℃ |
Storage Temperature | TOPR | -30~50 | ℃ |
Light Source | / | led | PCS |
Correlate Color Temperature | Tc | 3000-6500 | K |
Color Rendering Index | CRI | ≥70 | RA |
LED'S Operating Life | LIFE | 100000 | Hours |
Start-up Time | T | ≤0.2 | S |
Executive Standard | / | GB3836.1、GB3836.2 | |
Weight | / | 6.6 | KG |
Size | / | Φ415×353 | mm |
TEST
Applications:
- Petroleum mining and oil refining facilities with high ceilings
- Chemical and petrochemical processing plants
- Military installations and defense facilities
- Zone 1 and Zone 2 explosive gas environments
- Zone 21 and Zone 22 combustible dust environments
- Large-scale warehouse and storage facility lighting
- High-bay manufacturing and assembly areas
- Steel, metallurgy, and heavy industry facilities
- Underground and poorly ventilated high-ceiling areas
OEM/ODM Options
- Custom ALUX model numbers and private label branding available
- Adjustable power configurations within the 160-240W range
- Optional transparent or frosted glass cover finish
- Custom color temperature selection (3000K-6500K)
- Brand-neutral packaging and documentation for resale
- Contact ALUX for MOQ, lead time, and certification pathway requirements
FAQ
Q1: What is the minimum order quantity (MOQ) and lead time for this high-power explosion-proof LED high bay light?
A1: MOQ and lead time depend on the specific configuration and customization level. Please submit a Request for Quote with your required wattage, quantity, target market, and any certification requirements. We will provide a detailed quotation including lead time, shipping options, and payment terms within 48 hours.
Q2: Does this product carry ATEX, IECEx, or CE certification for European markets?
A2: The lamp is engineered to Ex d e mb IIC T5 standards per GB3836.1 and GB3836.2. ATEX and IECEx certifications are available based on the specific configuration and order volume. Please contact ALUX with your target market certification requirements, and we will confirm availability and provide the corresponding documentation pathway.
Q3: Can the power range be customized for different installation heights and lux levels?
A3: Yes. The 160-240W range supports multiple power configurations to suit different ceiling heights and illumination requirements. Specify your target lux level, mounting height, and beam angle requirements when requesting a quote, and we will confirm the optimal configuration and light distribution for your project.
Q4: What is the difference between the Ex d e mb IIC T5 rating and the Ex d IIC T6 rating used on other models?
A4: The Ex d e mb IIC T5 marking indicates this lamp uses a combination of flameproof enclosure (d), increased safety (e), and encapsulation (mb) protection methods with a T5 temperature class (surface temperature ≤100°C). This is specific to the 160-240W high-power configuration. The IIC gas group covers hydrogen and acetylene environments. Contact ALUX for detailed certification documentation for your specific hazardous area classification.
