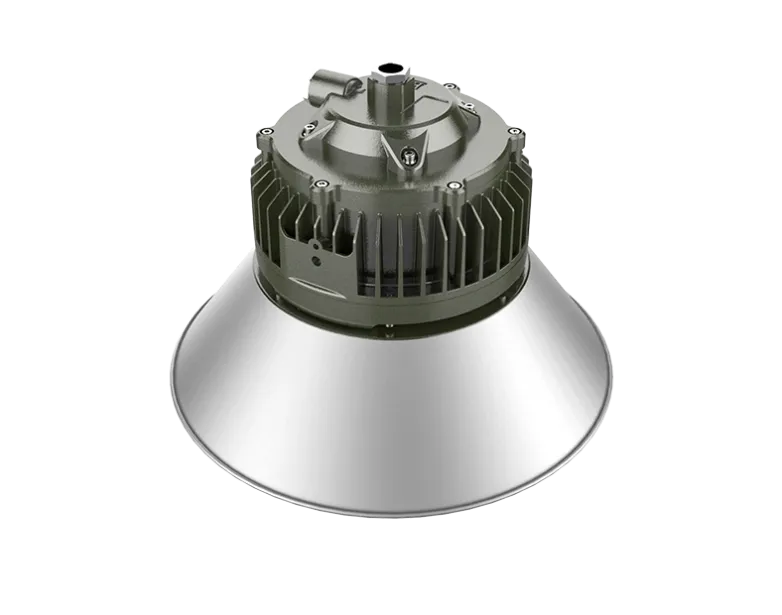

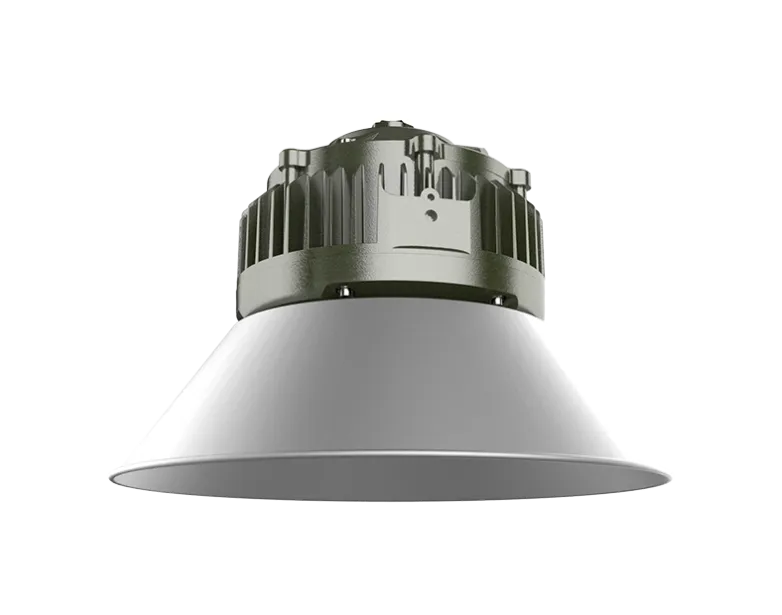

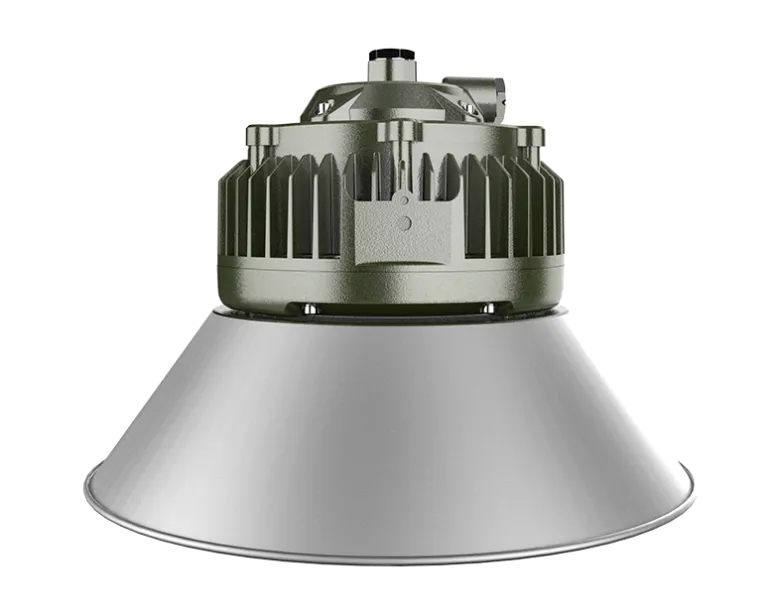

ALUX Explosion-Proof LED High Bay Light, 40-100W
Industrial-grade explosion-proof LED high bay light for hazardous area lighting. IP66-rated housing, 120 lm/W efficacy, CREE 3030 LED light source with 100,000-hour rated life. Designed for Zone 1/2 gas and Zone 21/22 dust explosive environments in petroleum refining, chemical processing, mining, and military facilities.
ALUX Explosion-Proof LED High Bay Light, 40-100W
Key Features
CREE 3030 LED chips delivering 120 lm/W luminous efficacy with 100,000-hour rated service life
IP66-rated housing with WF2 anti-corrosion grade for harsh industrial environments
Designed to Ex d IIC T6 explosion-proof standard per GB3836.1 and GB3836.2 (certification status pending verification)

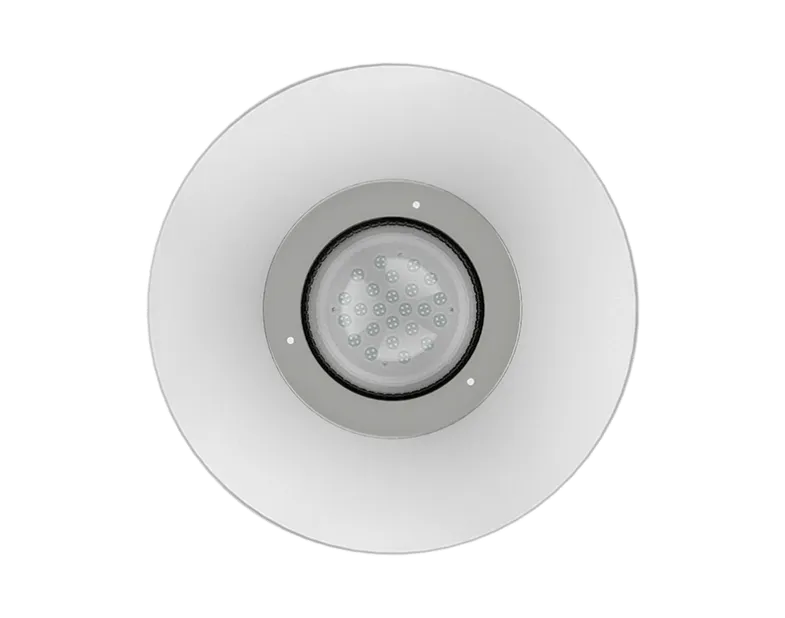

Toughened glass cover with optional transparent or frosted finish, 95-98% transmittance

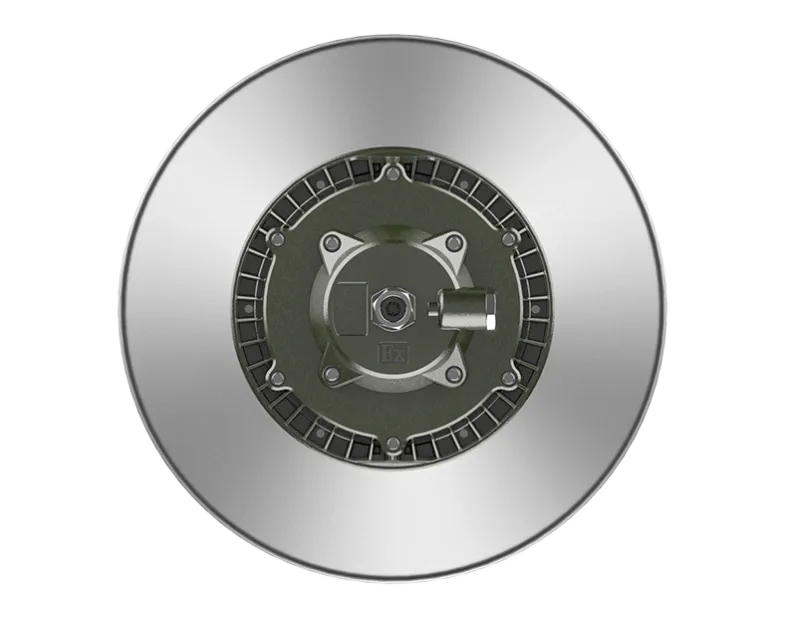

Integrated streamlined heat sink with circular array design for efficient thermal management
Wide voltage power supply (220V AC) with short-circuit and over-voltage protection

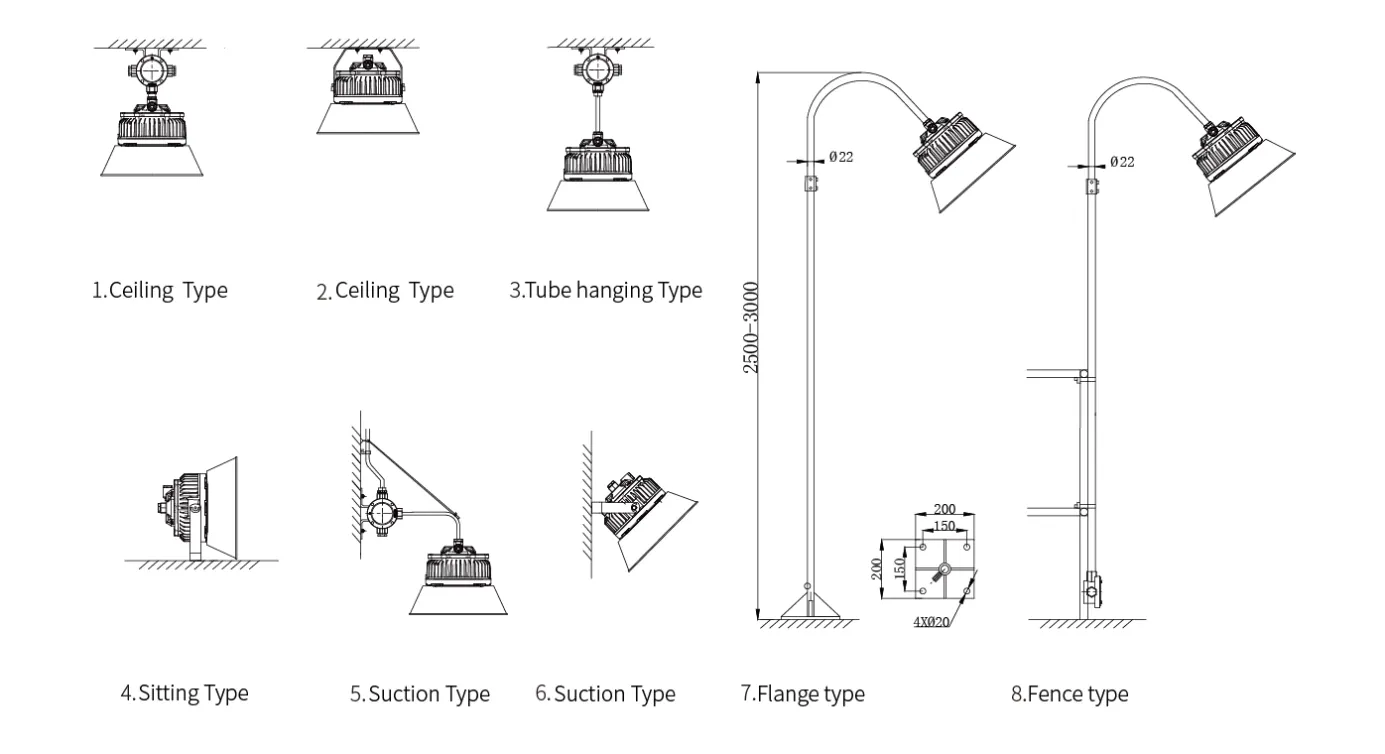

Multiple installation options: ceiling mount, pendant, bent bar, or vertical rod
Double inlet design enabling series/parallel lamp connection for flexible wiring
Technical Specifications
ALUX Model: ALX-EXH-01
Power Range: 40-100 W
Rated Voltage: 220 V AC (50/60 Hz)
Power Factor: >0.95
Luminous Efficacy: 120 lm/W
LED Chip: CREE 3030
LED Quantity: 80 pcs
Color Temperature: 3000-6500 K
CRI (Color Rendering Index): >=70

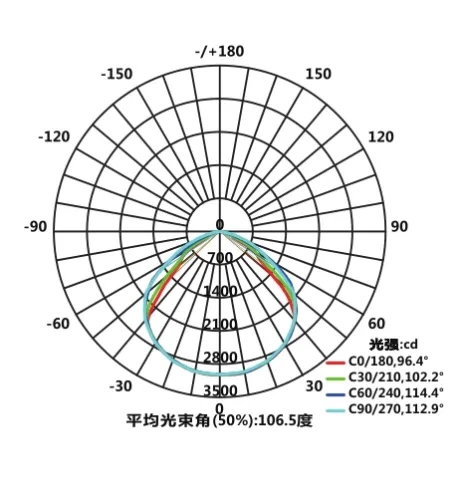

Beam Angle: 110 degrees
IP Rating: IP66
Anti-corrosion Grade: WF2
Explosion-proof Grade: Ex d IIC T6 (design standard per GB3836.1/GB3836.2; certificate verification pending)
Operating Temperature: -30C to +50C
Storage Temperature: -30C to +50C

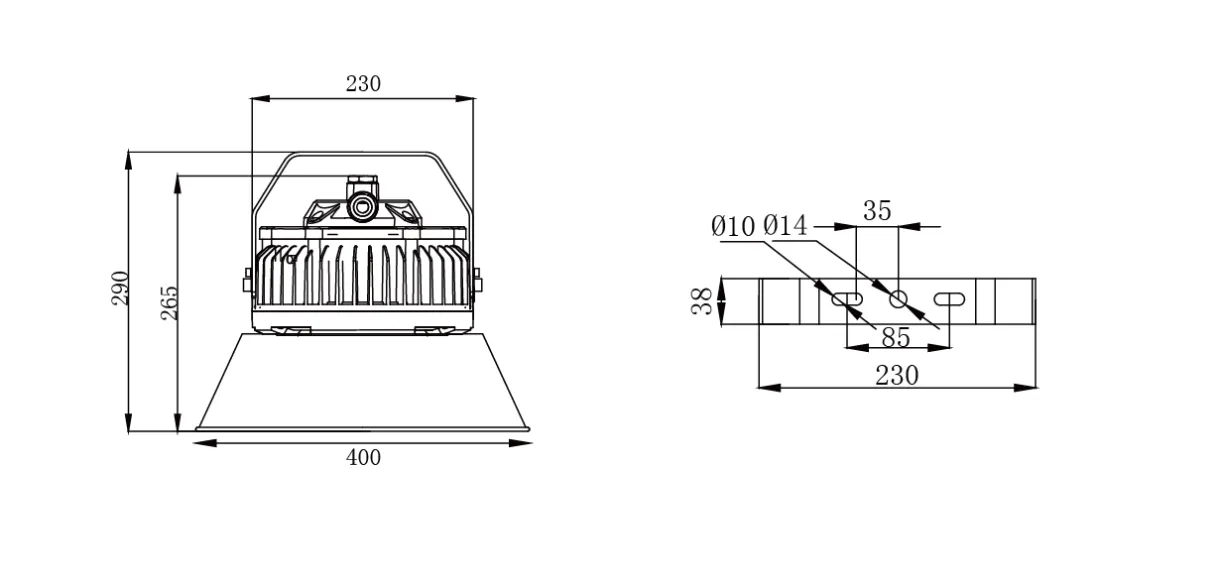

Dimensions: Phi347 x 266 mm (note: supplier diagram shows 400 x 290 mm - discrepancy pending verification)
Weight: 5.7 kg
LED Lifetime: 100,000 hours
Start-up Time: <=0.2 s
Executive Standard: GB3836.1, GB3836.2
Glass Cover: Toughened glass (transparent or frosted optional)
Installation: Ceiling mount, pendant, bent bar, or vertical rod
Body Material: Die-cast aluminum alloy with anti-corrosion coating
Item | Symbol | Description | Unit |
Picture |  | ||
Rated Voltage | VOLT | 220 | V |
Power | P | 40-100 | W |
Protection Level | IP | IP66 | IP |
Lighting Angle | θ | 110 | ° |
LED Qty | / | 80 | PCS |
Base Specifications | / | CREE3030 | |
Anti-corrosion Grade | / | WF2 | |
Explosion Proof Grade | / | Ex d IIC T6 | |
Light Efficiency | η | 120 | Lm/W |
Frequency | f | 50/60 | Hz |
Power Factor | PF | ＞0.95 | PF |
Operating Temperature | TOPR | -30~50 | ℃ |
Storage Temperature | TOPR | -30~50 | ℃ |
Light Source | / | led | PCS |
Correlate Color Temperature | Tc | 3000-6500 | K |
Color Rendering Index | CRI | ≥70 | RA |
LED'S Operating Life | LIFE | 100000 | Hours |
Start-up Time | T | ≤0.2 | S |
Executive Standard | / | GB3836.1、GB3836.2 | |
Weight | / | 5.7 | KG |
Size | / | Φ347×266 | MM |
Applications
Petroleum mining and oil refining facilities
Chemical and petrochemical processing plants
Military installations and defense facilities
Zone 1 and Zone 2 explosive gas environments
Zone 21 and Zone 22 combustible dust environments
Energy-saving retrofit projects in high-maintenance areas
High-humidity and corrosive industrial environments
Steel, metallurgy, and manufacturing facilities
Underground and poorly ventilated lighting areas
OEM/ODM Options
Custom ALUX model numbers and private label branding available
Adjustable power configurations within the 40-100W range
Optional transparent or frosted glass cover finish
Custom color temperature selection (3000K-6500K)
Brand-neutral packaging and documentation for resale
Contact ALUX for MOQ, lead time, and certification pathway requirements
FAQ
Q1: What is the minimum order quantity (MOQ) and lead time for this explosion-proof LED high bay light?
A1: MOQ and lead time depend on the specific configuration and customization level. Please submit a Request for Quote with your required wattage, quantity, target market, and any certification requirements. We will provide a detailed quotation including lead time, shipping options, and payment terms within 48 hours.
Q2: Does this product carry ATEX, IECEx, or CE certification for European markets?
A2: The lamp is engineered to Ex d IIC T6 standards per GB3836.1 and GB3836.2. ATEX and IECEx certifications are available based on the specific configuration and order volume. Please contact ALUX with your target market certification requirements, and we will confirm the availability and provide the corresponding documentation pathway.
Q3: Can the power range be customized for different installation heights and lux levels?
A3: Yes. The 40-100W range supports multiple power configurations to suit different ceiling heights and illumination requirements. Specify your target lux level, mounting height, and beam angle requirements when requesting a quote, and we will confirm the optimal configuration and light distribution for your project.
Q4: What warranty and after-sales support does ALUX provide for this industrial light?
A4: Warranty terms are confirmed per order based on configuration, destination market, and quantity. The LED light source is rated for 100,000 hours of service life. Contact ALUX for specific warranty coverage, spare parts availability, and technical support arrangements. We provide installation guidance and on-site support for large projects.
