Case Share: Custom SJTW Extension Cord Reels for a Distributor Project
In this case study, we share our experience developing customized SJTW extension cord reels, from sample evaluation and reel design to production preparation for distributor projects.
Case Share: Custom SJTW Extension Cord Reels for a Distributor Project
We recently worked on a custom extension cord reel project for a distributor looking to expand its portable power product range.
The customer was not looking for a standard off-the-shelf cable reel. They wanted to evaluate several reel configurations that could be combined with SJTW extension cords, different outlet layouts and portable reel structures before finalizing the product.
For us, this type of project is not simply about supplying a plastic reel. The cable, plug, outlets, reel capacity and electrical configuration need to be considered as one complete assembly.
Below are some of the actual configurations we prepared during the project.
What the Customer Needed
The initial requirement was a portable extension cord reel that could complement the customer's existing electrical and extension cord range.
Before preparing the product, we discussed several key specifications with the customer:
- Extension cord type
- Wire gauge
- Cable length
- Plug configuration
- Number and type of outlets
- Reel size and structure
- Carrying handle
- Switch and protection options
- Product color
- OEM branding and packaging
Since the customer was already sourcing extension cord products, SJTW cable was one of the practical options considered for the reel assembly.
This also allowed us to develop the cable reel around a product category that was already familiar to the customer's market.
Developing Different Cable Reel Structures
Instead of asking the customer to choose only from one standard reel, we evaluated different physical structures.

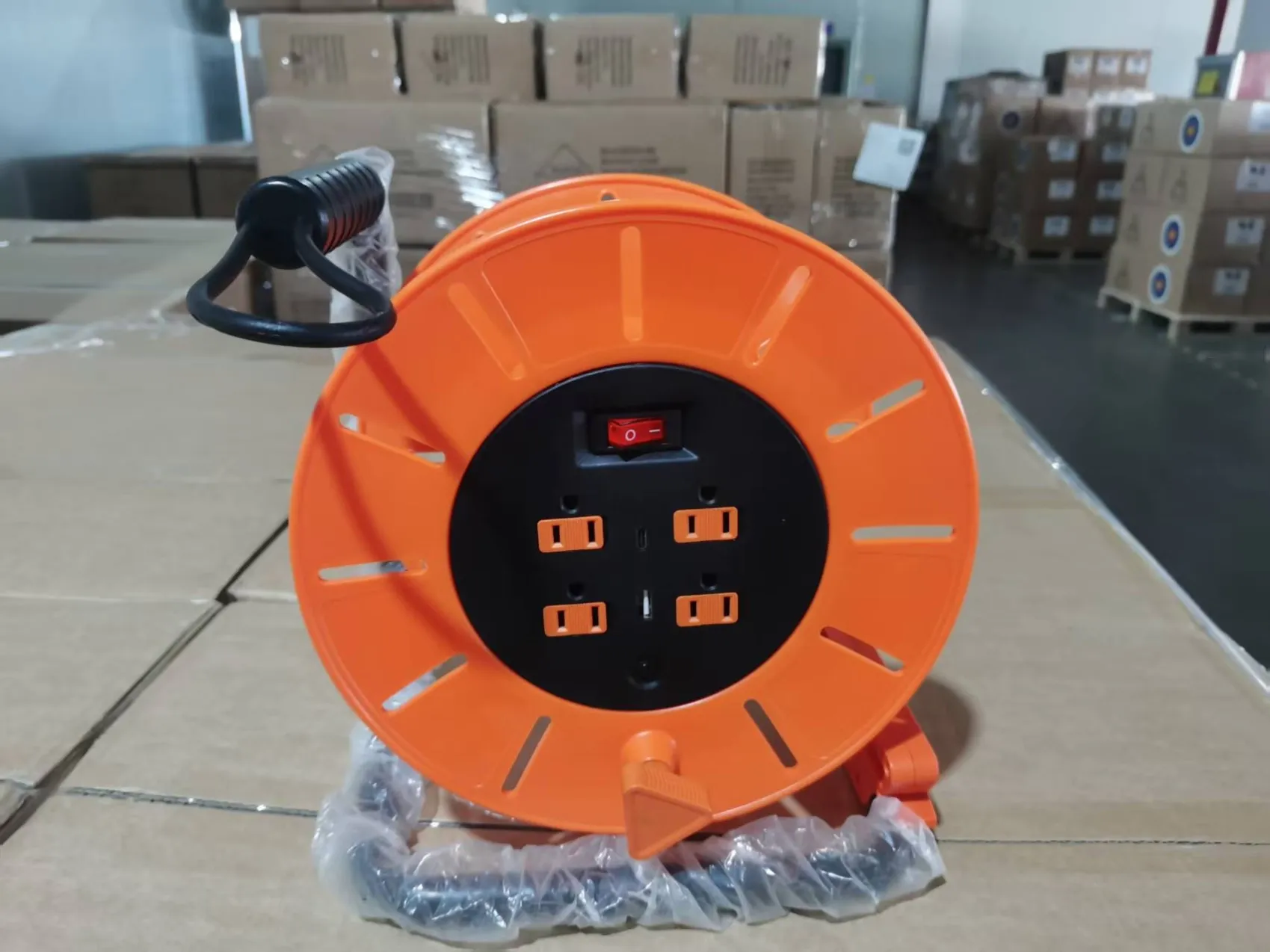

Version 1 – Enclosed Multi-Outlet Cable Reel
One configuration uses an orange enclosed reel body with four outlets on the center panel and an ON/OFF switch.
The enclosed structure gives the product a clean, finished appearance while keeping several power outlets integrated directly into the reel.
For this configuration, we can match the reel with the required cable specification, plug, outlet arrangement and packaging according to the customer's target SKU.
Version 2 – Open-Frame Cable Reel
We also prepared an open-frame reel configuration.
The open structure provides easier access to the wound cable and gives the product a more industrial appearance.
When we select the reel structure, we do not look at appearance alone.
The cable diameter, required cable length, reel capacity, outlet configuration and intended application all need to be considered together.
Matching the Cable Reel with SJTW Extension Cord
For this project, the extension cord and reel were treated as one complete product rather than two separate components.
When developing an SJTW extension cord reel, we normally confirm:
Specification | What We Confirm |
|---|---|
Cable Type | SJTW |
Wire Gauge | According to the required electrical configuration |
Cable Length | According to customer requirements and reel capacity |
Plug Type | According to the target market |
Outlets | Required quantity and configuration |
Reel Size | Matched to cable diameter and length |
Color | Standard or customized |
Branding | OEM logo and product label |
Packaging | Standard or private-label packaging |
This step is important because simply changing the cable length does not always mean the same reel can be used.
A longer or heavier cable may require a larger reel or a different reel structure.
Buyers who are selecting SJTW cable for their product range can also read our 12/3 SJTW Extension Cord Guide for more information about cable specifications and sourcing considerations.

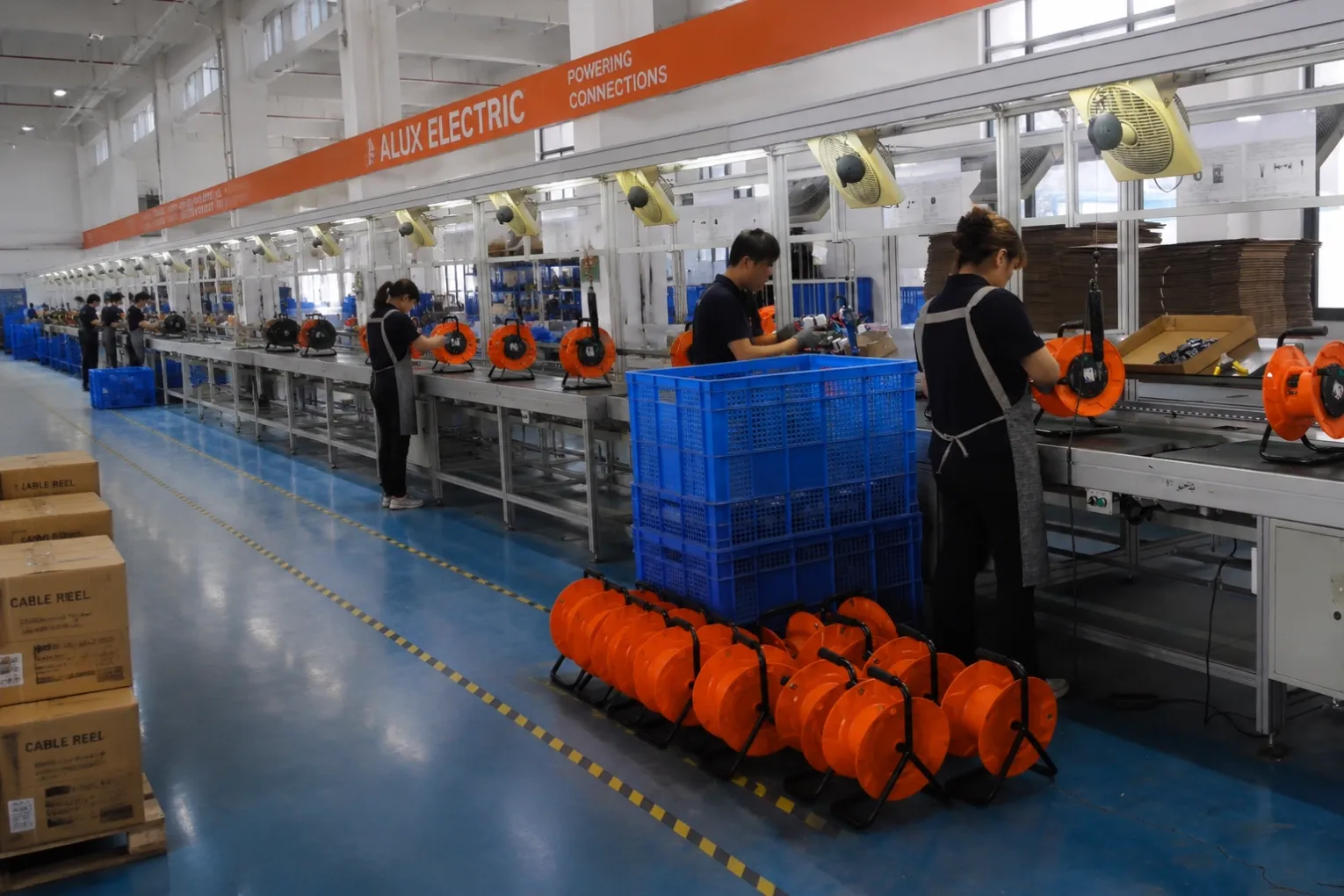

From Sample Configuration to Repeat Production
For us, making the first sample is only one part of the project.
The more important objective is to create a specification that can be reproduced consistently for future orders.
Once the customer selects the preferred configuration, we can confirm the main production details, including:
- Reel structure
- SJTW cable specification
- Cable length
- Plug configuration
- Outlet arrangement
- Switch or protection options
- Housing and cable color
- Product label
- OEM logo
- Barcode
- Packaging artwork
- Master carton markings
These details can then be used as the reference for sample approval and repeat production.
Related Extension Cord Products
This project is closely connected with our existing SJTW extension cord and portable power connection range.
For distributors developing a broader extension cord product line, related products include:
12/3 SJTW Extension Cord
A heavy-duty SJTW extension cord configuration available for different lengths, plug designs and OEM requirements.
14/3 SJTW 3-Outlet Outdoor Extension Cord
A multi-outlet extension cord solution for buyers requiring several power points without using a cable reel.
SJTW vs SJEOW Extension Cord Guide
A practical comparison for buyers selecting cable jacket types for different working environments.
Extension Cords & Power Connection Solutions
View more extension cords, multi-outlet cords, adapters and related power connection products.
Looking for a Custom Cable Reel Solution?
If you are an electrical distributor, hardware wholesaler, importer or private-label brand developing a similar cable reel, send us your existing specification, reference sample or product photo.
To help us evaluate the project quickly, please provide:
Cable Type + Wire Gauge + Cable Length + Plug Type + Outlet Configuration + Target Market + Estimated Quantity
Our team can review the cable specification, reel capacity, outlet arrangement and OEM requirements and recommend a suitable configuration for quotation.
Already have an existing cable reel you want us to match?
Send us a photo or specification sheet and we can start from there.
Request a Quote
OEM branding, custom colors, product labels, packaging and carton requirements are available for distributor and private-label projects.
