Welding Cable Connector for MMA ARC Welding Machine | ALUX
Heavy-duty welding cable quick connector for MMA and ARC welding machines. Multiple cable sizes, colors and OEM options available for distributors and industrial buyers.
Welding Cable Connector for MMA ARC Welding Machine | ALUX
Heavy-duty welding cable quick connector designed for reliable connection between welding machines, welding cables, electrode holders and ground clamps.
Available in multiple cable sizes and housing colors, this connector is suitable for welding equipment distributors, industrial suppliers and OEM projects.
Key Features
- Male/Female Socket: Suitable for various applications requiring connection between devices.
- Screw Fixation: Easy installation with screw fixation method.
- 150A, 200A, 400A, 600V: Supports high current and voltage ratings for reliable power transmission.
- Industrial Use: Designed for heavy-duty industrial environments.
- Isolated Ground: Ensures safety by providing a grounded connection.
- OEM logo, color and packaging available
- Suitable for industrial welding and repair applications
Available Cable Sizes

Other specifications can be supplied according to customer requirements.
Technical Specifications
Parameter | Specification |
|---|---|
Product Type | Welding Cable Quick Connector |
Connector Type | Plug / Socket / Pair |
Spec. | 150A, 200A, 400A, 600V |
Contact Material | Copper / Copper Alloy |
Housing | Insulated Housing |
Connection Method | Quick Plug-in / Twist Lock |
Cable Termination | Crimp / Mechanical Fixing |
Available Colors | Red / Black / Blue / Green / Yellow |
Application | Welding Machine & Welding Cable |
Welding Type | MMA / ARC |
OEM / ODM | Available |
Packaging | Neutral or Customized Packaging |
SPECIFICATIONS


Model | Type | Color | Cable Nominal Cross-section Area | WiringMethod |
ALX-200MT-Y | Male/Female Socket | Yellow | 16-35 mm | Screw Fixation |
ALX-200MT-G | Male/Female Socket | Green | 16-35 mm2 | Screw Fixation |
ALX-200MT-R | Male/Female Socket | Red | 16-35 mm2 | Screw Fixation |
ALX-200MT-B | Male/Female Socket | Blue | 16-35 mm2 | Screw Fixation |
ALX-200MT-BH | Male/Female Socket | Black | 16-35 mm2 | Screw Fixation |
Reliable Welding Cable Connection
The ALUX welding cable connector is designed to provide a secure and convenient electrical connection between welding machines and welding cables.
The quick-connect structure allows the welding cable to be connected or disconnected efficiently while maintaining stable electrical contact during welding operations.
It can be used with welding machines, electrode holders, ground clamps and other welding cable assemblies.

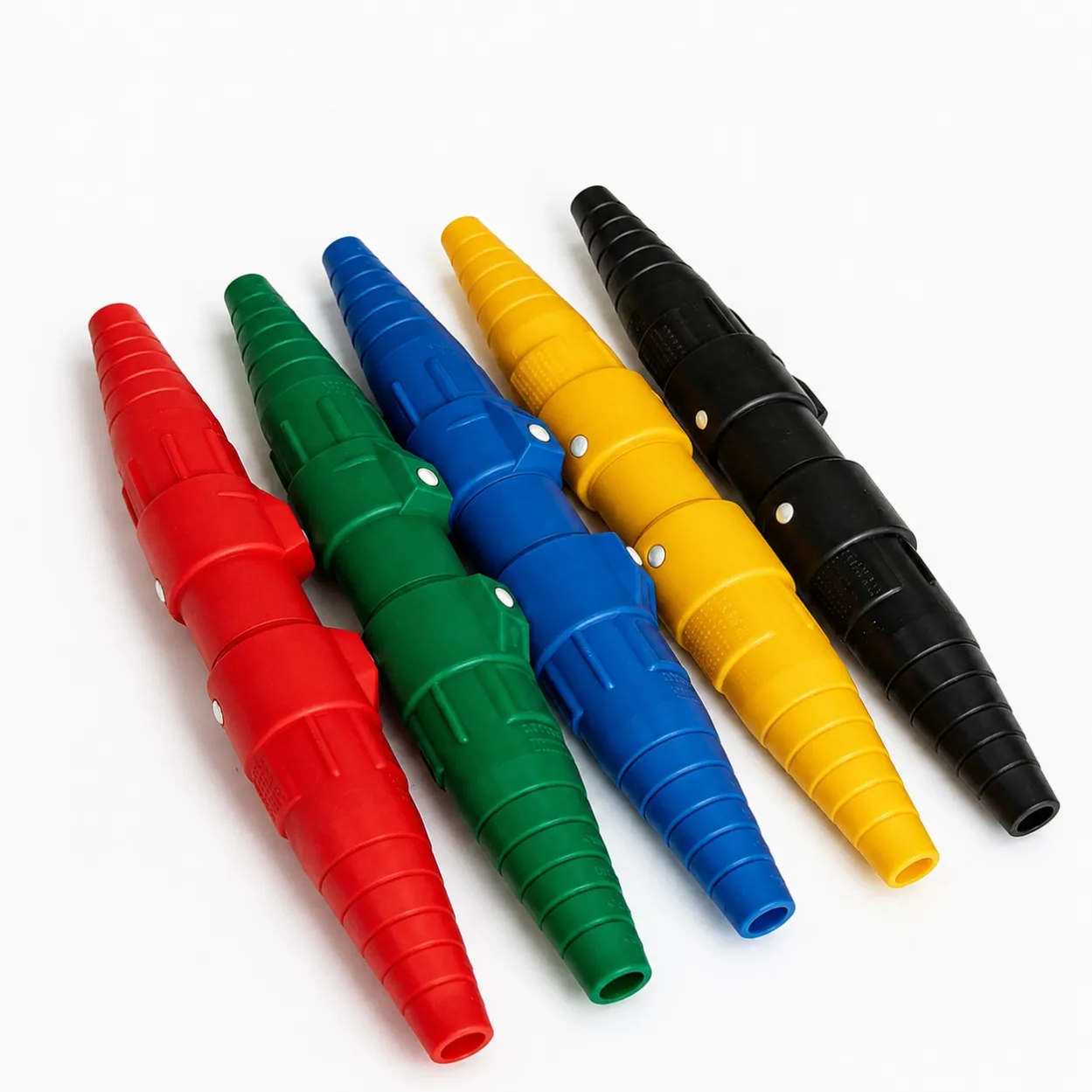

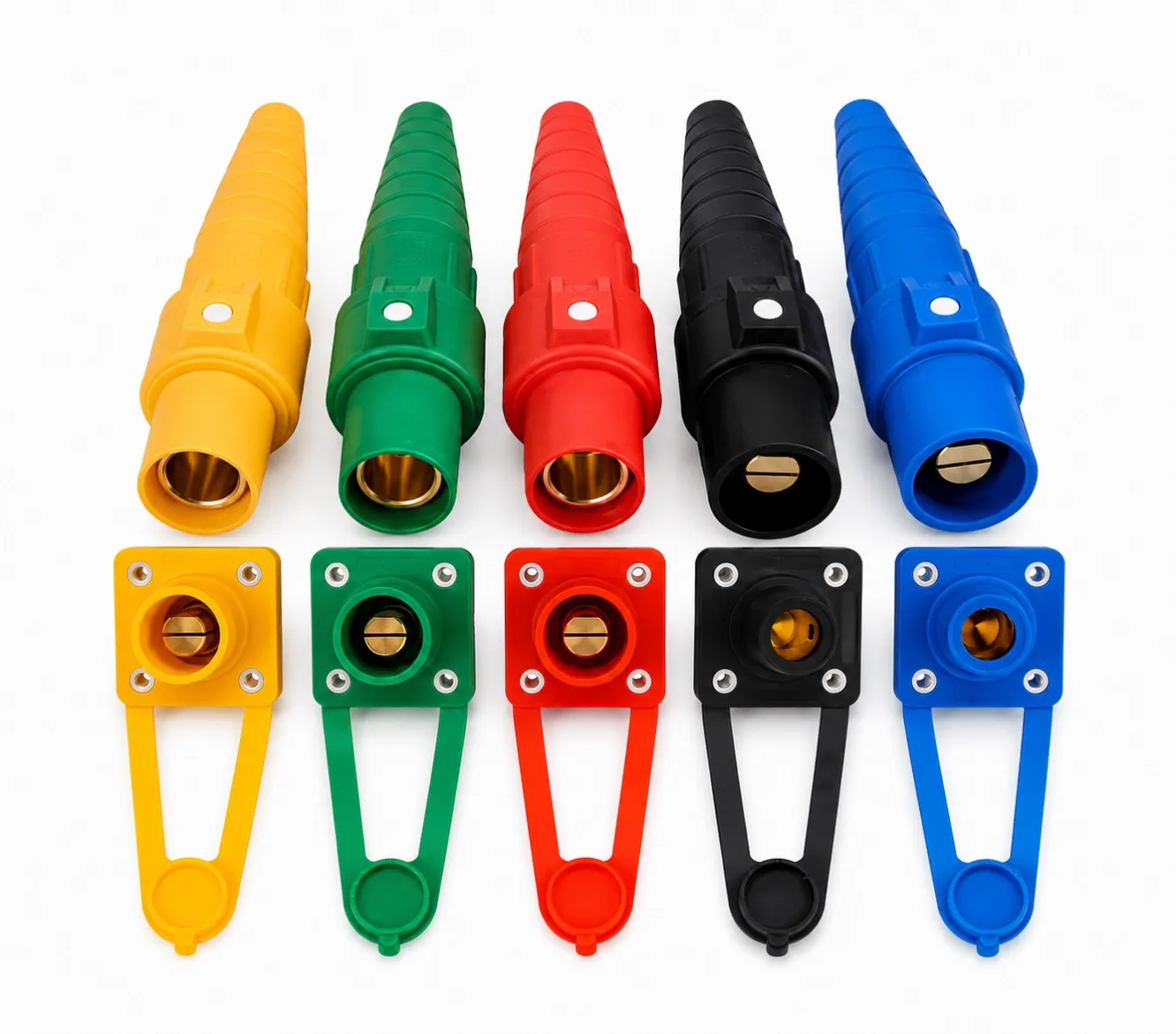

Durable Insulated Housing
The connector features a durable insulated outer housing that protects the conductive connection while providing a comfortable grip during installation and removal.

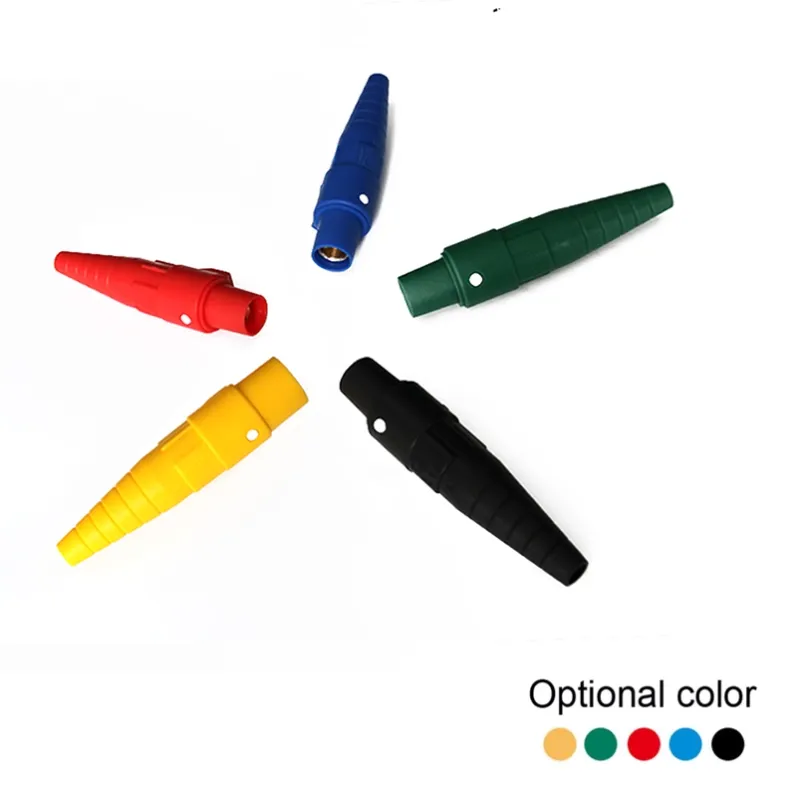

Different housing colors can also be used to distinguish cable polarity, equipment connections or different welding lines.
Available colors include:
- Red
- Black
- Blue
- Green
- Yellow
- Customized colors

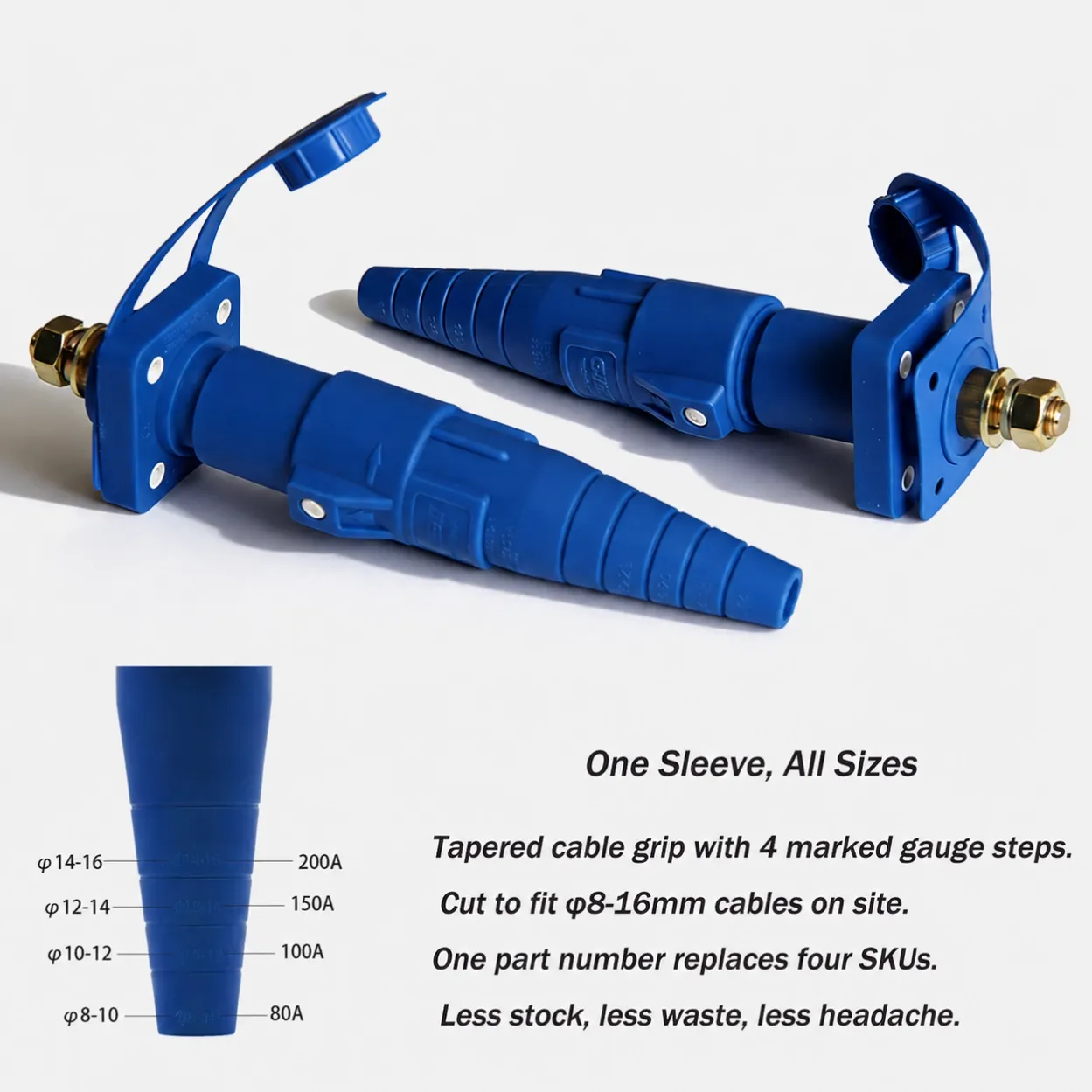

Multiple Sizes for Different Welding Cables
Different connector sizes are available to match commonly used welding cable cross sections.
Standard options include:
- 10–25 mm²
- 35–50 mm²
- 50–70 mm²
- 70–95 mm²
For OEM projects, please provide your required cable size and working current so that we can recommend the appropriate connector.
Applications
This welding cable connector is suitable for:
- MMA welding machines
- ARC welding machines
- Welding cable assemblies
- Electrode holders
- Ground clamps
- Welding equipment
- Metal fabrication workshops
- Industrial maintenance
- Machinery repair
- Welding equipment distribution
OEM & ODM Service
ALUX supplies welding cable connectors for distributors, wholesalers, welding equipment suppliers and OEM customers.
Customization options include:
- Housing color
- Product logo
- Model number
- Packaging
- Cable size
- Connector combinations
- Private label
Bulk orders and customized packaging are available.
How to Request a Quote
For an accurate quotation, please provide:
- Required cable size
- Connector type: plug, socket or pair
- Required current
- Quantity
- Housing color
- OEM logo or packaging requirements
Looking for welding cable connectors for distribution or OEM projects? Contact ALUX for specifications, samples and bulk pricing.
