Product classification: Pin type insulators

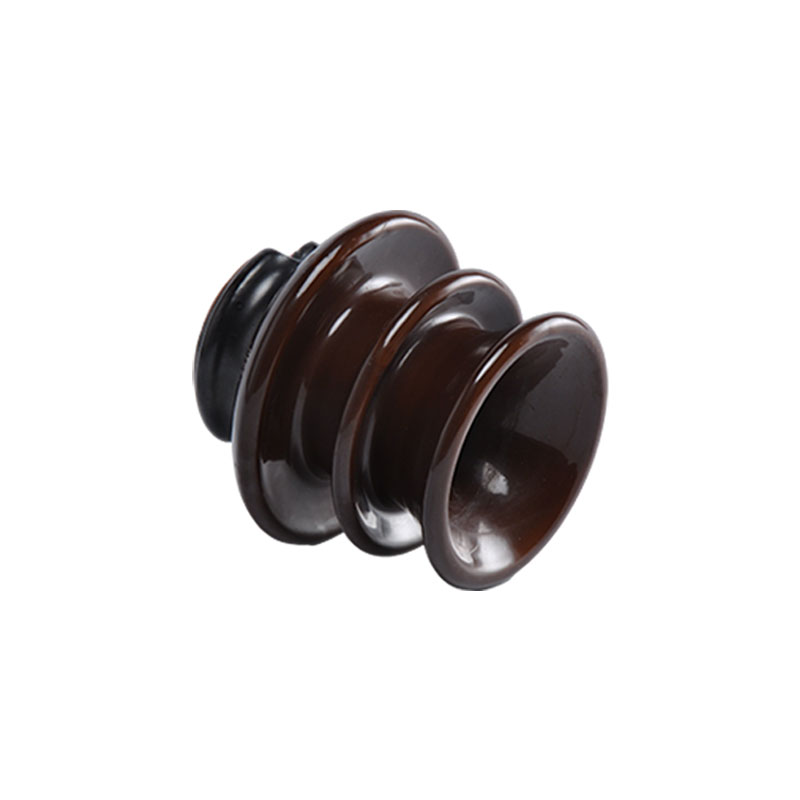

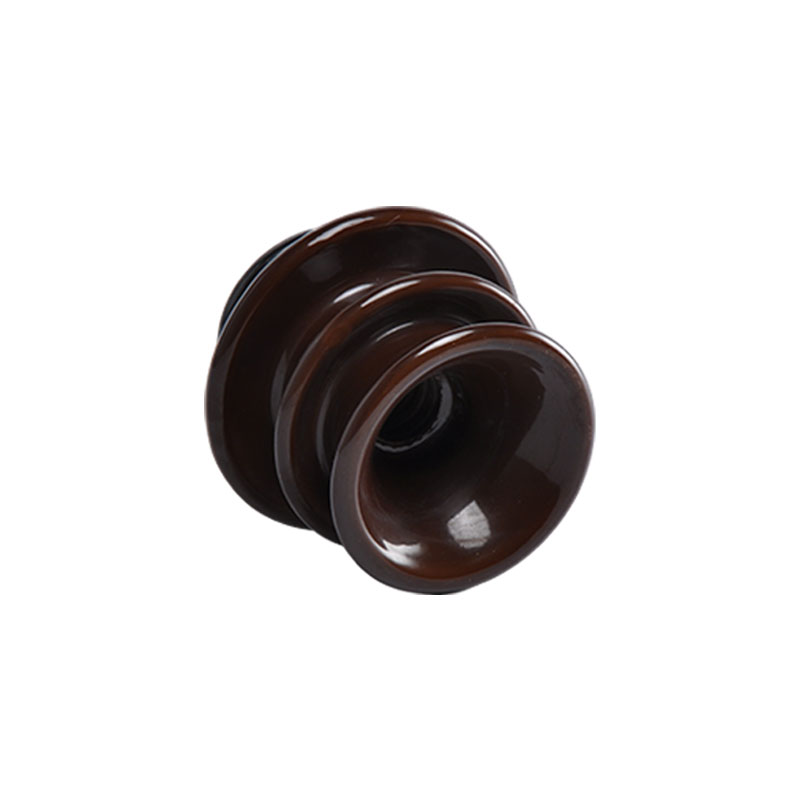

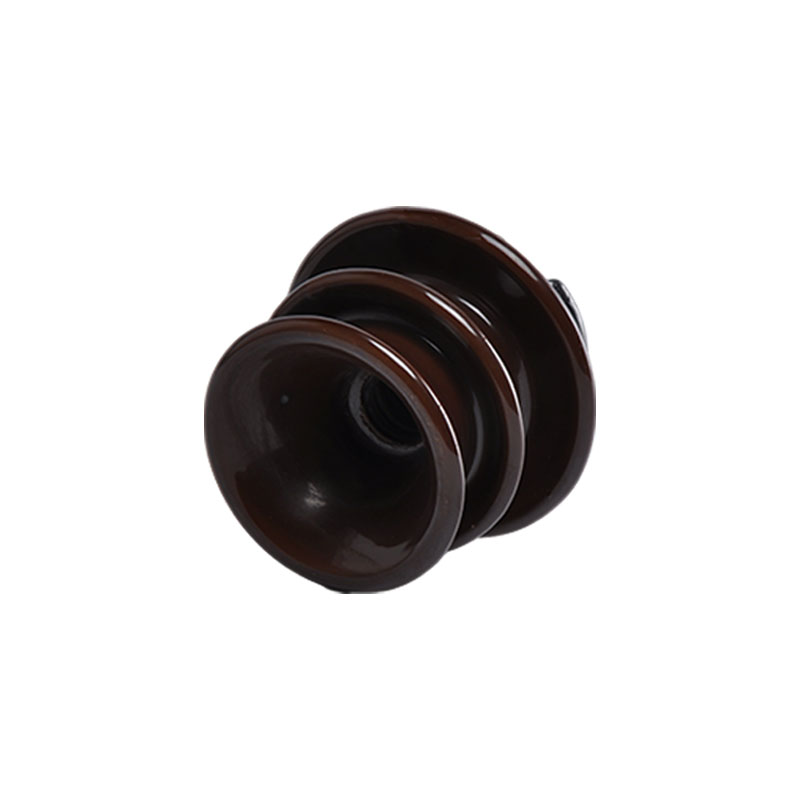

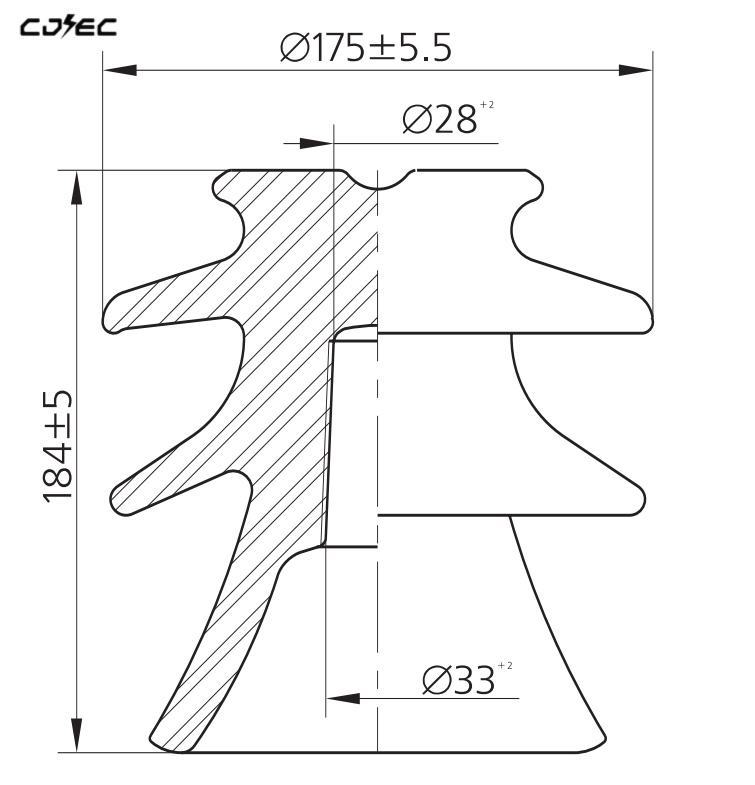

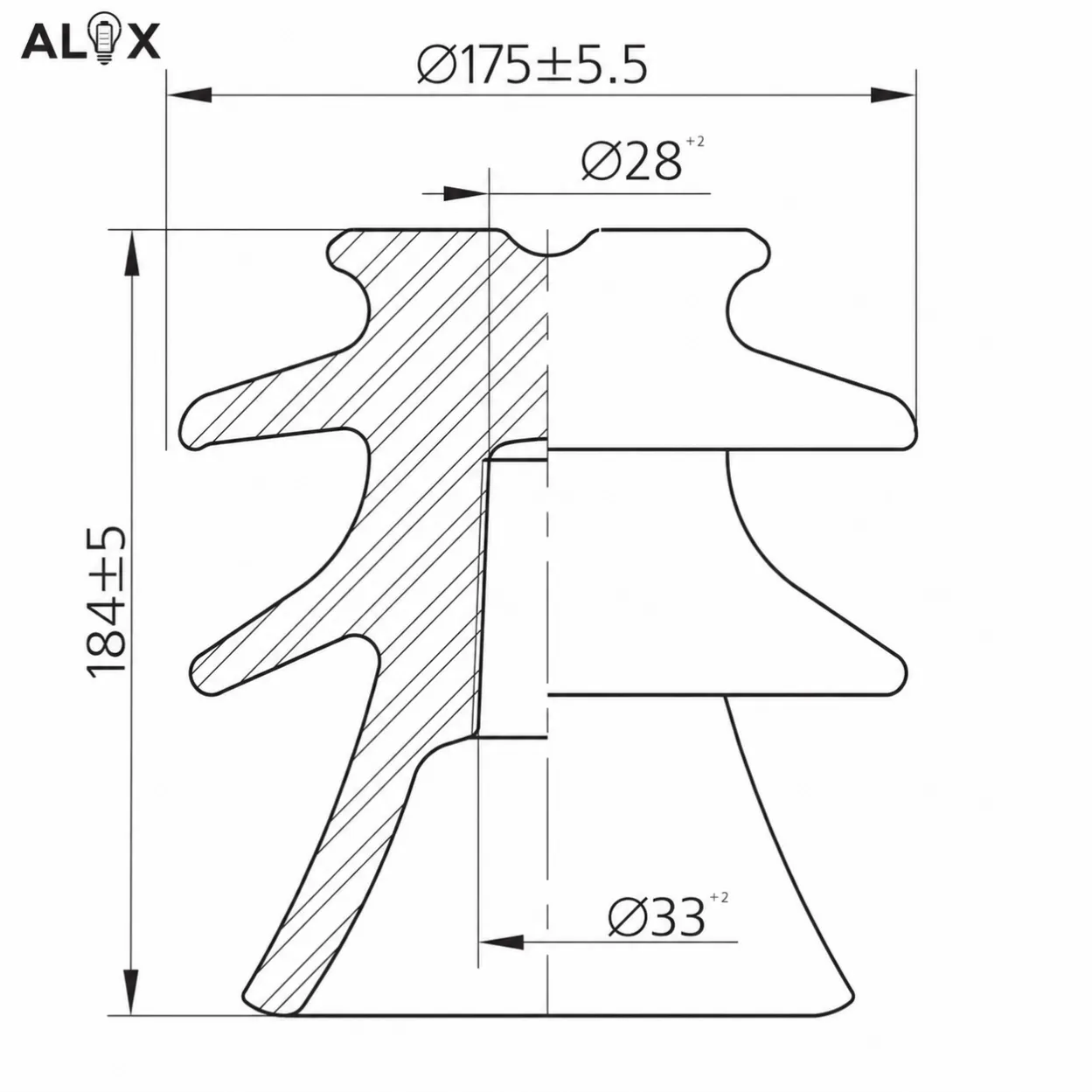

Pin type porcelain insulators | ||
type | | P-11-Y |
Dimensions | ||
Diameter | mm | 135 |
Height | mm | 140 |
Total creepage distance | mm | 254 |
Protected creepage distance | mm | 102 |
Recommended pin height | mm | 152 |
Mechanical Values | ||
Cantilever strength | kn | 11 |
Electrical Values | ||
Type application voltage | kv | 11 |
Power frequency dry flashover voltage | kv | 75 |
Power frequency wet flashover voltage | kv | 50 |
50% impulse flashover voltage,positive | kv | 115 |
50% impulse flashover voltage,negative | kv | 150 |
Power frequency puncture voltage | kv | 150 |
Radio influence Voltage Data | ||
Test voltage RMS to ground | kv | 15 |
Maximum RIV at 1000kHz | μv | 100 |
Packing and Shipping Data | ||
Net weight,approximate | kg | 1.8 |
