OVERVIEW

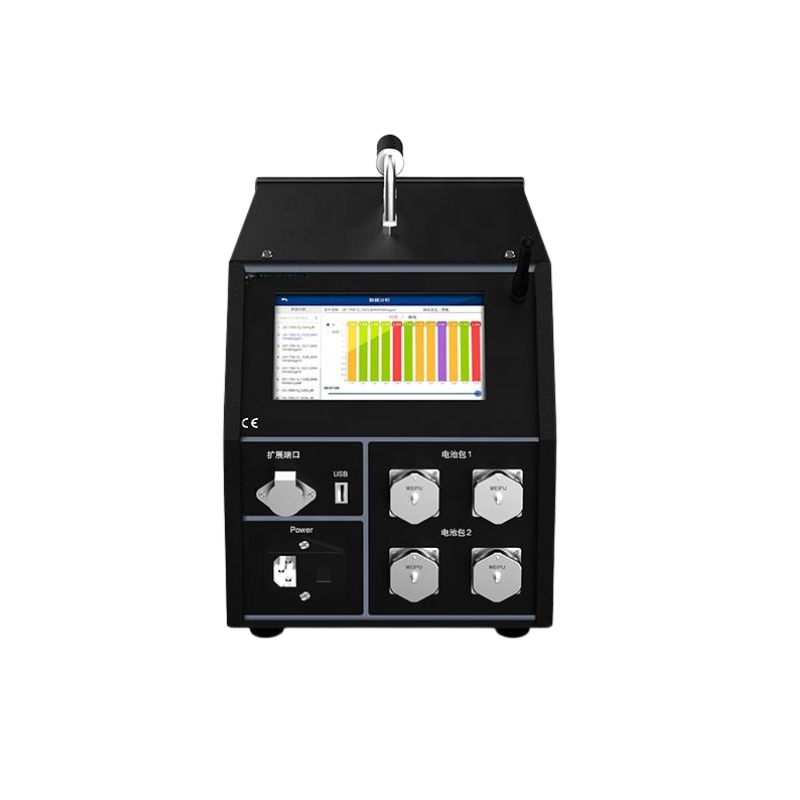

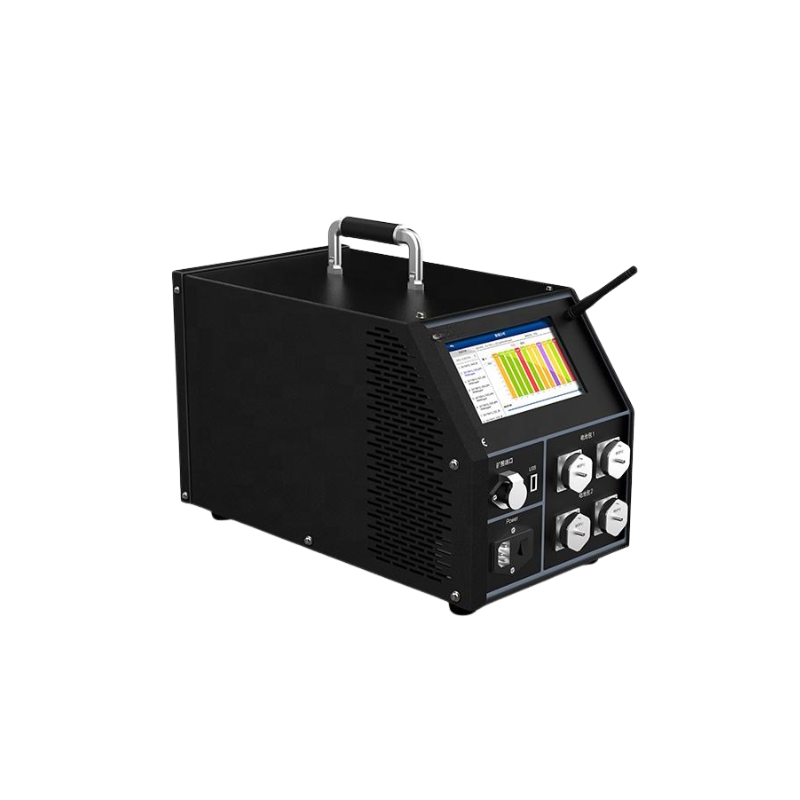

ALUX ALIFG-CT series tester is an intelligent and efficient lithium battery equalization maintenance instrument, which is used to quickly solve the problem of inconsistent voltage of lithium battery pack. Meanwhile it supports making the voltage difference of any battery, which can be used for research and development experiments to simulate what problems will occur when the battery reaches the maximum voltage difference under harsh working conditions. It is suitable for various types of lithium battery packs and is the best tester for battery manufacturers and distributors.
APPLICATION
Battery Manufacturers: after-sales, warehousing, TVC testing, QA and other battery testing
Automobile Assembly Plants: battery maintenance
4S Dealership: after-sales maintenance in module charging, discharging and quick matching
FEATURE
-One Machine with Multifunction: wide range design, suitable for battery packs’ discharge, charge and activation test for different voltage levels
-Multiple Discharge Modes: high efficiency aerospace load materials and advanced control technology to ensure discharge accuracy
-High-Efficiency Charging: complete three-stage charging mode (constant current - constant voltage - floating charge) to improve charging efficiency
-Battery Pack Activation: freely set charge and discharge rules, activation times, and effectively increase battery capacity
-Wireless Cell Voltage Recording: wireless monitoring and acquisition technology is used to record each cell voltage
| | | | |
| | | | |
| | | | |
| |
| |
| |
| | | | |
| |
| |
| WIFI, BT (WIFI antenna external) |
| constant current charging + constant voltage charging |
| constant current discharge (constant power discharge and constant resistance discharge are optional) |
| | | | |
| | | | |
Functional Characteristics
Discharge-Charge Balance: independent channel design supports detecting and equalized charging or discharging cells, ensuring each cell will not be overcharged or over-discharged.
Wide Applications: 5V voltage range suitable for cell balancing of li-ion battery module/pack with different voltage levels on the market.
Calibration Correction: the voltage and current values measured by the device can be calibrated and corrected at any time to ensure measurement accuracy.
Presetting Function: provides equalization test parameter preset function, simplify the operation and speed up the test.
Voltage Clamped: constant voltage and reduces current, ensuring the cell voltage is infinitely close to the target value during the test.
Multiple-protection: It supports providing various test thresholds and adequate protection for different abnormal conditions during the test process. The system triggers the automatic termination of the test; the LCD prompts and beep warning to assist users in proper processing.
7 inch LCD Touch Screen: A big-size touch LCD screen can display all real-time data and graphs, and the humanized input method and menu design simplifies the operating process.
