Extension Cords

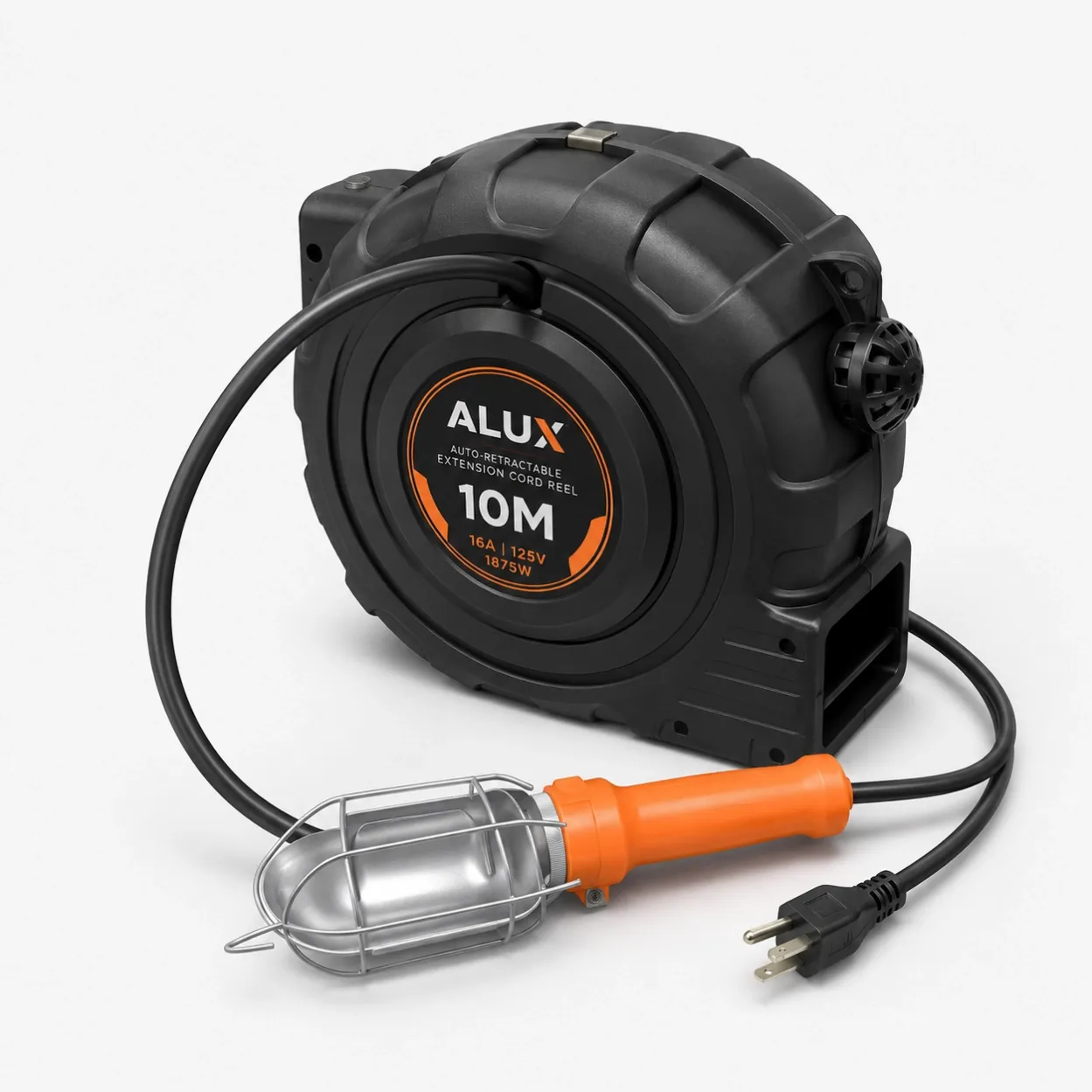

Auto-Retractable Extension Cord Reel with Inspection Light
Auto-retractable extension cord reel with wall or ceiling mounting, 180° swivel bracket and multiple 120V and 230V cable configurations.

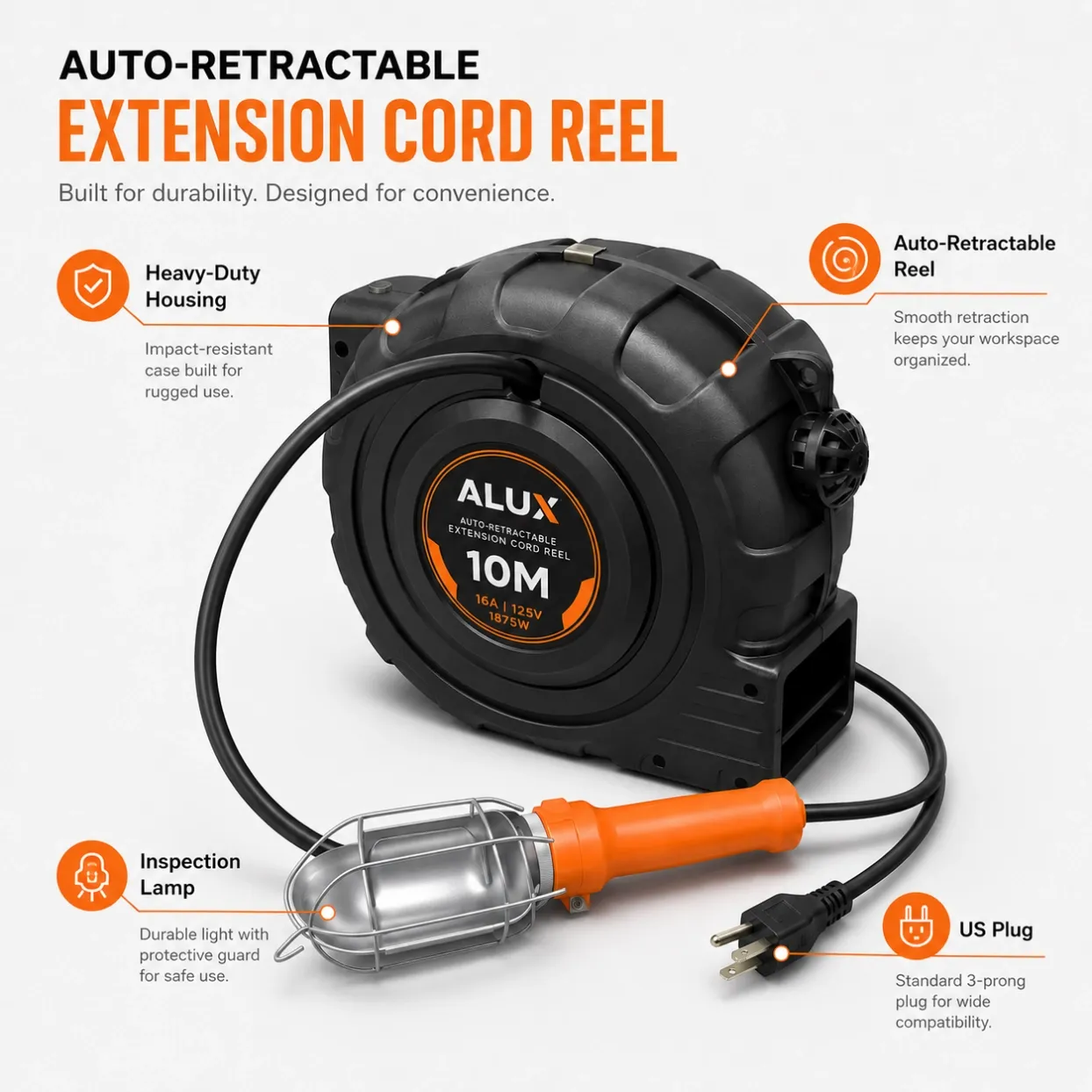

Auto-Retractable Extension Cord Reel
The ALUX auto-retractable extension cord reel provides organized and convenient power access for workshops, garages, factories and maintenance areas. A spring-driven rewind system automatically stores the cable after use, while the swivel mounting bracket supports flexible wall or ceiling installation.
Features
- Automatic Cable Rewind The spring-driven mechanism retracts the cable automatically after use, reducing manual winding and helping keep the work area organized.
- Self-Layering Cable Guide The internal guide helps distribute the cable evenly inside the reel during retraction.
- Wall or Ceiling Mounting The mounting bracket allows installation on a wall or ceiling to save floor and workbench space.
- 180° Swivel Design The reel can swivel up to 180 degrees, allowing the cable to follow the operator from different working positions.
- Durable PP Housing The polypropylene enclosure provides a practical and lightweight housing for workshops and general industrial applications.
- Multiple Cable Options Available in 120V and 230V configurations with different cable lengths, conductor sizes and cable types.
- Overload Protection Options Selected models are available with current protection or temperature protection according to the product configuration.
- OEM Customization Cable length, plug type, housing colour, label and packaging can be customized subject to order requirements.
Specifications
Voltage | Mini Power | Max Power | Housing Material | Wire Size | Cable Type | Input Length | Output Length | Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|
230V–50Hz | 1000W | 2300W | PP | 1.5 mm² | H07RN-F | 1 m | 20 m | Temperature: 56°C ±5°C | 8 kg |
230V–50Hz | 1000W | 2300W | PP | 1.5 mm² | H05VV-F | 1 m | 25 m | Temperature: 56°C ±5°C | 8.7 kg |
230V–50Hz | 1600W | 3200W | PP | 2.5 mm² | H05VV-F | 1 m | 20 m | Temperature: 56°C ±5°C | 11 kg |
230V–50Hz | 1600W | 3200W | PP | 2.5 mm² | H07RN-F | 1 m | 17 m | Temperature: 56°C ±5°C | 10.5 kg |
120V | N/A | N/A | PP | 12 AWG | SJTOW | 1 m | 20 m | 15A Current Protection | 8 kg |
120V | N/A | N/A | PP | 14 AWG | SJTOW | 1 m | 25 m | 13A Current Protection | 8 kg |
120V | N/A | N/A | PP | 16 AWG | SJTOW | 1 m |
Suitable Applications
This automatic extension cord reel is suitable for:
- Automotive workshops and garages
- Factory maintenance areas
- Warehouses and production facilities
- Equipment repair stations
- Commercial service areas
- Construction and installation work
- Machine inspection and maintenance
- Portable inspection-light applications
- Wall-mounted or ceiling-mounted power access
Who Is This Product For?
The product is suitable for:
- Electrical distributors
- Industrial equipment importers
- Workshop equipment suppliers
- Automotive service companies
- Factory maintenance teams
- Contractors and project buyers
- OEM and private-label brands
It is particularly useful for buyers who need a compact cable-management solution for repeated daily use.
Installation and Ordering Notes
- Confirm the voltage and frequency required for the destination market.
- Select the conductor size according to the intended electrical load.
- Do not exceed the rated power or current of the selected model.
- Install the mounting bracket on a stable wall or ceiling surface.
- Confirm plug type, socket type and cable standard before production.
- Cable length and product weight vary by model.
- Certification availability must be confirmed for the exact model.
Compliance
Selected models are available with CE and RoHS compliance.
Certification documents and applicability should be confirmed for the exact model and destination market before ordering.
OEM and Customization
Available options may include:
- Cable length
- Cable size and cable type
- Plug and socket configuration
- Housing colour
- Product label
- Customer logo
- Warning labels
- Barcode labels
- Carton design
- Shipping marks
Customization and minimum order quantity depend on the selected configuration.
