ANSI 54-2 High Tension Porcelain Stay Insulator
ANSI 54-2 High Tension Porcelain Stay Insulator. Factory-direct OEM/private-label supply from Alux Electrical. Request a quote.
ANSI 54-2 High Tension Porcelain Stay Insulator

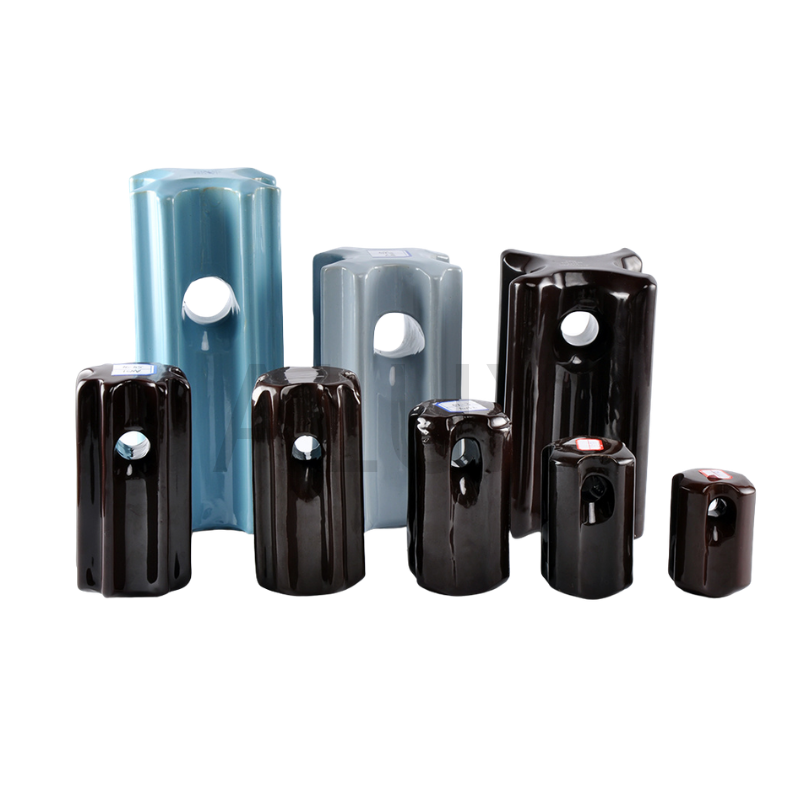

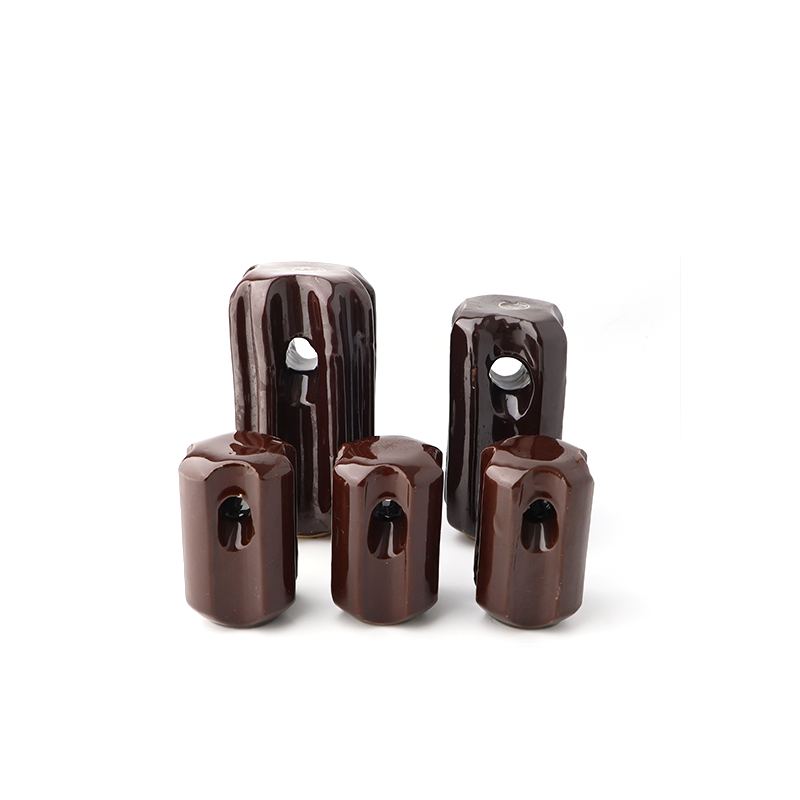

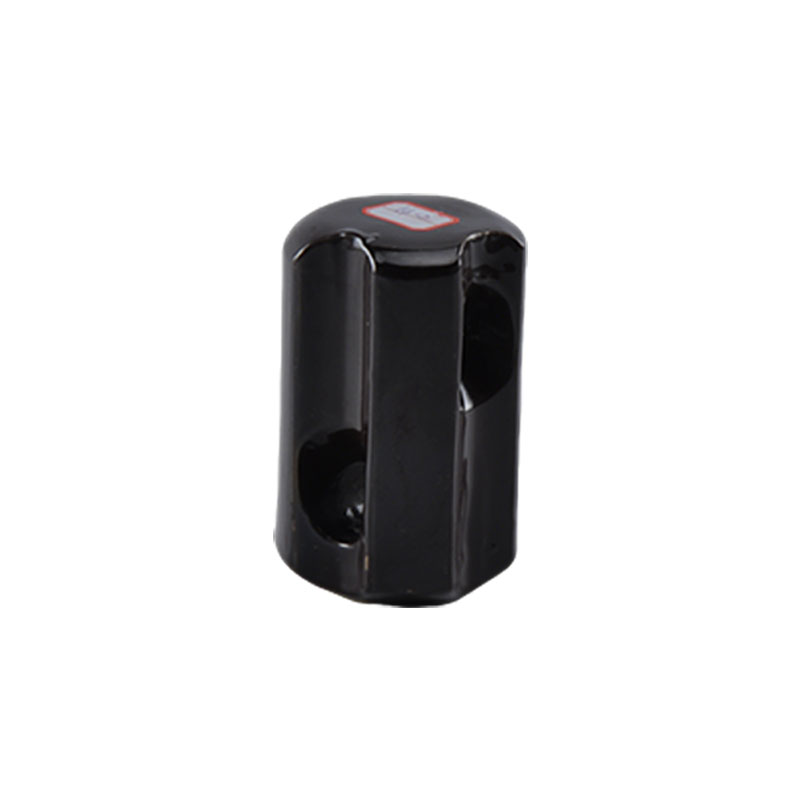

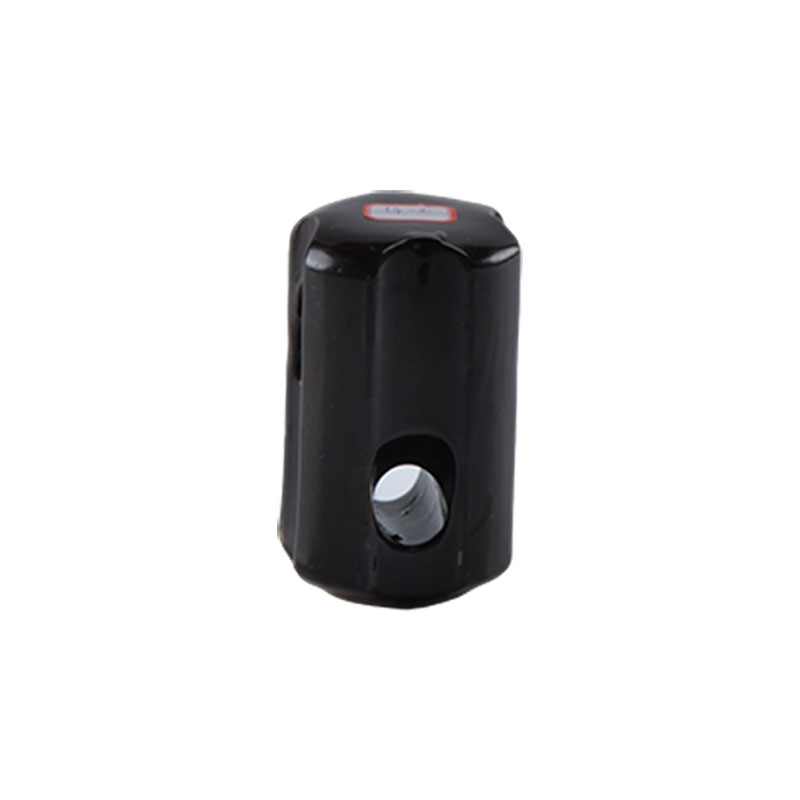

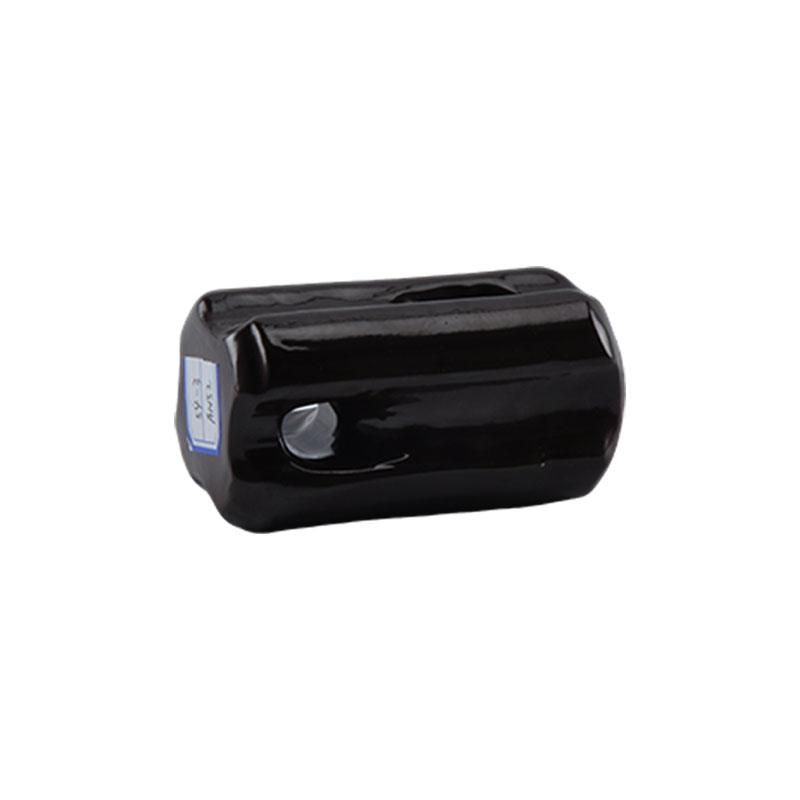

ANSI 54-2 is a high tension porcelain stay insulator, an ANSI standard pin type ceramic insulator with 55kN cantilever strength. It features 48mm creepage distance, 30KV dry/15KV wet flashover voltage, 108mm height and 0.65kg net weight for high-voltage power transmission systems.
Product Specifications
Stay insulators | | |
ANSI Class | | 54-2 |
Dimensions | | |
Height | mm | 108 |
Creepage distance | mm | 48 |
Mechanical Values | | |
Cantilever strength | kn | 55 |
Electrical Values | | |
Low frequency dry flashover voltage | kv | 30 |
Low frequency wet flashover voltage | kv | 15 |
Packing and Shipping Data | | |
Net weight,approximate | kg | 0.65 |
