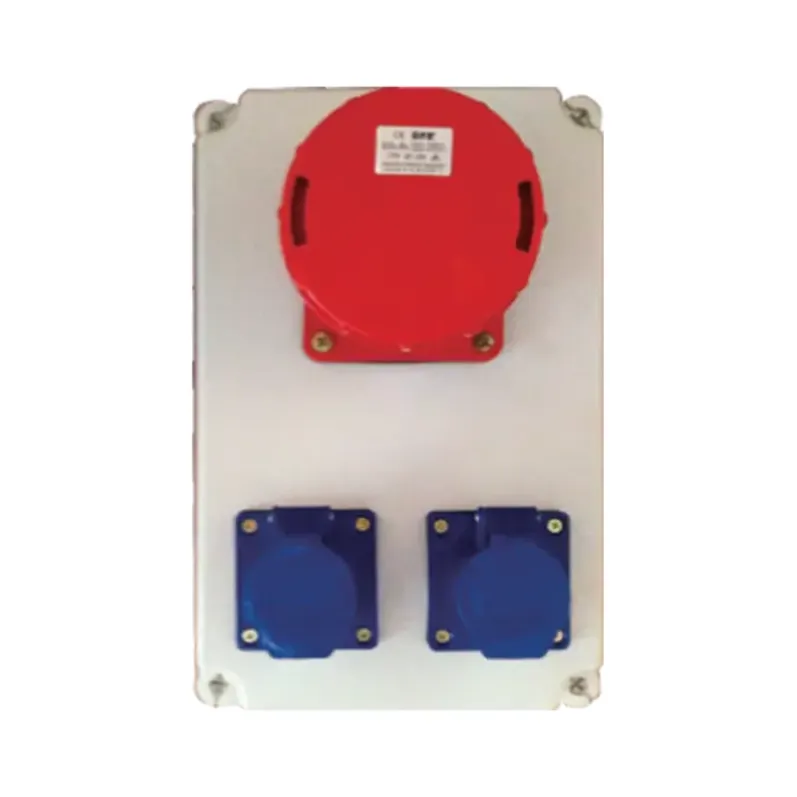

ALX-FN-335S Heavy Duty Wall Mounted Socket Box 340x220x150mm
ALX-FN-335S Heavy Duty Wall Mounted Socket Box 340x220x150mm, part of the ALX-FN industrial socket box family. Impact resistant housing, sealed outlets and glanded cable entry, ready for site and workshop power distribution.
The ALX-FN-335S is a wall mounted industrial socket box: the sockets, switches and wiring terminals are built into one enclosure that mounts flat on the wall, so the power point is finished, labelled and ready to use instead of being assembled on site from loose parts.
Technical Specifications
Item | Detail |
Product code | ALX-FN-335S |
Series | ALX-FN Industrial Socket Box |
Type | Wall mounted socket box |
Outline dimensions | 340x220x150 mm |
Ingress protection | Weatherproof enclosure (rating as marked on the product label) |
Housing | Impact resistant plastic, light grey or colours as shown |
Mounting | Wall mounted, screw fixed |
Supply entry | Glanded cable entry |
Outline dimensions and configuration are taken from the product drawing; confirm the exact socket arrangement and rated values on the nameplate before ordering. Ask us for the current dimension drawing if your panel layout depends on it.
Design Features
- Sockets, switching and cable entry are pre-assembled in one enclosure.
- Wall fixing points and cable glands are positioned for a flat, tidy installation.
- Gasketed lid and sealed entries keep dust and water out of the wiring compartment.
- Impact resistant housing takes knocks from trolleys, ladders and daily site traffic.
- Front access to sockets means the box can be serviced without pulling it off the wall.
Model Options
Item | Detail |
This product | ALX-FN-335S |
Family | ALX-FN socket boxes - wall mounted, portable, mobile and handheld versions |
Ordering | State the product code and quantity; custom socket arrangements quoted on request |
Order by product code. Tell us the supply voltage and the socket arrangement you need and we will confirm the closest ALX-FN configuration, the lead time and the FOB price.
Applications
Workshop walls, plant rooms, assembly lines, car wash bays and outdoor building perimeters - anywhere fixed industrial sockets are needed and the wiring should be protected behind a lid.
