ALX-FN-314S Vertical Wall Mounted Socket Box 330x530x170mm
ALX-FN-314S Vertical Wall Mounted Socket Box 330x530x170mm, part of the ALX-FN industrial socket box family. Impact resistant housing, sealed outlets and glanded cable entry, ready for site and workshop power distribution.
The ALX-FN-314S is a wall mounted industrial socket box: sockets, switching and wiring terminals are built into one enclosure that mounts flat on the wall, so the power point is finished, labelled and ready to use instead of being assembled on site from loose parts.
Technical Specifications
Item | Detail |
Product code | ALX-FN-314S |
Series | ALX-FN industrial socket box |
Type | Wall mounted socket box |
Outline dimensions | 330x530x170mm |
Housing | Impact resistant plastic, colours as shown |
Mounting | Wall mounted, screw fixed |
Supply entry | Glanded cable entry |
Enclosure sealing | Gasketed lid and sealed socket covers; exact IP rating as marked on the product label |
Socket arrangement, rated current and enclosure rating are shown on the nameplate of the unit supplied. Tell us the outlet configuration and supply voltage you need and we will confirm the matching configuration, the lead time and the price.
Design Features
- Sockets, switching and cable entry are pre-assembled in one enclosure.
- Wall fixing points and cable glands are positioned for a flat, tidy installation.
- Gasketed lid and sealed entries keep dust and water out of the wiring compartment.
- Impact resistant housing takes knocks from trolleys, ladders and daily site traffic.
- Front access to sockets means the box can be serviced without pulling it off the wall.
Housings are supplied with the outlet arrangement shown; other combinations in the same housing are available on request.
Model Options
Item | Detail |
This product | ALX-FN-314S |
Family | ALX-FN socket boxes - wall mounted, portable, distribution and handheld versions |

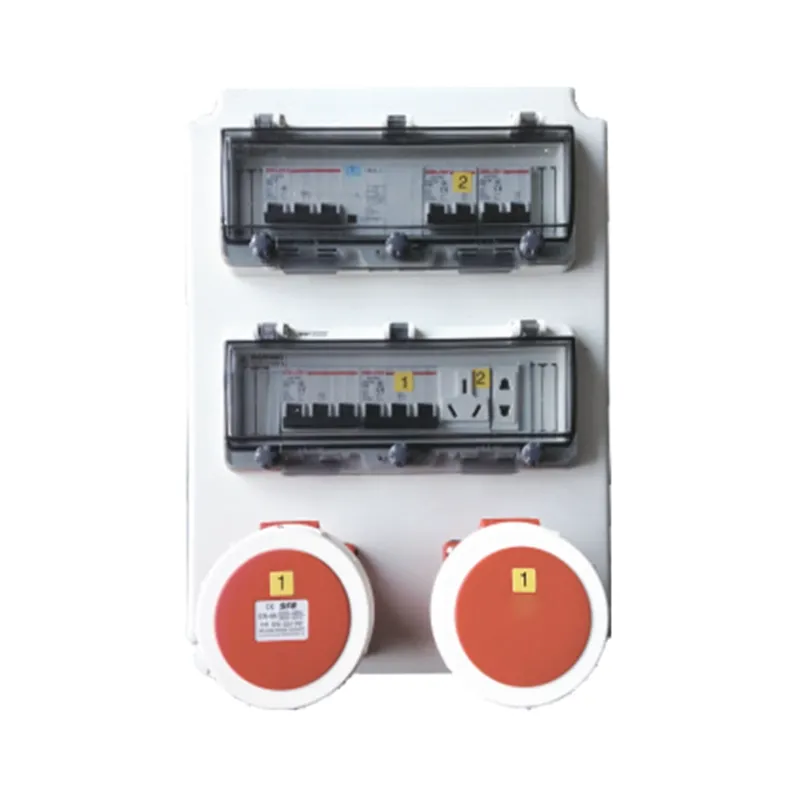

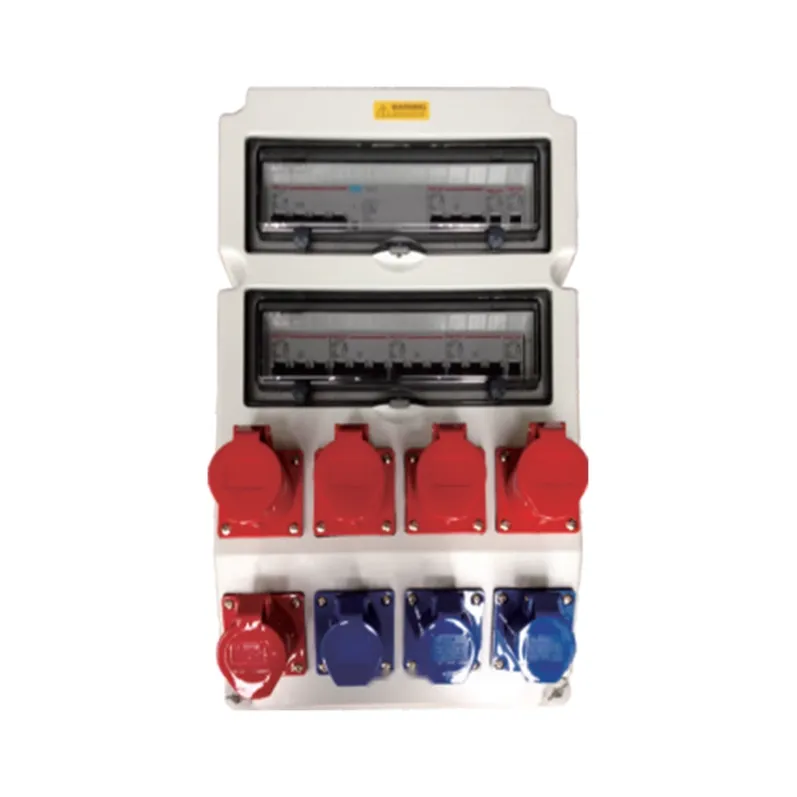

Configurations shown | 2 photos in the gallery above |
Ordering | State the product code and quantity; custom outlet arrangements quoted on request |
Order by product code. Send us the supply voltage and the socket arrangement you need and we will confirm the closest ALX-FN configuration, the lead time and the FOB price.
Applications
Workshop walls, plant rooms, assembly lines, car wash bays and outdoor building perimeters - anywhere fixed industrial sockets are needed and the wiring should stay behind a lid.
