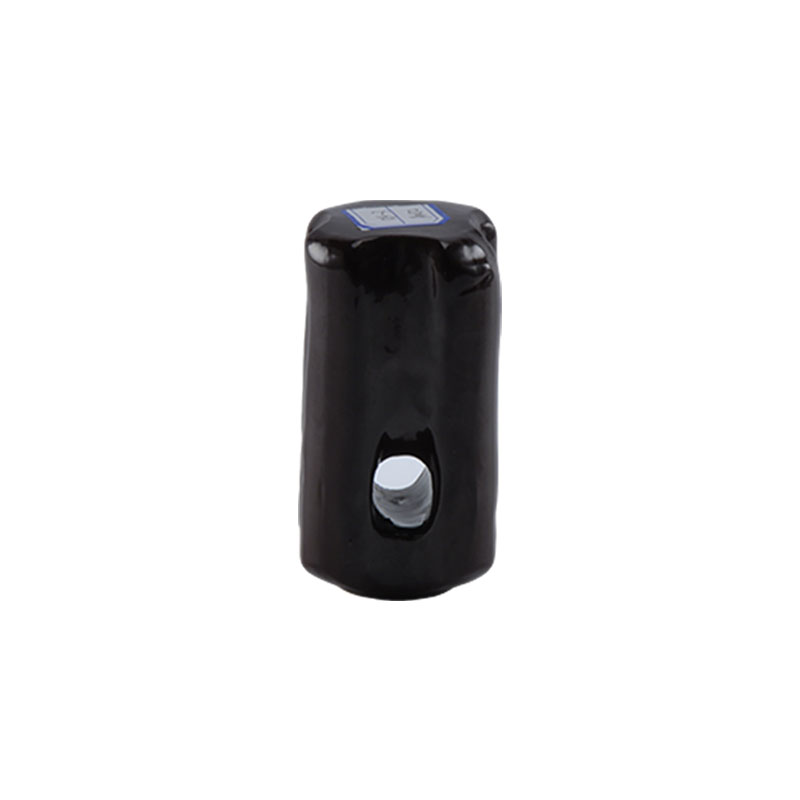

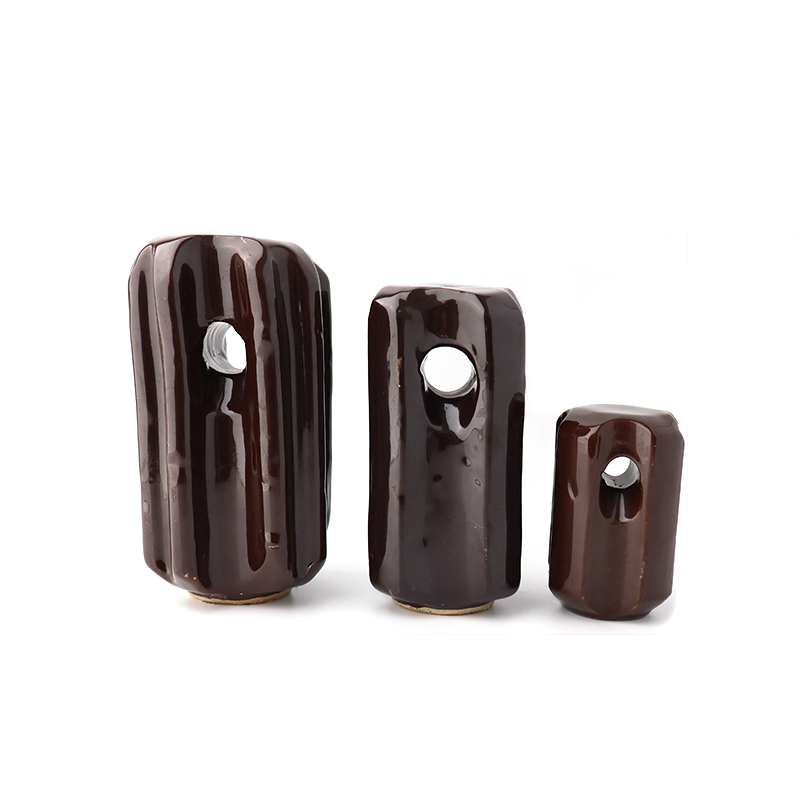

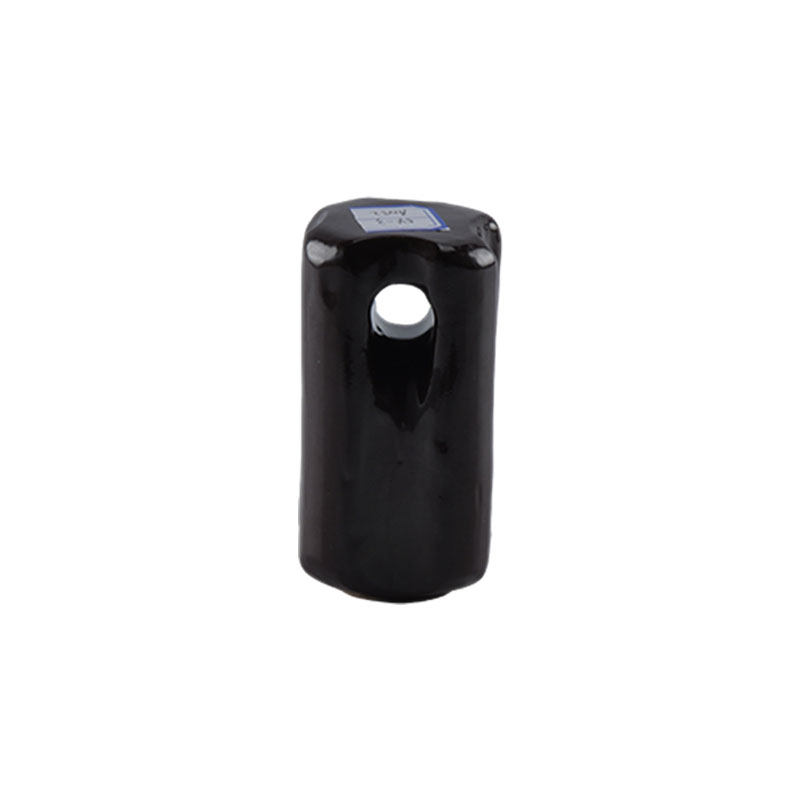

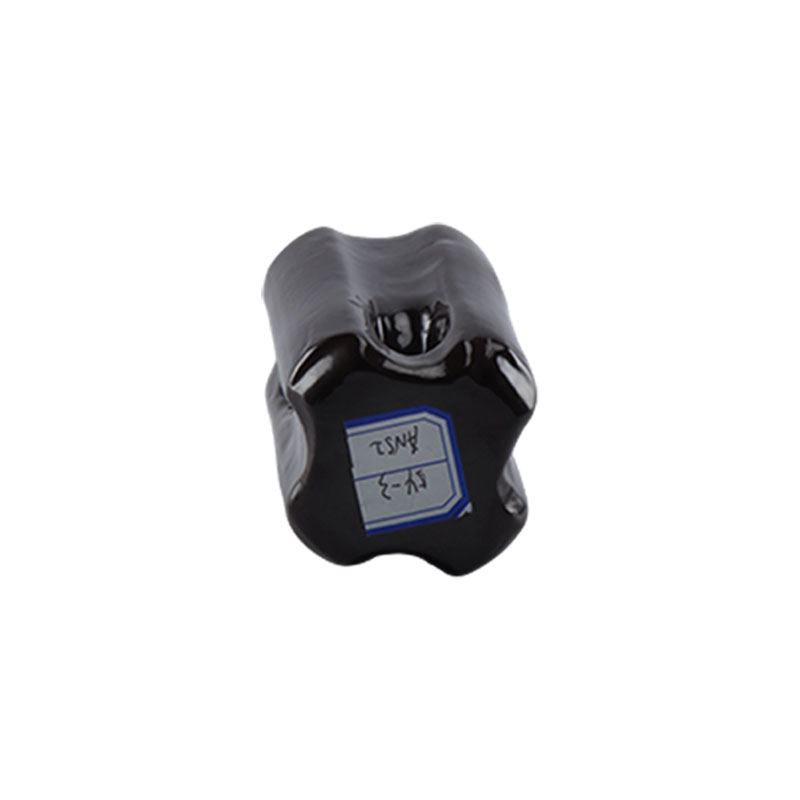

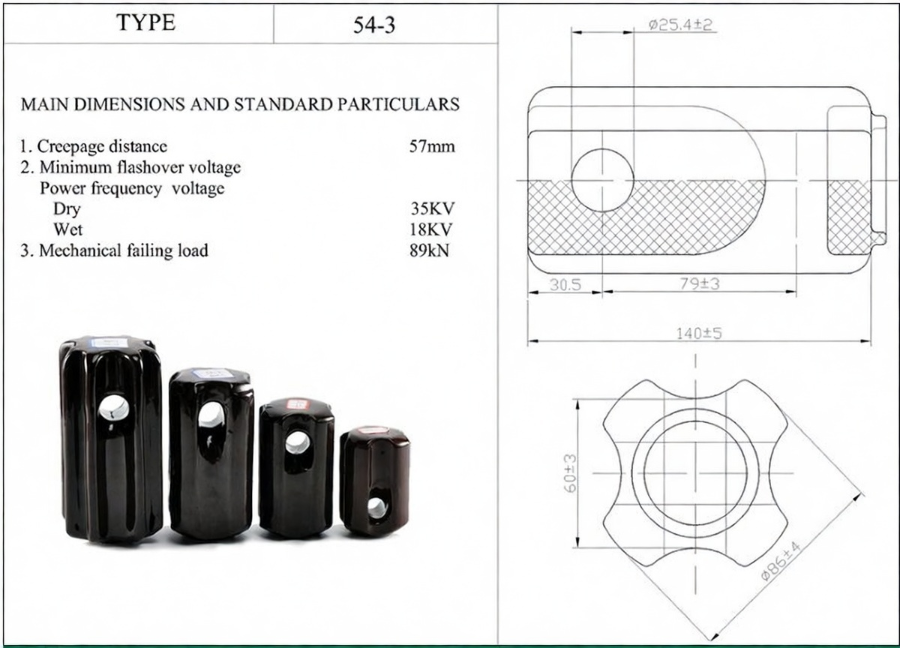

ALUX ANSI 54-3 High Tension Porcelain Stay Insulator

ANSI 54-3 is a high tension porcelain stay insulator, an ANSI standard pin type ceramic insulator with 91kN cantilever strength. It has 57mm creepage distance, 35KV dry/18KV wet flashover voltage, 140mm height and 1.20kg net weight for high-voltage power systems.

Contact Us
ALUX ANSI 54-3 High Tension Porcelain Stay Insulator

ANSI 54-3 is a high tension porcelain stay insulator, an ANSI standard pin type ceramic insulator with 91kN cantilever strength. It has 57mm creepage distance, 35KV dry/18KV wet flashover voltage, 140mm height and 1.20kg net weight for high-voltage power systems.

Product Specifications

Stay insulators
ANSI Class

Gy3
Gy4
54-1
54-2
54-3
54-4
Dimensions
Diameter
mm






Height
mm
216
280
89
108
140
172
Creepage distance
mm
118
126
41
48
57
76
Mechanical Values
Cantilever strength
kn
222
222
45
55
91
91
Electrical Values
Low frequency dry flashover voltage
kv
50
60
25
30
35
40
Low frequency wet flashover voltage
kv
35
40
12
15
18
23
Packing and Shipping Data
Net weight,approximate
kg
4.2
5.0
0.50
0.65
1.20
1.85
