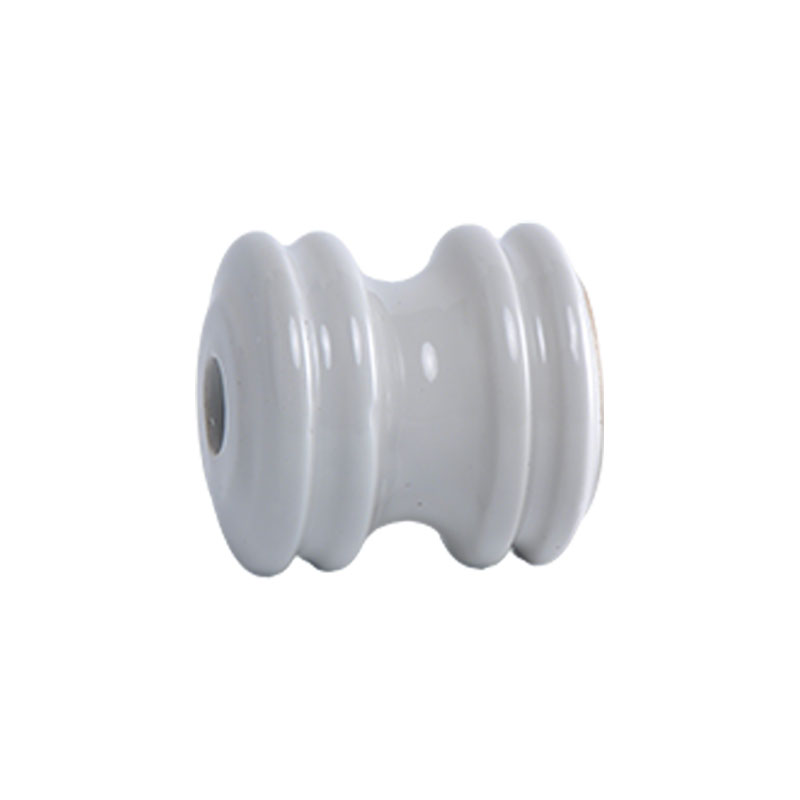

ALUX ANSI 53-3 Chinese Quality Manufacture spool insulators

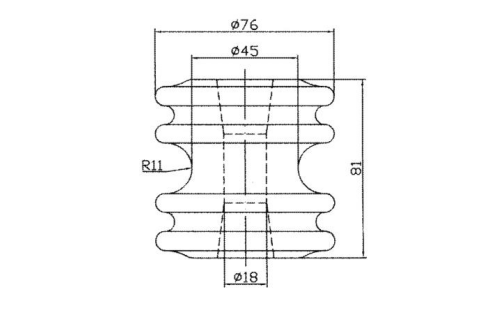

ANSI 53-3 Porcelain Spool Insulator: ANSI-compliant, made in China with 76×81mm dimensions and 0.6kg net weight.

Contact Us

ALUX ANSI 53-3 Chinese Quality Manufacture spool insulators



ANSI 53-3 Porcelain Spool Insulator: ANSI-compliant, made in China with 76×81mm dimensions and 0.6kg net weight. 25KV dry/12KV upright wet/15KV level wet flashover voltage, 18.2KN transverse strength. Certified, ideal for overhead power lines.
Product details
 Spool type insulators
ANSI Class
53-1
53-2
53-3
53-4
53-5
Dimensions
Diameter
mm
57
79
76
105
102
Height
mm
54
76
81
76
105
Mechanical Values
Tensile Strength
kn
9.1
13.6
18.2
20.5
27.3
Electrical Values
Low frequency dry flashover voltage
kv
20
25
25
25
35
Low frequency wet flashover voltage,vertical
kv
8
12
12
12
18
Low frequency wet flashover voltage,horizontal
kv
10
15
15
15
26
Packing and Shipping Data
Net weight,approximate
kg
0.22
0.55
0.60
1.15
1.20
