ALUX 0.4kV Pocelain Shackle Insulator with D-iron fittings

Product classification: Shackle insulators

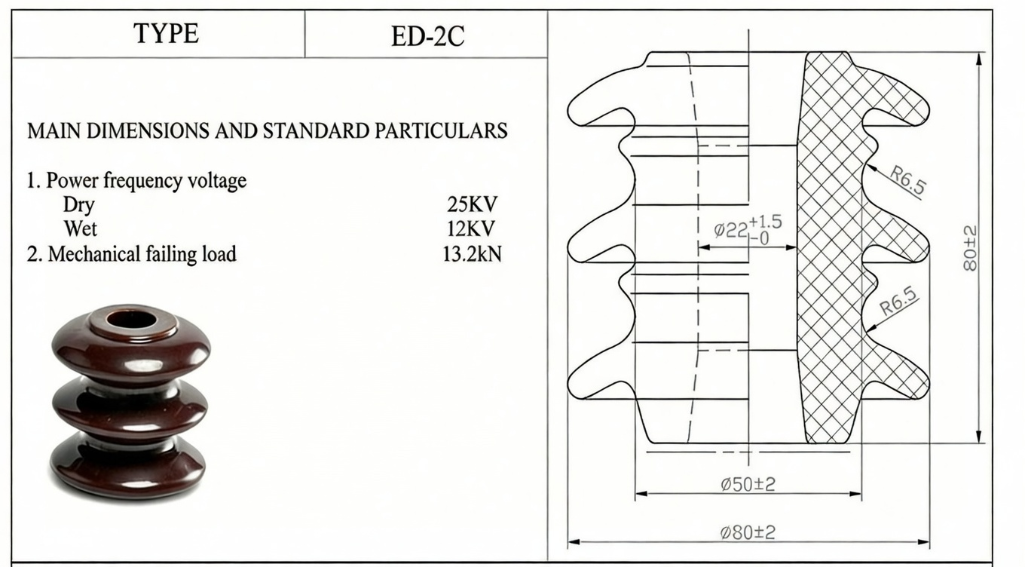

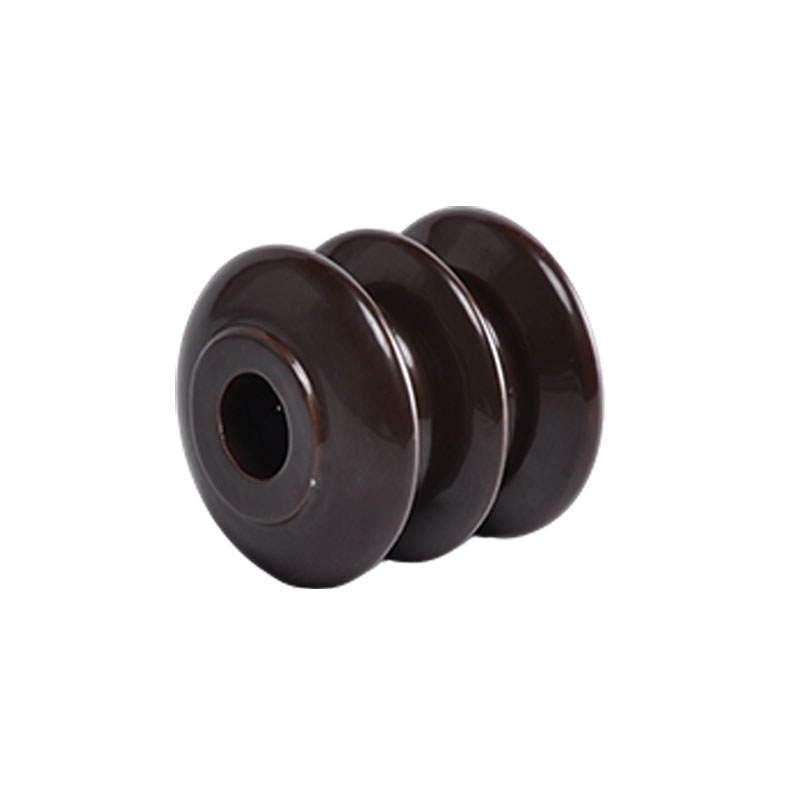

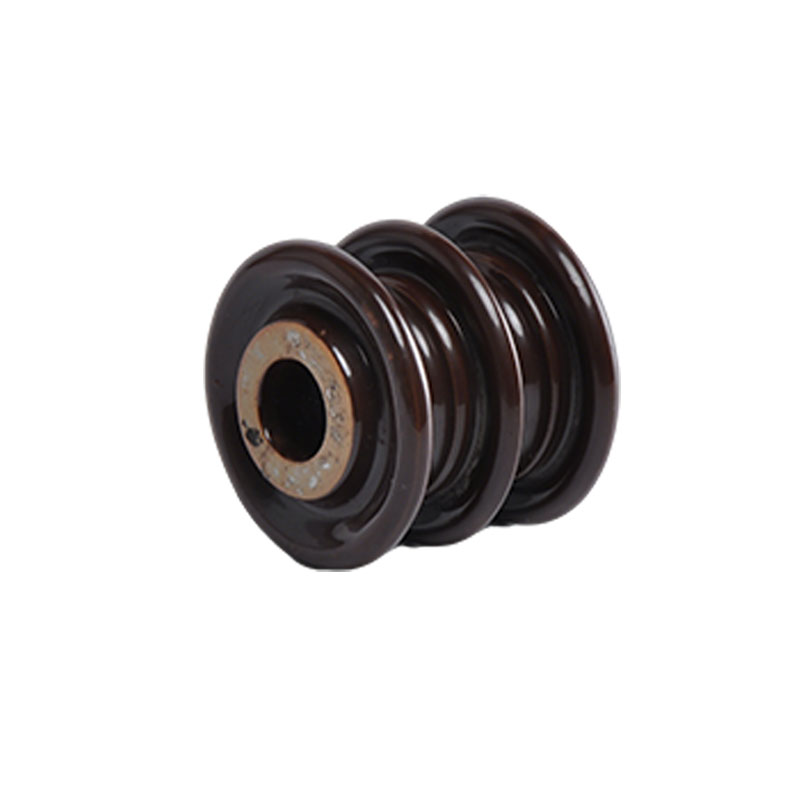

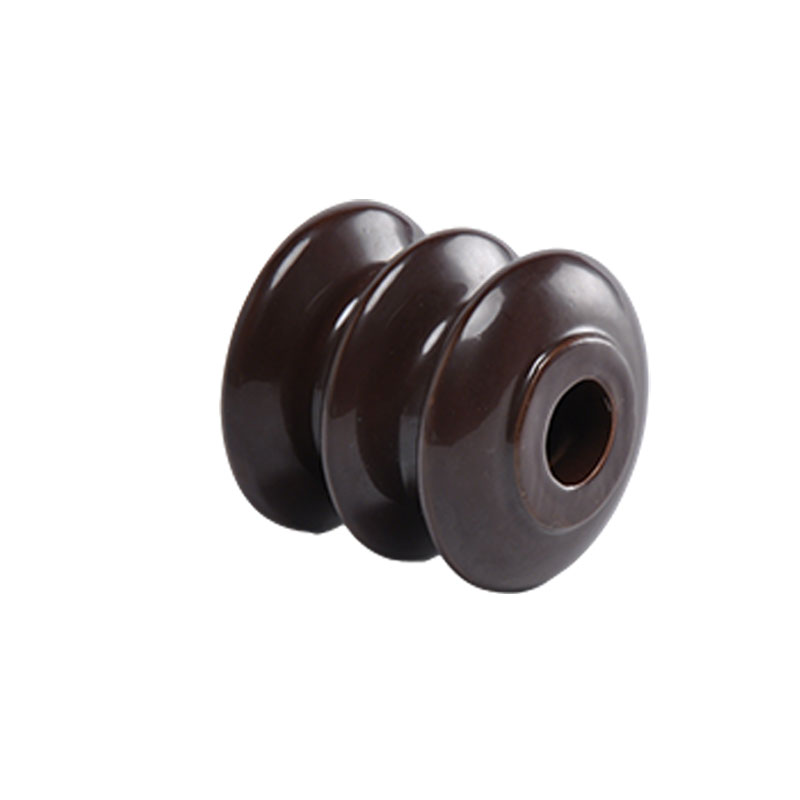

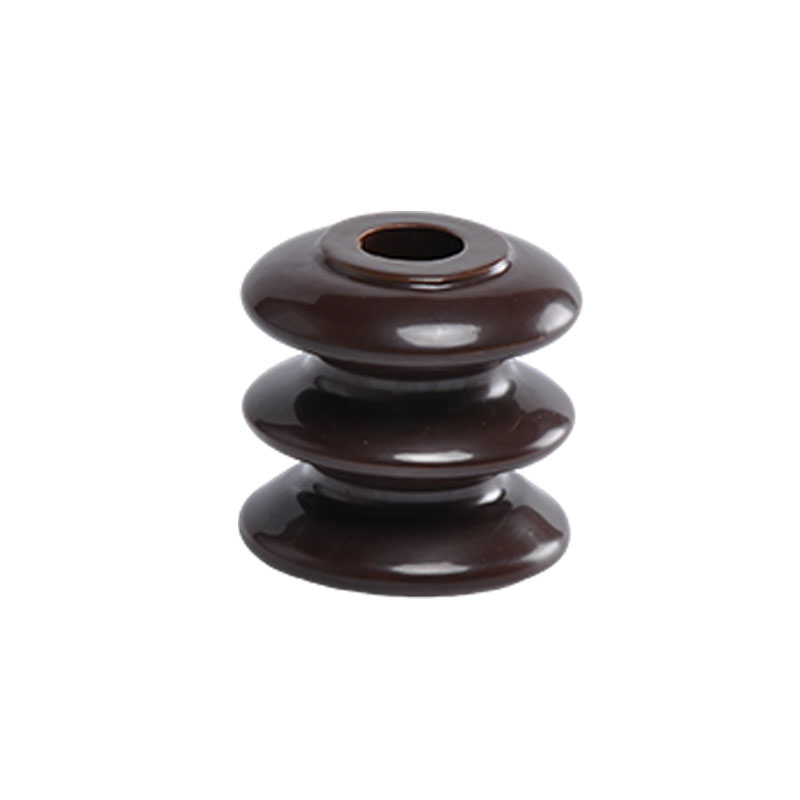

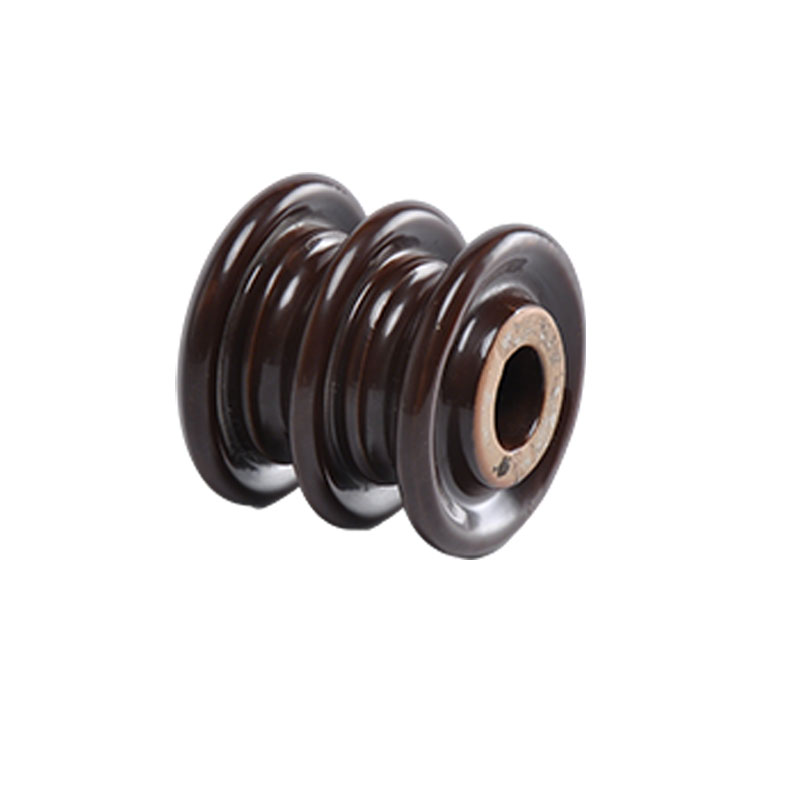

ALUX Low voltage Ceramic electronic components BS ED-2C

porcelain shackle insulators

are used at the end of distribution lines or at sharp turns where there is excessive tensile load on the lines. These insulators can be mounted either in the vertical or horizontal position.

Insulators are widely used devices, and their connecting fittings are also required to be interchangeable. In addition, the technical standards of butterfly insulators also require various electrical, mechanical, physical and environmental condition change tests on insulators according to different models and service conditions, as well as environmental condition change tests, so as to test their performance and quality.

Our services

Factory direct price

ANSI BS GB IEC DIN AS standard

Free samples

Timely delivery

Customer design

Parameter

Shackle insulators
Type		ED-1	ED-2	ED-2B	ED-2C	ED-3	ED-4
Dimensions
Leakage distance	mm	70	64	64	68	54	51
Mechanical Values
Transverse Strength	kn	13.6	11.4	11.4	11.4	9.1	9.1
Electrical Values
Low frequency dry flashover voltage	kv	30	25	25	25	18	15
Low frequency wet flashover voltage	kv	17	13	13	13	10	8
Packing and Shipping Data
Net weight,approximate	kg	0.60	0.45	0.50	0.50	0.25	0.20
