ALX-HB4-BP42 Waterproof Flush Push Button Switch | 22mm 1NC

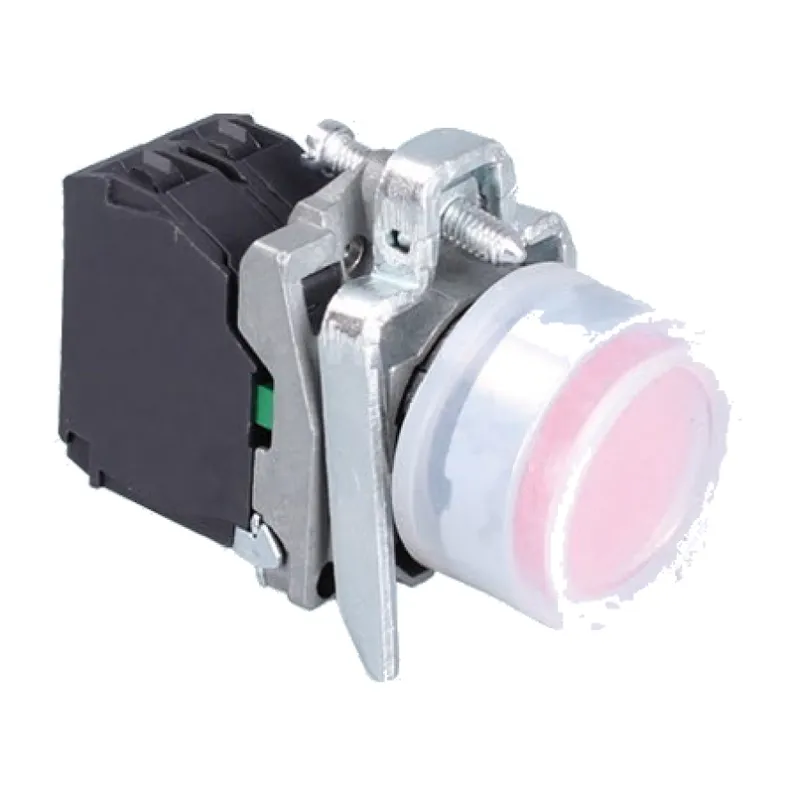

22 mm waterproof flush push button switch with transparent protective cover, 1 NC contact, momentary spring return, zinc alloy chrome bezel, screw terminals, 600 V AC 10 A.
The HB4-BP42 puts a transparent flexible cover over the flush button. The cover keeps coolant, washdown water, dust and metal swarf off the actuator, while the cap can still be pressed through it without lifting a lid. It is the version normally fitted on panels that get hosed down or sit next to a cutting zone.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm (22.3 mm cutout) |
Bezel / head material | Zinc alloy, chrome plated |
Contact housing | Plastic |
Contact configuration | 1 NC |
Operation | Momentary, spring return |
Actuator | Flush cap under flexible cover, 22 mm |
Actuator colour | Red |
Illumination | None |
Rated voltage / current | 600 V AC, 10 A (AC-15 duty) as marked on the contact block |
Termination | Screw terminals |
Front protection | Flexible transparent cover over the actuator |
Depth behind panel | 40 mm including cover and contact block |
The cover is a soft transparent boot that stays in place over the cap. It is pressed through, not hinged, so there is nothing to open before operating the switch.
Design Features
- Transparent flexible cover over the cap: keeps coolant, washdown water and swarf off the actuator without a hinged lid to open
- The button is operated straight through the cover, so the panel can stay closed during washdown
- Normally-closed contact, spring return, so the circuit is made until the cap is pressed
- Chrome-plated zinc alloy bezel and metal clamping ring hold the cover flat against the panel face
- 40 mm depth behind the panel including cover and contact block, which suits shallow enclosures
Model Options
Model | Colour | Contact |
HB4-BP42 | Red | 1 NC |
HB4-BP11 | White | 1 NO |
HB4-BP21 | Black | 1 NO |
HB4-BP31 | Green | 1 NO |
HB4-BP51 | Yellow | 1 NO |
HB4-BP61 | Blue | 1 NO |
The cover, bezel and contact block are supplied as one assembly; replacement covers are quoted separately.
Applications
Food and beverage lines, machine-tool panels exposed to coolant, car-wash and washdown bays, outdoor pump stations and dusty process plant.
