ALX-HB4-BT42 Mushroom Head Push-Pull Switch | 22mm 40mm 1NC

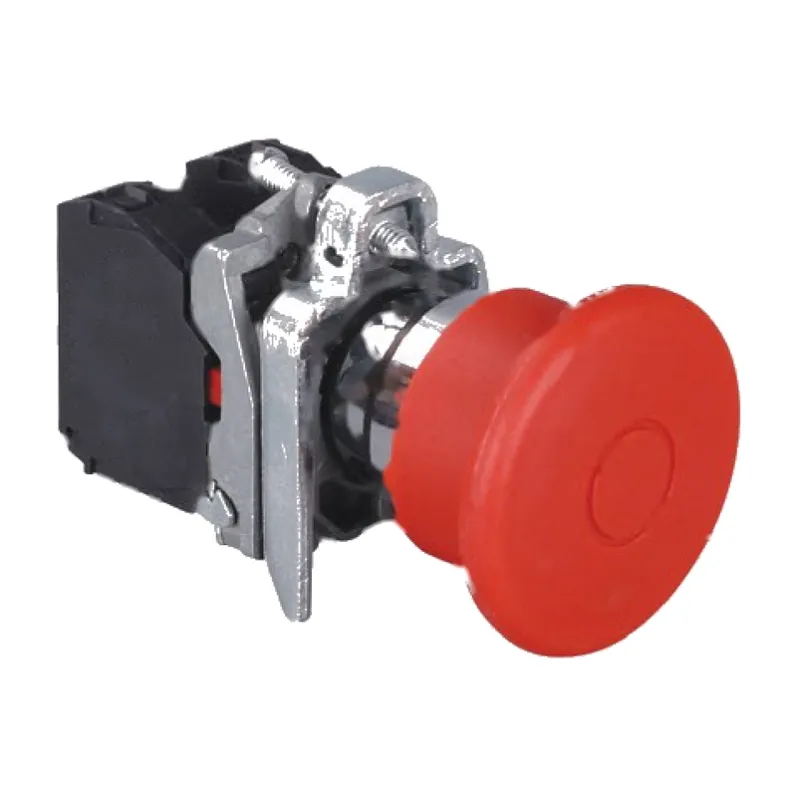

22 mm mushroom head push-pull switch, 40 mm red cap, 1 NC contact, latch by pushing and release by pulling the cap, zinc alloy chrome bezel, screw terminals, 600 V AC 10 A.
The HB4-BT42 uses a push-pull actuator: push the cap and the contact latches; pull it back and the contact resets. Because the release does not need a twist or a key, it is the quickest of the maintained mushroom types to reset, which suits stop functions that an operator has to clear many times a shift.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm (22.3 mm cutout) |
Bezel / head material | Zinc alloy, chrome plated |
Contact housing | Plastic |
Contact configuration | 1 NC |
Operation | Maintained, push-pull |
Actuator | Mushroom head, 40 mm dia. |
Actuator colour | Red |
Illumination | None |
Rated voltage / current | 600 V AC, 10 A (AC-15 duty) as marked on the contact block |
Termination | Screw terminals |
Push to latch, pull to release. For a twist release see HB4-BS442; for a key release see HB4-BS142.
Design Features
- Push-pull action: latch with a press, release with a straight pull, no twist and no key
- Normally-closed contact holds the machine stopped until the cap is pulled back out
- 40 mm cap with a moulded grip shoulder that gives the fingers something to pull against
- Chrome-plated zinc alloy bezel and metal clamping ring keep the actuator square through repeated push-pull cycles
- Clip-on screw-terminal contact block, replaceable without removing the bezel from the panel
Model Options
Model | Cap diameter | Contact |
HB4-BT42 | 40 mm | 1 NC |
The same bezel accepts the twist-release (BS442) and key-release (BS142) actuators if the reset method needs to change later.
Applications
Fault-stop and cycle-stop functions on packaging, woodworking and textile machines, and panels where the operator has to clear a stop repeatedly during a shift.
