ALX-HB4-BK12 Illuminated Two Position Selector | 22mm

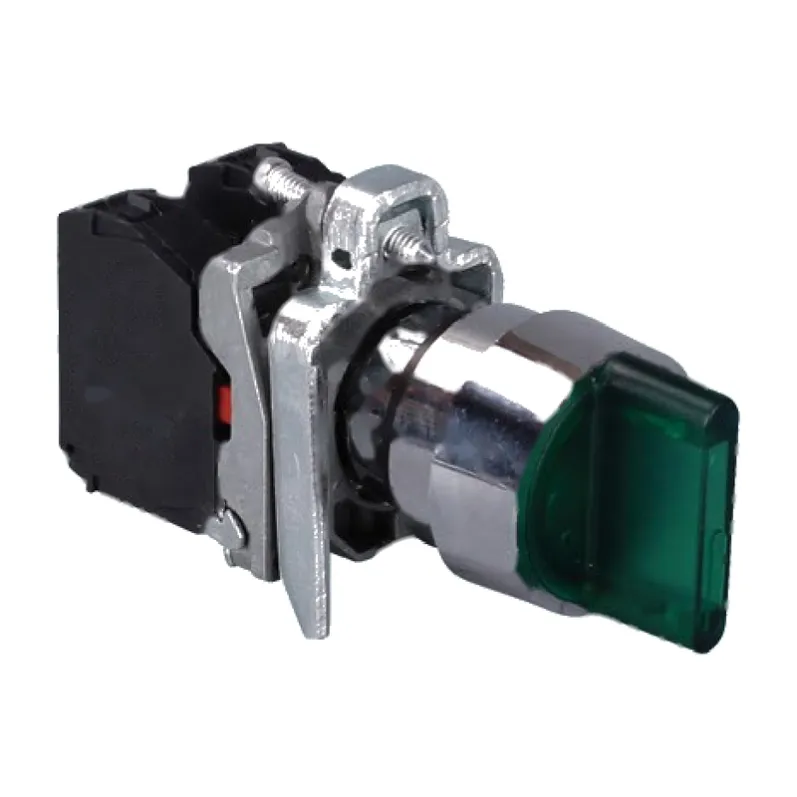

22 mm illuminated two position selector switch, LED illuminated knob, red / green / yellow / blue, 6-220 V, 1 NO + 1 NC contact, zinc alloy chrome bezel, screw terminals.
The HB4-BK12 combines a two position selector with an illuminated knob: the selected position is shown by the lamp as well as by the knob angle. On a panel with several selectors it removes the guesswork about which mode is active, and it lets a remote operator see the state from a distance.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm (22.3 mm cutout) |
Bezel / head material | Zinc alloy, chrome plated |
Contact housing | Plastic |
Contact configuration | 1 NO + 1 NC |
Operation | Two position, maintained |
Actuator | Illuminated rotary knob, 22 mm |
Actuator colour | Red, green, yellow, blue |
Illumination | LED, 6-220 V |
Rated voltage / current | 600 V AC, 10 A (AC-15 duty) as marked on the contact block |
Termination | Screw terminals |
Positions | 2 (left / right) |
Lamp connection | Separate lamp terminals on the contact block |
The knob is illuminated; the legend ring is lit in the colour of the model. Three position versions are listed under HB4-BK13.
Design Features
- Knob is lit, so the selected position is visible from a distance and in low light
- Two position with a detent at each end, 1 NO + 1 NC contact
- LED illumination for 6-220 V, with separate lamp terminals so indication can follow a different circuit
- Chrome-plated zinc alloy bezel with anti-rotation collar
- Contact blocks clip on from the rear and can be changed without removing the bezel
Model Options
Model | Colour | Lamp | Contact |
HB4-BK1235 | Red | LED 6-220 V | 1 NO + 1 NC |
HB4-BK1245 | Green | LED 6-220 V | 1 NO + 1 NC |
HB4-BK1255 | Yellow | LED 6-220 V | 1 NO + 1 NC |
HB4-BK1265 | Blue | LED 6-220 V | 1 NO + 1 NC |
Non-illuminated version of the same selector: HB4-BD21 group.
Applications
Mode selection on automated lines, pump duty selection, and panels where the active state has to be visible from the walkway.
