ALX-PB22-F11-J Flat round Metal Push Button Switch | 22mm 11
22 mm flat round metal push button switch, 1 NO + 1 NC contact, non-illuminated, plug-in pin (j) termination, IP65/IP67, 250 V AC 5 A / 10 A / 18 A. OEM branding and bulk supply from ALUX.

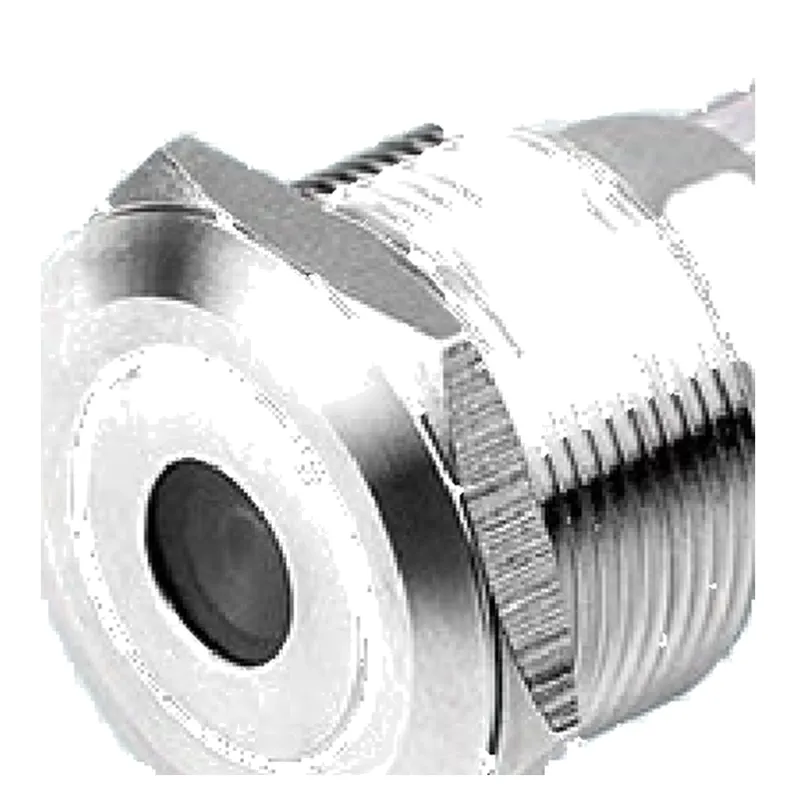

A 22 mm flat round metal push button switch built for panel mounting in industrial equipment. Stainless steel, aluminium alloy and nickel-plated brass housings are all available on the same footprint, so you pick the finish to match the panel without re-cutting the hole.
Technical Specifications
Item | Specification |
Mounting hole diameter | 22 mm |
Contact configuration | 1 NO + 1 NC (11) |
Head shape | Flat round |
Operation | Momentary (spring return) |
Illumination | Non-illuminated |
Termination | Plug-in pin (J) |
Protection degree | IP65 / IP67 (dust-tight and water-jet resistant) |
Rated voltage / current | 250 V AC, 5 A / 10 A / 18 A (by configuration) |
Mechanical life | >= 1,000,000 operations |
Electrical life | >= 200,000 operations |
Contact resistance | <= 50 mOhm |
Insulation resistance | >= 1000 MOhm |
Dielectric strength | 1500 V AC, 50 Hz, 1 minute |
Vibration resistance | 50 Hz, amplitude approx. 1.2 mm |
Shock resistance | > 10 g |
Solder heat resistance | 320 C (or 30 W iron) for max. 2 s |
Contact structure | Double-break slow-action contact |
Ambient temperature | -25 C to +55 C (no icing) |
Ambient humidity | 45 to 85 %RH (no condensation) |
Housing material | Stainless steel, aluminium alloy or nickel-plated brass (by order code) |
LED (illuminated types) | Bi-directional LED, AC/DC 6-220 V, approx. 15 mA, 40,000 h |
Ratings are series-level figures from the product brochure. Exact ratings for your configuration, LED colour and voltage are confirmed on the spec sheet during the RFQ.
Design Features
- Metal housing in stainless steel, aluminium alloy or nickel-plated brass - pick the finish that suits the panel without changing the cutout
- Double-break slow-action contact: two contact gaps in series, so the arc is split and contact life is extended
- Contact resistance <= 50 mOhm and insulation resistance >= 1000 MOhm for stable signal and control-circuit duty
- IP65 / IP67 at the panel face - sealed against dust and water jets for washdown and outdoor installations
- Rated for -25 C to +55 C and 45-85 %RH, 1500 V AC dielectric strength for one minute
Applications
Industrial machinery, control cabinets, automation panels, agricultural and construction equipment, marine helm stations and outdoor equipment.
