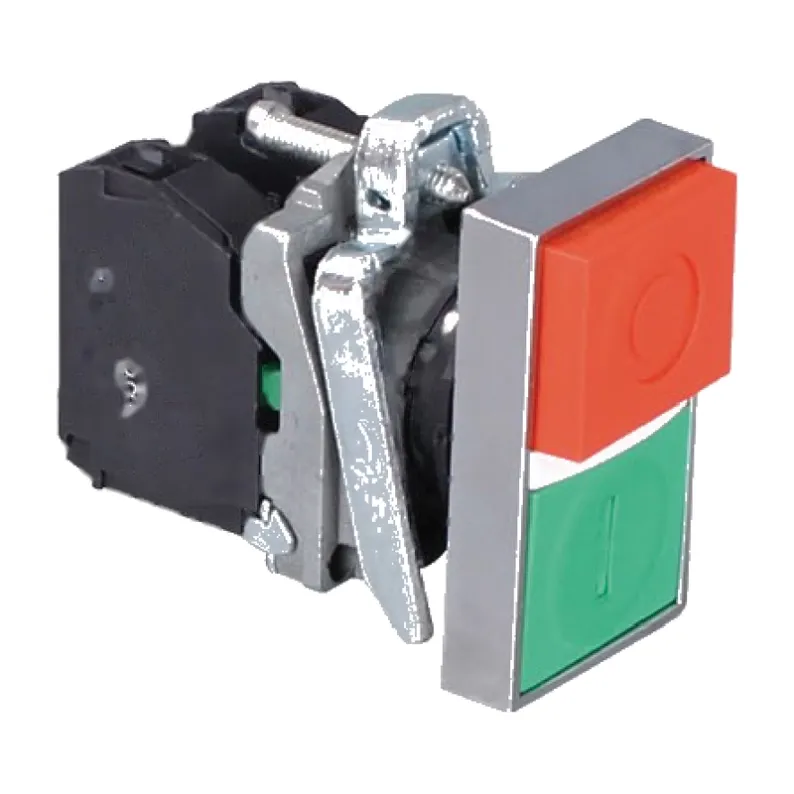

ALX-HB4-BL83 Double Head Push Button Switch | 22mm 1NO+1NC
22 mm double head push button switch: two caps in one 22 mm body, 1 NO plus 1 NC contact, momentary action, red/green or green/red cap order, zinc alloy chrome bezel, screw terminals, 600 V AC 10 A.
The HB4-BL83 packs a start and a stop function into a single 22 mm hole: two caps sit side by side in one bezel, one wired normally-open and one normally-closed. On a panel with limited space that halves the number of holes and keeps the pair of commands where the operator expects them, next to each other.
Technical Specifications
Item | Specification |
Mounting hole | 22 mm (22.3 mm cutout) |
Bezel / head material | Zinc alloy, chrome plated |
Contact housing | Plastic |
Contact configuration | 1 NO + 1 NC |
Operation | Momentary, both caps spring return |
Actuator | Two heads in one bezel, 22 mm |
Actuator colour | Red + green (or green + red) |
Illumination | None |
Rated voltage / current | 600 V AC, 10 A (AC-15 duty) as marked on the contact block |
Termination | Screw terminals |
Caps | Two independent caps, one 1 NO and one 1 NC |
BL8325 has the red cap on the left and green on the right; BL8425 reverses the order. Both caps are spring return.
Design Features
- Two actuators in one 22 mm cutout, which halves the panel drilling compared with separate start and stop buttons
- One normally-open and one normally-closed contact in the same body, so a start/stop pair needs a single wiring point
- Caps are mechanically independent: pressing one does not move the other
- Chrome-plated zinc alloy bezel with metal clamping ring, sized to the standard 22 mm hole
- Contact blocks clip on separately, so either side can be replaced without removing the bezel
Model Options
Model | Cap order | Contact |
HB4-BL8325 | Red left, green right | 1 NO + 1 NC |
HB4-BL8425 | Green left, red right | 1 NO + 1 NC |
State the cap order when ordering; both versions carry the same contact combination.
Applications
Compact operator stations, pump and fan control panels, small machine enclosures and retrofit panels where space at the front is limited.
