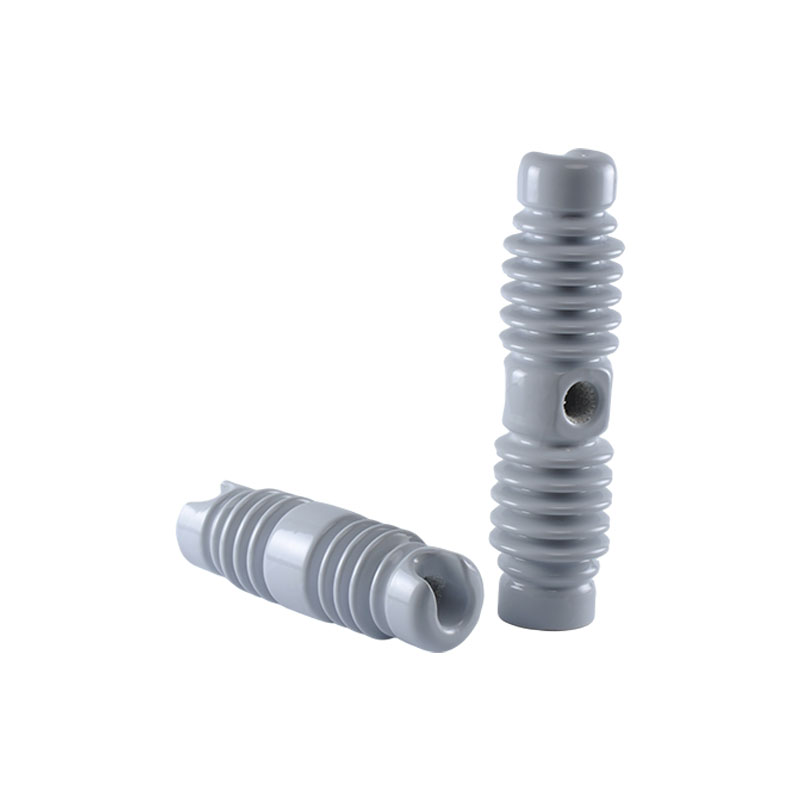

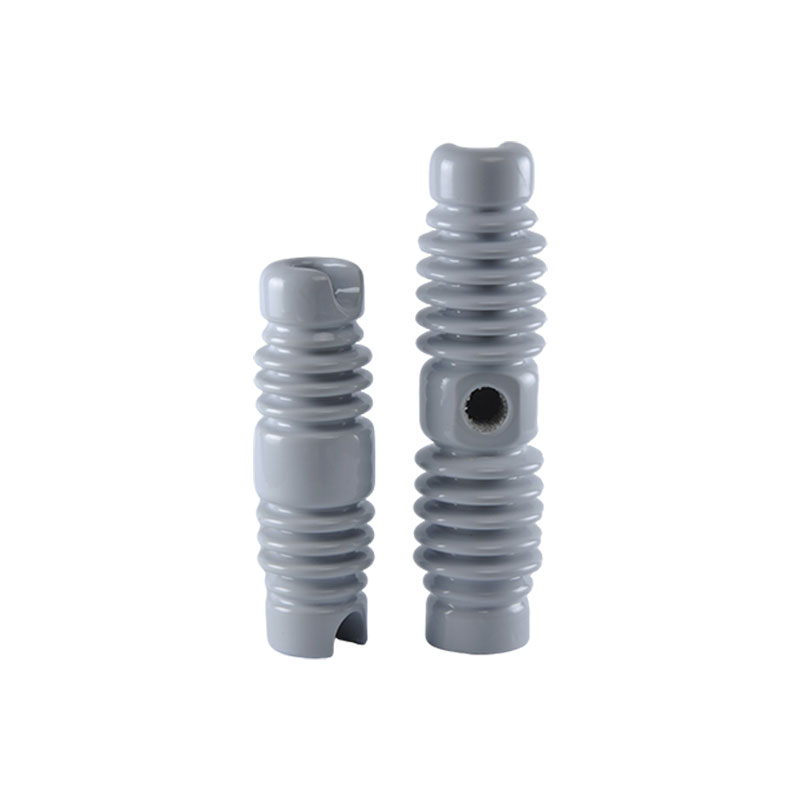

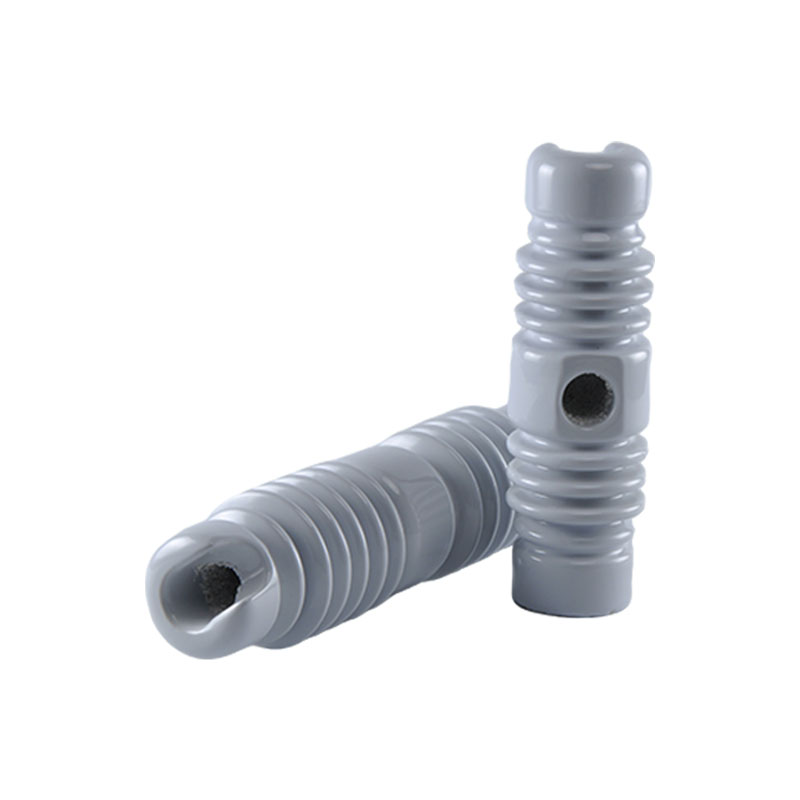

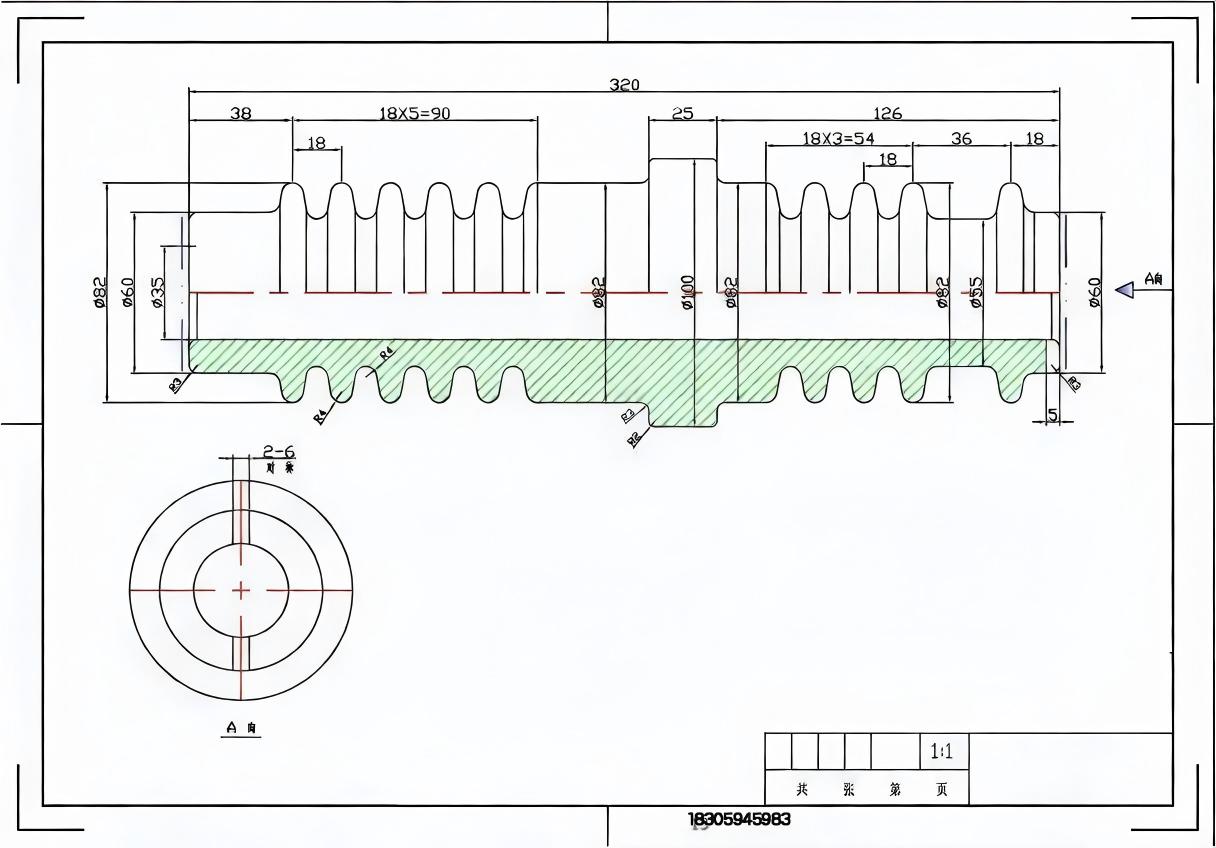

15kV-33kV Pocelain Fuse Cut out Bushing Insulator

Ceramic (porcelain) bushings serve as critical "gateways" and "bridges" in the power system, fulfilling three essential functions: electrical insulation, mechanical support, and environmental sealing. They ensure the safe passage of high-voltage conductors through grounded enclosures or walls, making them indispensable components for the secure and stable operation of power grid equipment.

Contact Us
15kV-33kV Fuse Cut out Bushing Insulator
Product classification:
Transformer bushing




Fuse Porcelain bushing(IEC ANSIAS)
Figure no

72101
72102
72103
72201
72202
72203
72204
72205
72206
72207
72208
72209
72210
722301
722302
Cat.No.

1
1
1
2
2
2
2
3
4
5
4
4
4
6
6
Main Dimension
Diameter(D)
mm
287
287
287
376
375
376
376
376
375
467
376
365
375
467
467
Diameter(d)
mm
87
90
105
90
96
87
102
131
129
96
127
150
155
130
121
Height
mm
32
32
32
32
35
32
35
35
32
32
32
35
35
35
32
Creepage distance
mm
220
240
255
300
340
280
360
470
460
432
450
500
550
660
660
Electrical Values
Voltage class
kv
15
15
15
25
25
25
25
24/27
24/27
25/27
24/27
24/27
25/27
33/36
33/36
Cantilever strength
kv
18
18
20
10/12.5
10
10
10
10
10
6.8/10
10
10
10
6.8/10
6.8/10
Packing and Shipping Data
Net weight,approximate
kg
2.6
2.8
3.2
3.5
3.7
3.4
3.9
5.8
6.0
5.2
5.8
6.5
6.9
7.5
7.5
Shed number

8
8
8
12
12
12
12
12
10
17
10
10
10
16
16
